16870 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) MOWER HOUSING ASSEMBLY-MODEL 16870 Parts Diagram

Walk-Behind Mower

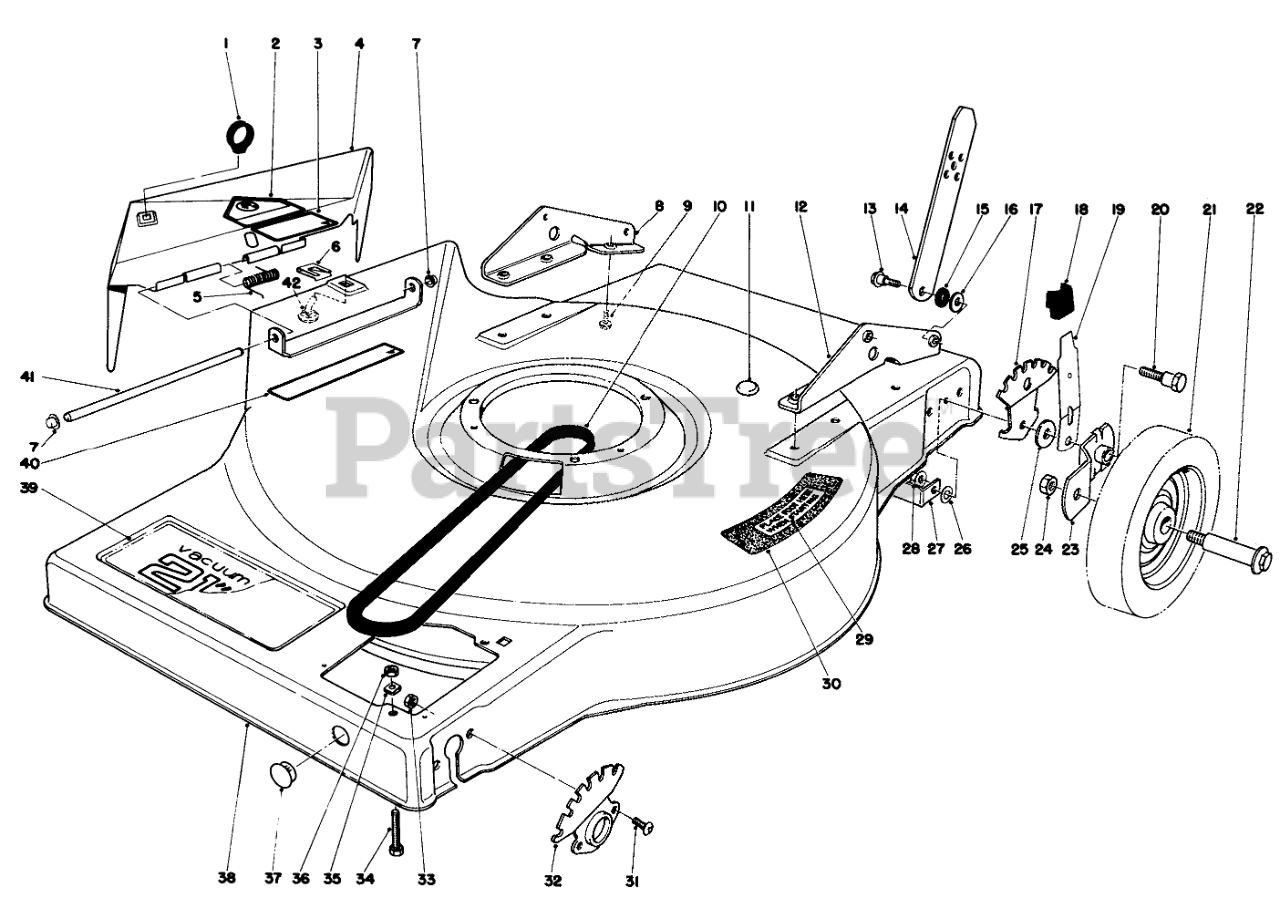

MOWER HOUSING ASSEMBLY-MODEL 16870 Parts Diagram

  • Title
1

Toro Part# 28-1430

LIFT LOOP
Usually ships in 5 to 8 days

$

$3.62

0

2

Toro Part# 39-5770

DECAL-DANGER
Usually ships in 1 day

$

$6.35

0

3

Toro Part# 39-9130

DECAL DEFLECTOR
Usually ships same day

Not available

$

$

4

Toro Part# 36-6390

DefIector
(Superseded to 11-8579)
Usually ships in 5 to 8 days

$

$92.65

0

5

Toro Part# 28-1560

TORSION SPRING
Usually ships same day

Not available

$

$

6

Toro Part# 28-3250

BAG CHUTE CLIP PIN
Usually ships in 5 to 8 days

$

$5.79

0

7

Toro Part# 32112-1

PUSHNUT-CAP, WASHER
Usually ships in 5 to 8 days

$

$4.92

0

8

Toro Part# 36-6320

Bracket Handle R.H.
Usually ships same day

Not available

$

$

9

Toro Part# 32144-11

SCREW-HWHTF
Usually ships in 1 day

$

$6.16

0

10
Usually ships in 1 day

$

$19.00

0

Usually ships same day

Not available

$

$

12

Toro Part# 36-6310

Bracket-L.H.
Usually ships same day

Not available

$

$

13

Toro Part# 5-2490

SCREW-SHOULDER
Usually ships in 5 to 8 days

$

$7.68

0

14

Toro Part# 38-5090

Handle Latch
(Superseded to 27-7080)
Usually ships in 5 to 8 days

$

$18.21

0

15
Usually ships in 1 day

$

$3.30

0

16

Toro Part# 3256-23

WASHER-PLAIN
Usually ships in 1 day

$

$1.93

0

17
Usually ships same day

Not available

$

$

18
Usually ships in 1 day

$

$4.46

0

19

Toro Part# 25-8000

SPRING ARM ASM
Usually ships in 1 day

$

$54.32

0

20

Toro Part# 36-6670

PIVOT SCREW
Usually ships in 5 to 8 days

$

$11.90

0

21

Toro Part# 12-2620

Wheel Assembly
(Superseded to 99-5256)
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

23

Toro Part# 24-7710

PIVOT ARM ASM A
Usually ships in 5 to 8 days

$

$114.61

0

Toro Part# 23-9120

PIVOT ARM ASM B

Note: Not illustrated

Usually ships same day

Not available

$

$

24

Toro Part# 32146-6

Nut
(Superseded to 3296-6)
Usually ships in 1 day

$

$1.44

0

25

Toro Part# 33-0390

PIVOT WASHER
Usually ships in 1 day

$

$2.64

0

26

Toro Part# 5-1350

WASHER
(Superseded to 5-4460)
Usually ships in 1 day

$

$5.56

0

27

Toro Part# 36-6830

DECK SUPPORT
Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$2.44

0

29

Toro Part# 36-2820

Decal Step Pad
Usually ships same day

Not available

$

$

30
Usually ships same day

Not available

$

$

31

Toro Part# 3274-44

Capscrew-Button Hd.
Usually ships same day

Not available

$

$

32

Toro Part# 36-7930

QUADRANT S.P.
Usually ships same day

Not available

$

$

33

Toro Part# 32152-1

NUT-LOCK, CONE
Usually ships in 1 day

$

$1.44

0

Usually ships same day

Not available

$

$

35

Toro Part# 37-7370

SPEED NUT
Usually ships same day

Not available

$

$

36
Usually ships in 1 day

$

$1.22

0

37

Toro Part# 2410-52

Hole Plug
Usually ships same day

Not available

$

$

38
Usually ships same day

Not available

$

$

39

Toro Part# 39-9110

Decal-Deck
Usually ships same day

Not available

$

$

40

Toro Part# 39-9120

DECAL CAUTION
(Superseded to 104-8589)
Usually ships in 1 day

$

$4.67

0

41

Toro Part# 36-6350

DEFLECTOR PIVOT ROD
Usually ships same day

Not available

$

$

42

Toro Part# 28-3260

BAG CHUTE PIN
Usually ships in 5 to 8 days

$

$5.47

0

Toro Part# 8-9959

Loose Parts Bag

Note: Not illustrated

Usually ships same day

Currently unavailable

$

$
