16870 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) MOWER HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

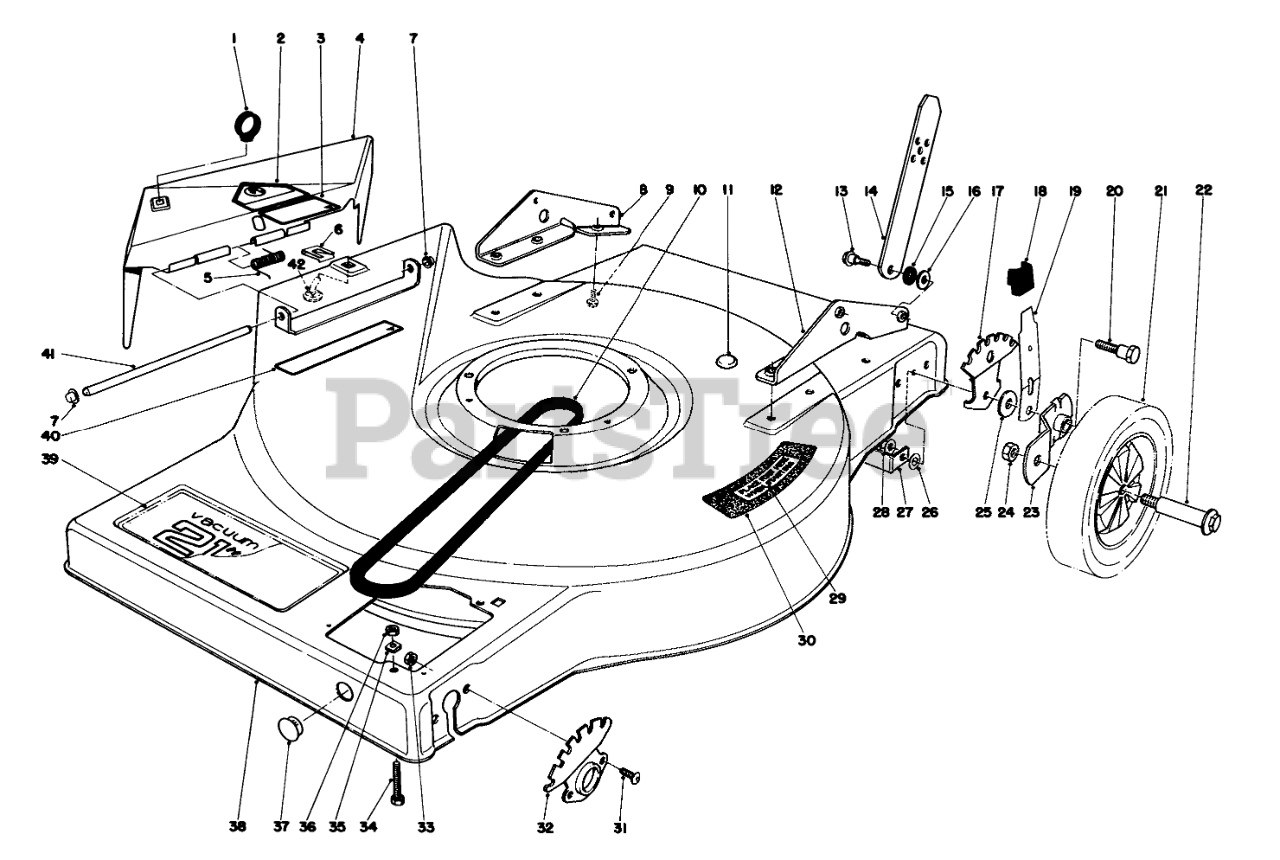

MOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 28-1430

LIFT LOOP

$

$

Not available

2

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

3

Toro 39-9130

DECAL DEFLECTOR

$

$

Not available

4

Toro 8-8539

Deflector (Incl. Ref. #2 & 3)
(Superseded to 11-8579)

$119.99

$

Usually ships in 3-6 days

0

5

Toro 28-1560

TORSION SPRING

$

$

Not available

6

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

7

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 36-6320

Bracket Handle R.H.

$

$

Not available

9

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

10

Toro 36-8070

V-BELT

$15.99

$

In Stock, Qty 20+

0

11

Toro 2410-54

PLUG

$

$

Not available

12

Toro 36-6310

Bracket-L.H.

$

$

Not available

13

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

14

Toro 38-5090

Handle Latch
(Superseded to 27-7080)

$22.99

$

Usually ships in 3-6 days

0

15

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 364780

Washer

$

$

Currently unavailable

18

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 12

0

19

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

20

Toro 36-6670

PIVOT SCREW

$

$

Not available

21

Toro 34-0390

Wheel & Tire Assembly
(Superseded to 27-6200)

$

$

Not available

22

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

23

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

Toro 23-9120

PIVOT ARM ASM B

Note: Not illustrated

$

$

Not available

24

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

25

Toro 33-0390

PIVOT WASHER

$3.49

$

In Stock, only 2 left!

0

26

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

27

Toro 36-6830

DECK SUPPORT

$

$

Not available

28

Toro 32128-30

NUT

$2.99

$

Usually ships in 3-6 days

0

29

Toro 36-2820

Decal Step Pad

$

$

Not available

30

Toro 37-0030

PAD STEP

$

$

Not available

31

Toro 3274-44

Capscrew-Button Hd.

$

$

Not available

32

Toro 36-7930

QUADRANT S.P.

$

$

Not available

33

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

34

Toro 3-7281

SCREW

$

$

Not available

35

Toro 37-7370

SPEED NUT

$

$

Not available

36

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

37

Toro 2410-52

Hole Plug

$

$

Not available

38

Toro 8-7779

Housing

$

$

Not available

39

Toro 39-9110

Decal-Deck

$

$

Not available

40

Toro 39-9120

DECAL CAUTION
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

41

Toro 36-6350

DEFLECTOR PIVOT ROD

$

$

Not available

42

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

Toro 8-9959

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
