1687372 - Simplicity Tilt Steering Kit for Legacy XL & Prestige Series Tilt Steering Kit - Legacy XL & Prestige Series Parts Diagram

Tilt Steering Kit for Legacy XL & Prestige Series

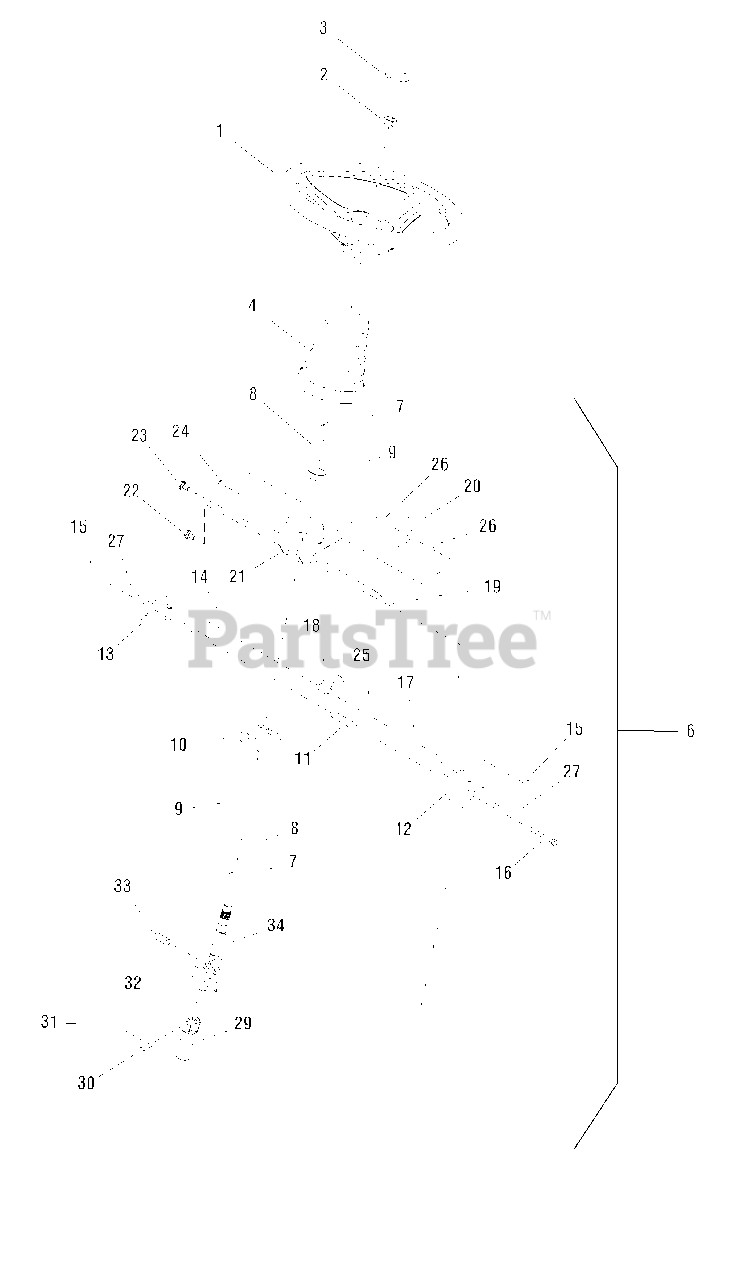

Tilt Steering Kit - Legacy XL & Prestige Series Parts Diagram

  • Title

1

Simplicity 1733363SM

STEERING WHEEL

$100.99

$

In Stock, only 1 left!

0

2

Simplicity 1960576SM

NUT, Hex, 5/16-18

$5.99

$

In Stock, Qty 9

0

3

Simplicity 1725024SM

CAP, Steering Wheel

$7.49

$

Usually ships in 2-12 days

0

4

Simplicity 1724368SM

BELLOWS
(Superseded to 1737551YP)

$26.99

$

Usually ships in 2-12 days

0

6

Simplicity 1734002SM

TILT STEERING ASSEMBLY

Note: (Includes Ref. Nos 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24 ,25, 26, 27,29, 30, 31, 32, 33, 34

$

$

Not available

7

Simplicity 1611710SM

KLIP RING

$4.49

$

In Stock, Qty 17

0

8

Simplicity 1960114SM

WASHER, 3/4
(Superseded to 703151)

$3.49

$

In Stock, Qty 17

0

9

Simplicity 1666425SM

BUSHING, 3/4

$20.99

$

In Stock, only 2 left!

0

10

Simplicity 1733927BMYP

BRACKET, Lower Tilt

$

$

Not available

11

Simplicity 1733929

SPACER

$

$

Not available

12

Simplicity 1733983AYP

BRACKET, Tilt, Right

$

$

Not available

13

Simplicity 1733984AYP

BRACKET, Tilt, Left

$

$

Not available

14

Simplicity 1734001

SPRING, Torsion

$

$

Not available

15

Simplicity 1960636

NUT, Keps Lock, 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

16

Simplicity 50250010X24

CAPSCREW, 1/4-20 x 3

$

$

Not available

17

Simplicity 734008

ROD, Latch Pivot

$

$

Not available

18

Simplicity 1734000

LATCH, Tilt

$

$

Not available

19

Simplicity 1923282

CAPSCREW, 1/4-20 x 2-1/2
(Superseded to 703821)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1733990

QUADRANT, Tilt

$

$

Not available

21

Simplicity 1733926BM

SUPPORT, Tilt Steering, Top

$

$

Not available

22

Simplicity 1733985

BOLT, Shoulder

$

$

Not available

23

Simplicity 1927429

SCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 1923358

NUT, Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 1734381

SPACER

$

$

Not available

26

Simplicity 1733928

SPACER

$

$

Not available

27

Simplicity 1960674

NUT, Push-Pal
(Superseded to 703826)

$3.49

$

In Stock, Qty 17

0

29

Simplicity 1733987

SHAFT ASSEMBLY, Bottom

$

$

Not available

30

Simplicity 1933999

CLEVIS PIN

$

$

Not available

31

Simplicity 1923360

COTTER PIN
(Superseded to 703892)

$3.49

$

In Stock, Qty 5

0

32

Simplicity 1733991

PIVOT, Square

$

$

Not available

33

Simplicity 1733992

PIVOT, Tilt

$

$

Not available

34

Simplicity 1733986

SHAFT ASSEMBLY, Top

$

$

Not available

--

Simplicity 1687372

KIT, Tilt Steering
(Superseded to 1687680YP)

$

$

Not available
