1687680 - Snapper Tilt Steering Kit for Snapper Legacy & Prestige Series Tilt Steering Kit Parts Diagram

Tilt Steering Kit for Snapper Legacy & Prestige Series

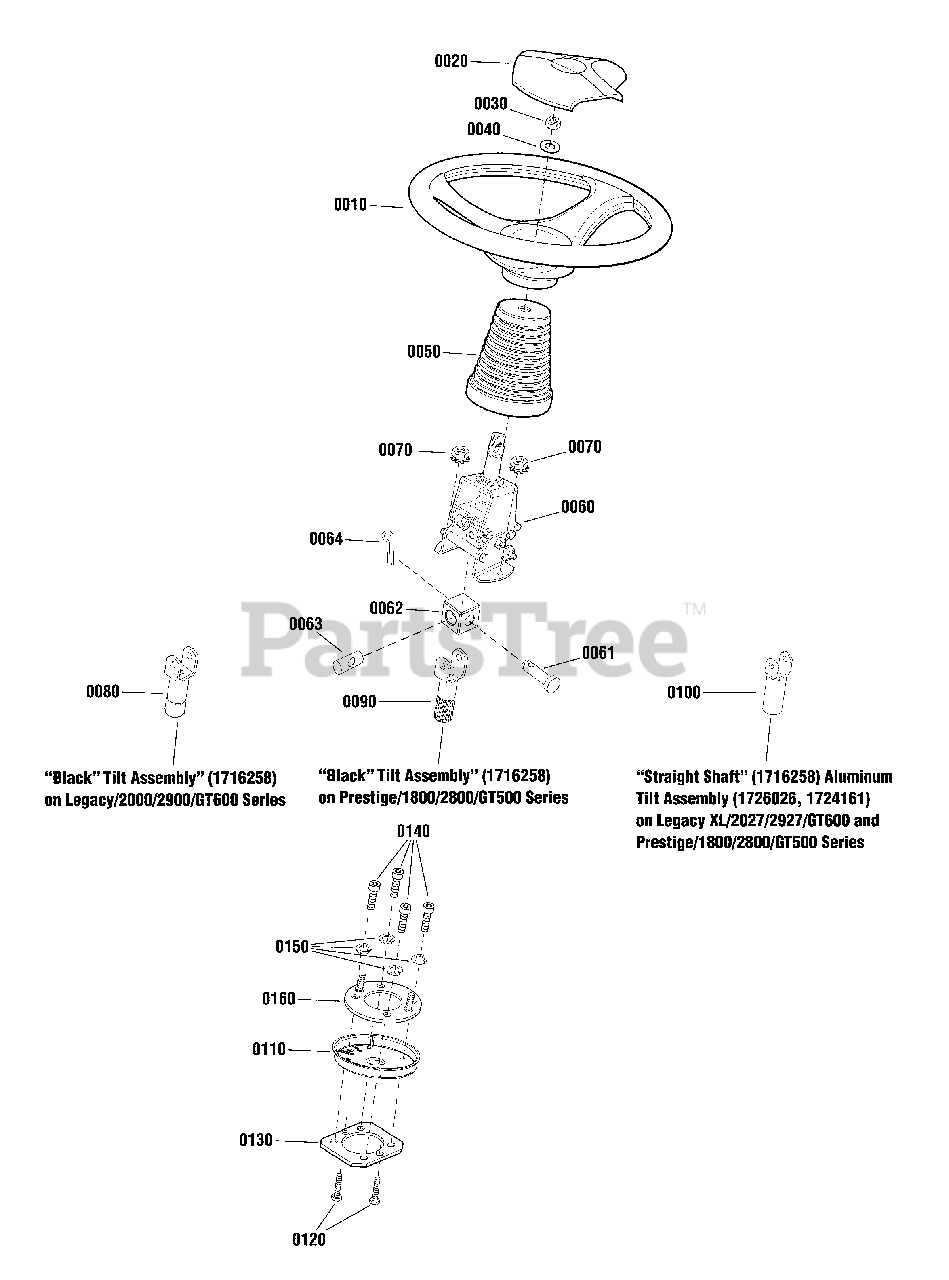

Tilt Steering Kit Parts Diagram

  • Title

0010

Snapper 1737240SM

STEERING WHEEL

$

$

Not available

0020

Snapper 1737243SM

CAP, Steering Wheel

$

$

Not available

0030

Snapper 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 9

0

0040

Snapper 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 1737551SM

BELLOWS

$

$

Not available

0060

Snapper 1754811YP

TILT STEERING ASSEMBLY
(Superseded to 1734002SM)

$

$

Not available

0061

Snapper 1733999YP

PIN, Clevis

$3.49

$

Usually ships in 2-12 days

0

0062

Snapper 1733991YP

JOINT, U

$11.99

$

Usually ships in 2-12 days

0

0063

Snapper 1733392YP

SHAFT, Pin

$

$

Not available

0064

Snapper 703892

PIN, Cotter, 1/16 x3/4

$3.49

$

In Stock, Qty 5

0

0070

Snapper 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0080

Snapper 1754648YP

ADAPTER, Tilt Steering, Legacy

$159.99

$

Usually ships in 2-12 days

0

0090

Snapper 1754637YP

ADAPTER, Tilt Steering, Prestige

$199.99

$

Usually ships in 2-12 days

0

0100

Snapper 1733987YP

ADAPTER, Tilt Steering, Bottom

$8.49

$

Usually ships in 2-12 days

0

0110

Snapper 1730166SM

MOUNTING PLATE
(Superseded to 1730166ASM)

$41.99

$

Usually ships in 2-12 days

0

0120

Snapper 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 12

0

0130

Snapper 1730169SM

MOUNTING PLATE
(Superseded to 1730169ASM)

$5.99

$

Usually ships in 2-12 days

0

0140

Snapper 1960742SM

SCREW, M6 x 1 x 30

$3.99

$

Usually ships in 2-12 days

0

0150

Snapper 1916964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

0160

Snapper 1730113ASM

PLATE, Mounting & Screws

$37.99

$

Usually ships in 2-12 days

0

--

Snapper 1687680YP

TILT STEERING KIT

$

$

Not available
