1687782 YP - Snapper Belt Conversion Kit for 42" Mower Deck Belt Conversion Kit Parts Diagram

Belt Conversion Kit for 42" Mower Deck

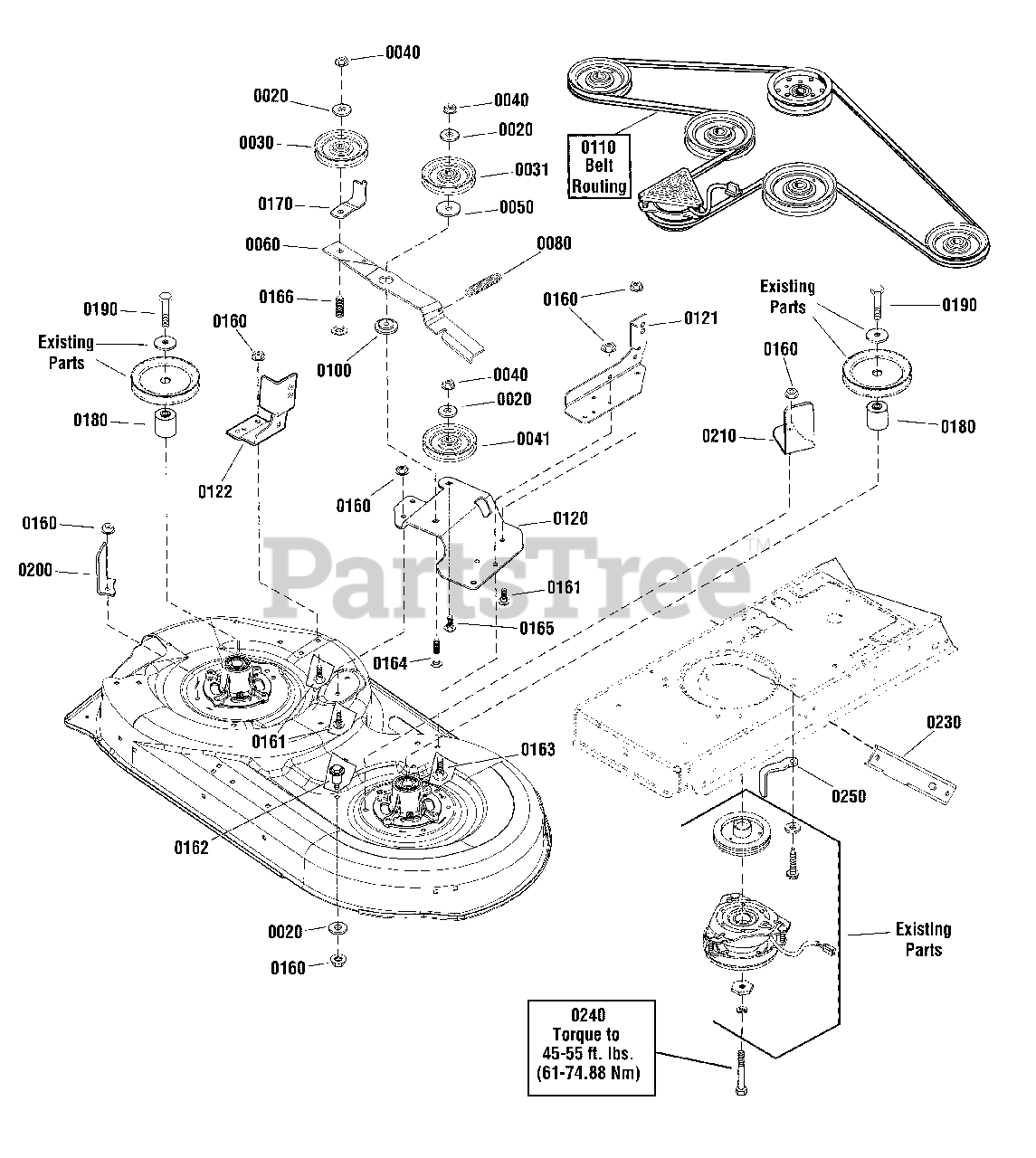

Belt Conversion Kit Parts Diagram

  • Title

0020

Snapper 704128

WASHER, Flat

$4.99

$

In Stock, Qty 6

0

0030

Snapper 7018574SM

IDLER, Flat, 4 1/8

$38.99

$

In Stock, only 4 left!

0

0031

Snapper 1757894YP

PULLEY, Flat Idler, 4.5"

$42.99

$

In Stock, only 2 left!

0

0040

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0041

Snapper 885937YP

PULLEY, Idler 4.00

$34.99

$

In Stock, only 1 left!

0

0050

Snapper 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 9

0

0060

Snapper 706127

ARM, Idler

$52.99

$

In Stock, only 1 left!

0

0080

Snapper 1734316SM

SPRING, Extension, 7.88 LG

$11.99

$

In Stock, only 3 left!

0

0100

Snapper 706128

SPACER, Idler

$6.99

$

Usually ships in 2-12 days

0

0110

Snapper 1757811YP

V-BELT, HA, 122.3

$75.99

$

In Stock, only 2 left!

0

0120

Snapper 706129

BRACKET, Idler Support

$87.99

$

Usually ships in 2-12 days

0

0121

Snapper 706130

SUPPORT, Mower, LH

$58.99

$

Usually ships in 2-12 days

0

0122

Snapper 1757825BMYP

SUPPORT, Mower, RH

$37.99

$

Usually ships in 2-12 days

0

0160

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0161

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0162

Snapper 1732412SM

BOLT, Shoulder, 5/16-18 x 5/8

$15.99

$

Usually ships in 2-12 days

0

0163

Snapper 704065

BOLT, Carriage Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 12

0

0164

Snapper 1960615SM

BOLT, Carriage, 3/8-16 X 2 1/2

$5.49

$

Usually ships in 2-12 days

0

0165

Snapper 703858

BOLT, Carriage, 3/8-16 X 1 3/4

$4.99

$

In Stock, Qty 5

0

0166

Snapper 7900009SM

BOLT, Carriage, 3/8-16 X 2 1/4

$3.99

$

In Stock, only 1 left!

0

0170

Snapper 706131

GUARD, Spring

$16.99

$

In Stock, only 2 left!

0

0180

Snapper 1736445YP

SPACER, Pulley

$13.99

$

In Stock, only 2 left!

0

0190

Snapper 703171

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, GR5

$3.99

$

In Stock, Qty 5

0

0200

Snapper 1757826BMYP

BRACKET, Upstop

$12.99

$

Usually ships in 2-12 days

0

0210

Snapper 1757824BMYP

BRACKET, Upstop

$15.99

$

Usually ships in 2-12 days

0

0230

Snapper 1758146BMYP

ARM, Rear Lift

$28.99

$

Usually ships in 2-12 days

0

0240

Snapper 1960649SM

CAPSCREW, Hex Head, 7/16-20 X 3 1/2, G5

$7.49

$

Usually ships in 2-12 days

0

0250

Snapper 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, only 1 left!

0

--

Snapper 1687782YP

KIT, Belt Coversion

$268.99

$

Usually ships in 2-12 days

0
