16880 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY (MODEL NO. 16880) Parts Diagram

Walk-Behind Mower

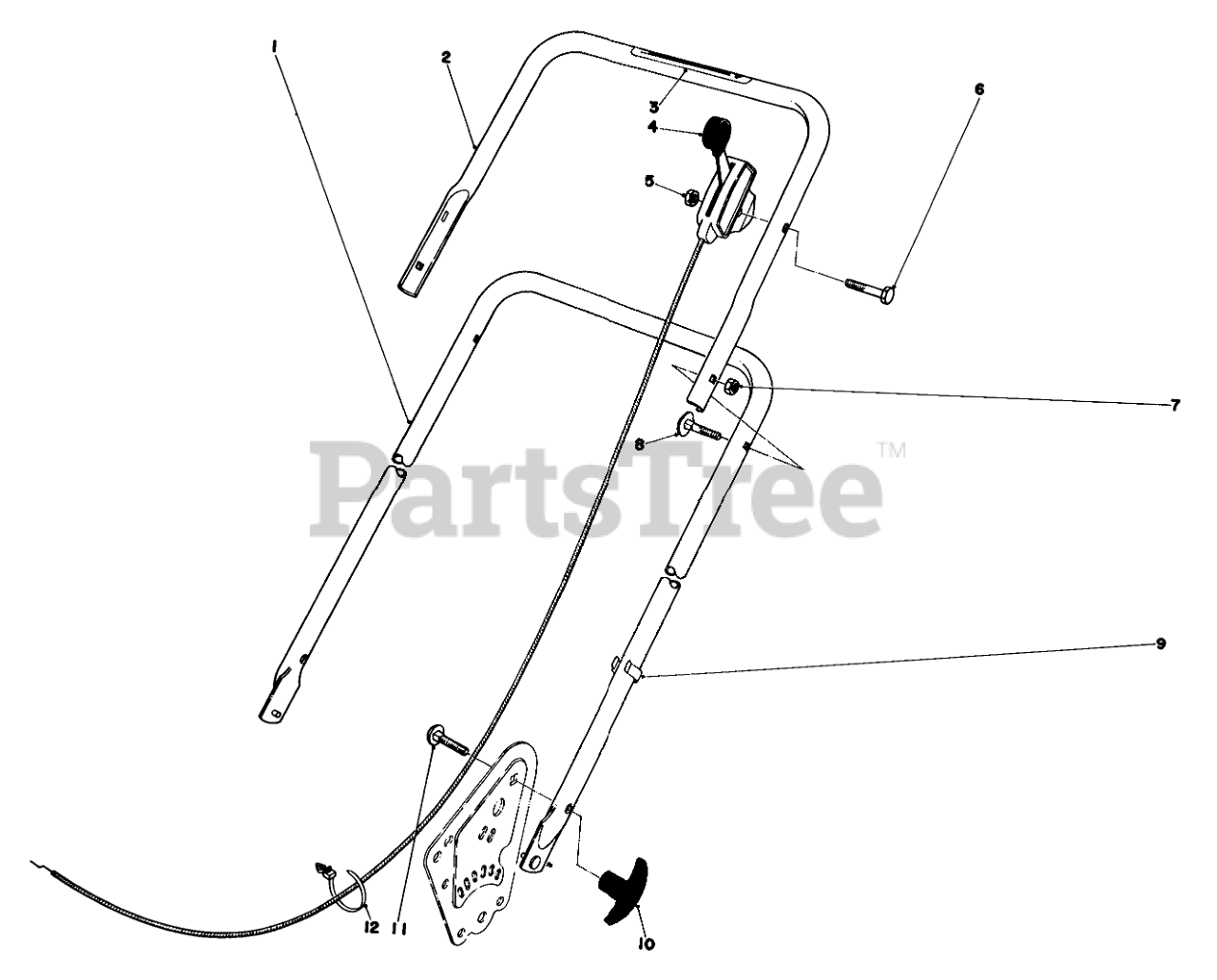

HANDLE ASSEMBLY (MODEL NO. 16880) Parts Diagram

  • Title

1

Toro 38-0810

Lower Handle

$

$

Not available

2

Toro 38-0620

Upper Handle

$

$

Not available

3

Toro 29-6290

Decal

$

$

Not available

4

Toro 33-2536

Throttle Control
(Superseded to 46-6000)

$53.99

$

Usually ships in 3-6 days

0

5

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

6

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

8

Toro 6-6330

HANDLE SCREW

$

$

Not available

9

Toro 218-466

CLIP

$

$

Not available

10

Toro 233-41

KNOB

$

$

Not available

11

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 10

0

12

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

Toro 8-9989

Loose Parts Bag

Note: Not illustrated

$

$

Not available
