16890 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) Briggs Stratton Engine Model No. 92908-2055-01 Parts Diagram

Walk-Behind Mower

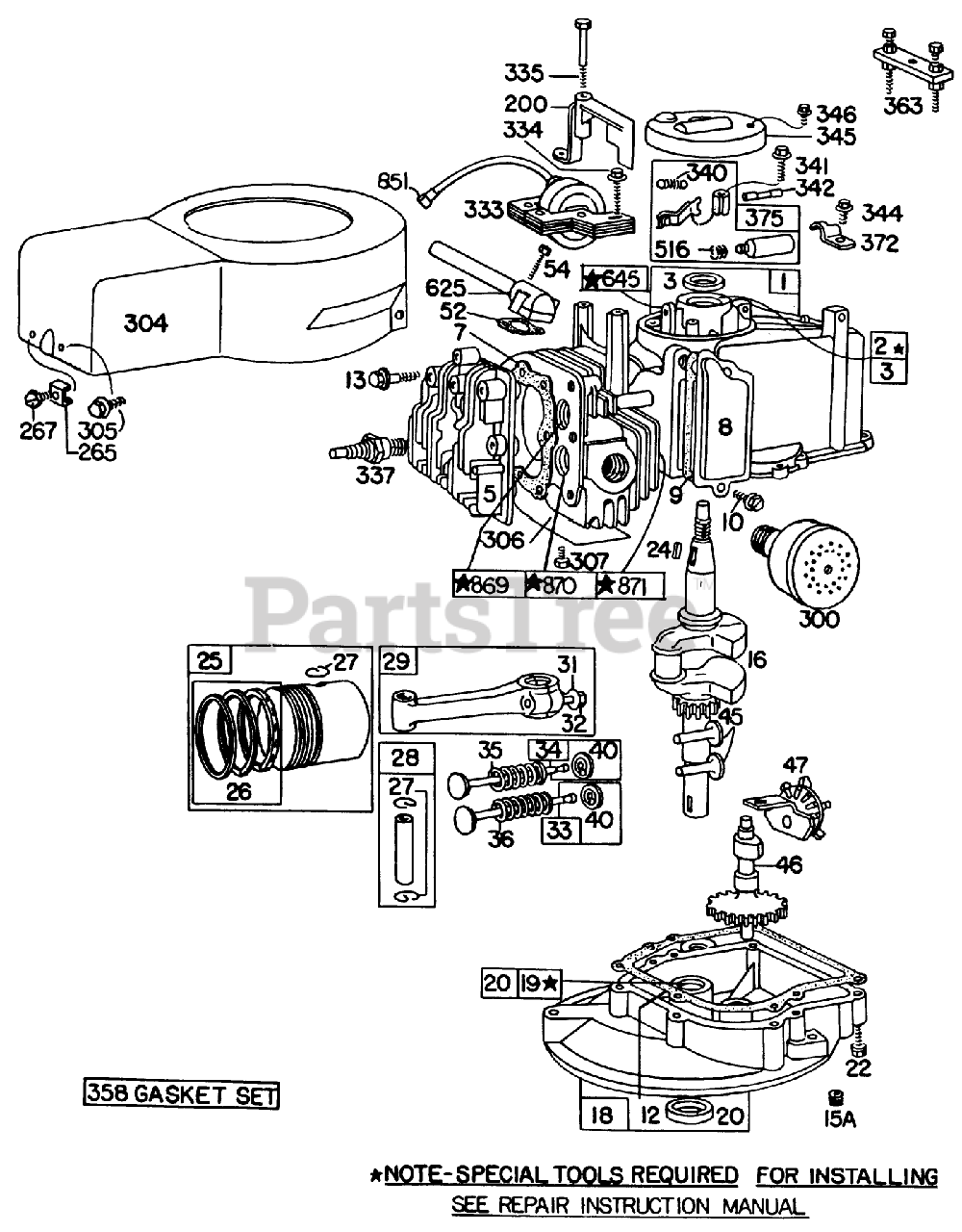

Briggs Stratton Engine Model No. 92908-2055-01 Parts Diagram

  • Title

1

Toro 298988

Cylinder

$

$

Currently unavailable

2

Toro 293708

Bushing

Note: Requires special tools for installation.

$

$

Currently unavailable

3

Toro 299819

Seal-Oil

$

$

Currently unavailable

5

Toro 211479

Head Cylinder

$

$

Currently unavailable

7

Toro 270341

Gasket-Cylinder Hd.

$

$

Currently unavailable

8

Toro 298383

Breather-Valve

$

$

Currently unavailable

9

Toro 270239

Gasket Valve Cover

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

12

Toro 270833

Gasket-Crankcase-.015" thick

Note: Note: Special tools required for installing. See repair instruction manual.

$

$

Currently unavailable

Toro 270895

Gasket-Crankcase .005"

Note: Note: Special tools required for installing. See repair instruction manual.

$

$

Currently unavailable

Toro 270896

Gasket-Crankcase .009"

Note: Note: Special tools required for installing. See repair instruction manual.

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

15A

Toro 93418

Plug

$

$

Currently unavailable

16

Toro 261417

Crankshaft

$

$

Currently unavailable

18

Toro 390810

Sump-Oil

$

$

Currently unavailable

19

Toro 293709

Bushing-Oil Base

Note: Requires special tools for installation.

$

$

Currently unavailable

20

Toro 391483

Seal-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

24

Toro 61760

Key Flywheel

$

$

Currently unavailable

25

Toro 298904

Piston Assy.-Std.

$

$

Currently unavailable

Toro 298905

Piston Assy.-010"O.S.

$

$

Currently unavailable

Toro 298906

Piston Assy.-020"O.S.

$

$

Currently unavailable

Toro 298907

Piston Assy. .030" O.S.

$

$

Currently unavailable

26

Toro 298982

Ring Set (Std.)

Note: For Chrome Piston Ring Set-Standard Size-Order Part No. 299742.

$

$

Currently unavailable

Toro 298983

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 298984

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 298985

Lock-Piston Pin

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 294201

Rod Assy., Conn.

Note: For Connecting Rod W/.020" Undersize Crankpin Bore-Order No. 296079.

$

$

Currently unavailable

31

Toro 220756

Lock, Conn Rod Screw

$

$

Currently unavailable

32

Toro 92296

Screw, Conn.Rod

$

$

Currently unavailable

33

Toro 296676

Valve Exhaust

$

$

Currently unavailable

34

Toro 296677

Valve Intake

$

$

Currently unavailable

35

Toro 290552

Spring-Intake Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 230173

Tappet-Valve

$

$

Not available

46

Toro 210453

Gear-Cam
(Superseded to 740280)

$23.99

$

Usually ships in 3-6 days

0

47

Toro 294652

Oil Slinger Gear Bracket

$

$

Currently unavailable

52

Toro 270345

Gasket-Intake Elbow

$

$

Currently unavailable

54

Toro 93485

Screw Intake Elbow Mtg.

$

$

Currently unavailable

200

Toro 68388

Blade Governor

$

$

Currently unavailable

265

Toro 22372

Clamp-Casing

$

$

Currently unavailable

267

Toro 93469

Screw

$

$

Currently unavailable

300

Toro 391435

Muffler-Exhaust

$

$

Currently unavailable

304

Toro 390279

Housing-Blower

$

$

Currently unavailable

305

Toro 93559

Screw

$

$

Currently unavailable

306

Toro 221805

Shield Cylinder

$

$

Not available

307

Toro 93490

Screw

$

$

Currently unavailable

333

Toro 298502

Armature-Magneto

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

335

Toro 93435

Screw-Armature Governor Blade

$

$

Currently unavailable

337

Toro 293918

Plug-Spark

$

$

Currently unavailable

340

Toro 26018

Spring Breaker Arm

$

$

Currently unavailable

341

Toro 93381

Screw

$

$

Currently unavailable

342

Toro 65704

Plunger

$

$

Currently unavailable

344

Toro 93042

Screw

$

$

Currently unavailable

345

Toro 220366

Cover Breaker Pt. Cond.

$

$

Currently unavailable

346

Toro 93705

Screw

$

$

Currently unavailable

358

Toro 298989

Gasket Set

$

$

Currently unavailable

363

Toro 19069

Puller-Flywheel

$

$

Currently unavailable

372

Toro 220477

Camp-Condenser

$

$

Currently unavailable

375

Toro 294628

Set

$

$

Currently unavailable

516

Toro 260374

Spring Connector

$

$

Currently unavailable

625

Toro 298775

Tube Intake

$

$

Currently unavailable

645

Toro 23513

Bushing-Plunger

$

$

Currently unavailable

851

Toro 221798

Terminal-Cable

$

$

Currently unavailable

869

Toro 210879

Seat-Intake Valve

Note: For Installation Options See Repair Manual.

$

$

Currently unavailable

870

Toro 211291

Seat-Exhaust Valve

Note: For Installation Options See Repair Manual.

$

$

Currently unavailable

871

Toro 63709

Bushing-Guide

$

$

Currently unavailable
