16890 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) Mower Housing (model No. 16890) Parts Diagram

Walk-Behind Mower

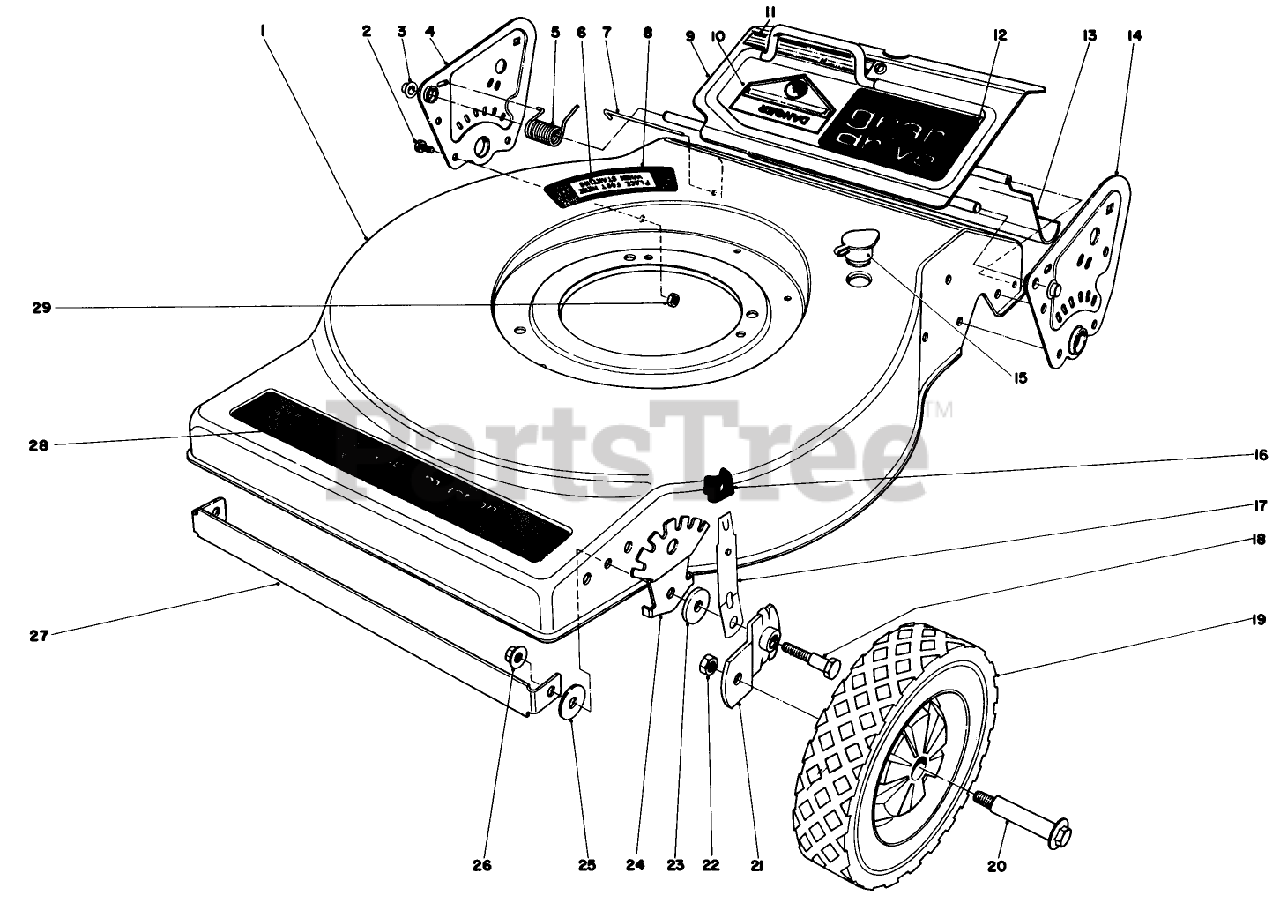

Mower Housing (model No. 16890) Parts Diagram

  • Title

1

Toro 8-7789

DISCONTINUED

$

$

Not available

2

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

3

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, Qty 20+

0

4

Toro 37-1450

DISCONTINUED

$

$

Not available

5

Toro 37-9420

DISCONTINUED

$

$

Not available

6

Toro 36-2820

DISCONTINUED

$

$

Not available

7

Toro 33-3204

DISCONTINUED

$

$

Not available

8

Toro 37-0030

DISCONTINUED

$

$

Not available

9

Toro 38-0700

DISCONTINUED

$

$

Not available

10

Toro 39-5770

DECAL-DANGER

$10.99

$

In Stock, Qty 6

0

11

Toro 39-9090

DISCONTINUED

$

$

Not available

12

Toro 39-9100

See Supercession: 40-2240
(Superseded to 40-2240)

$

$

Not available

13

Toro 36-6330

DISCONTINUED

$

$

Not available

14

Toro 37-1440

DISCONTINUED

$

$

Not available

15

Toro 6-4500

WASHOUT PLUG

$

$

Not available

16

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

17

Toro 25-8000

SPRING ARM ASM

$

$

Not available

18

Toro 36-6670

PIVOT SCREW

$

$

Not available

19

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

20

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

21

Toro 24-7710

PIVOT ARM ASM A

$171.99

$

Usually ships in 3-6 days

0

Toro 23-9120

PIVOT ARM ASM

Note: Not illustrated

$

$

Not available

22

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

23

Toro 33-0390

PIVOT WASHER

$4.49

$

In Stock, only 2 left!

0

24

Toro 36-6780

DISCONTINUED

$

$

Not available

25

Toro 5-1350

See Supercession: 5-4460
(Superseded to 5-4460)

$8.49

$

In Stock, only 1 left!

0

26

Toro 32128-30

NUT

$

$

Not available

27

Toro 36-6830

DISCONTINUED

$

$

Not available

28

Toro 39-9060

DISCONTINUED

$

$

Not available

29

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

Toro 8-6949

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
