16890 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY (MODEL NO. 16890) Parts Diagram

Walk-Behind Mower

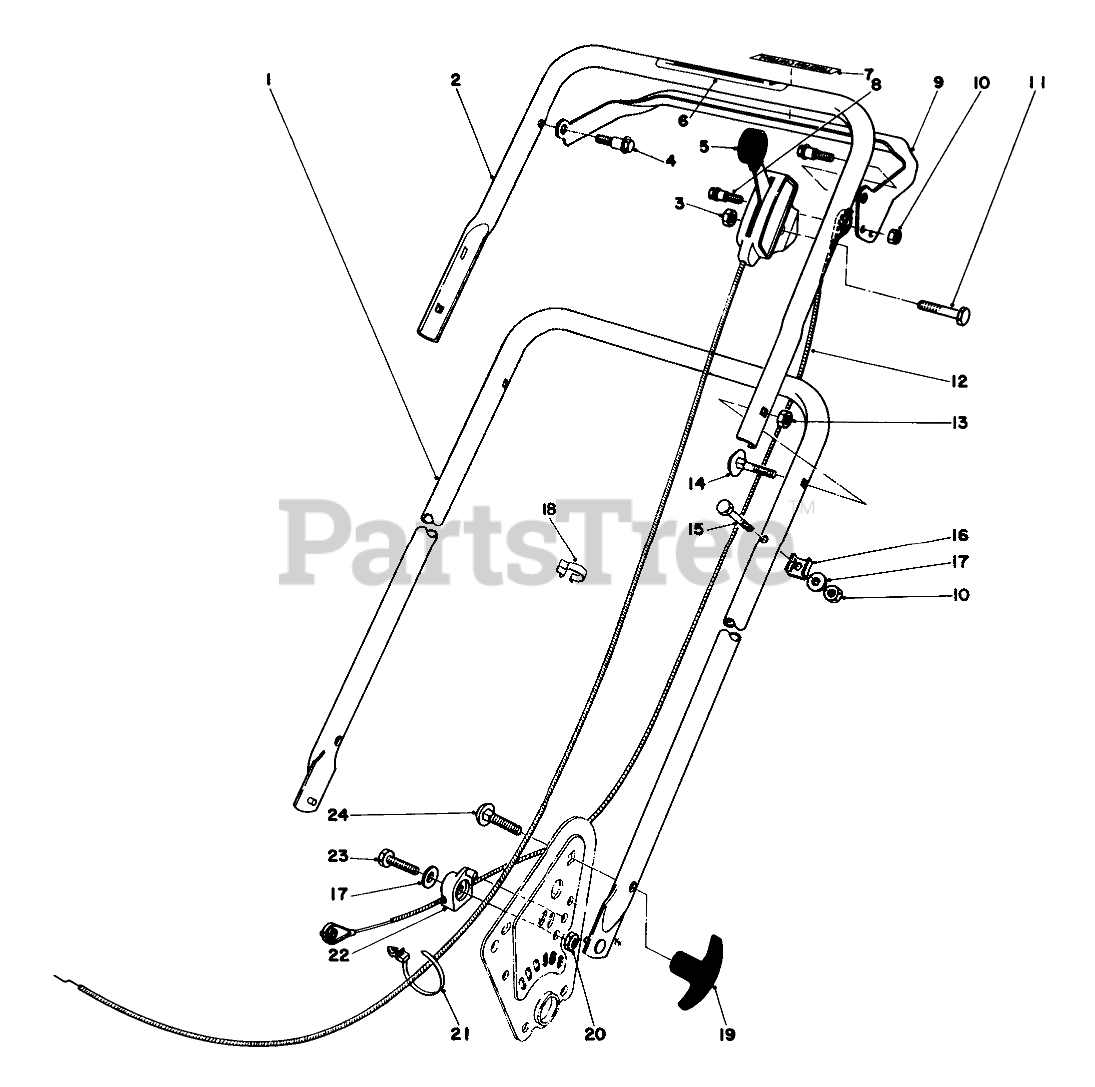

HANDLE ASSEMBLY (MODEL NO. 16890) Parts Diagram

  • Title
1

Toro Part# 38-0810

Lower Handle
Usually ships same day

Not available

$

$

2

Toro Part# 38-0620

Upper Handle
Usually ships same day

Not available

$

$

3

Toro Part# 32146-17

NUT-LOCK
(Superseded to 3296-42)
Usually ships in 1 day

$

$0.40

0

4

Toro Part# 26-5620

Shoulder Bolt
(Superseded to 43-7260)
Usually ships in 5 to 8 days

$

$13.24

0

5

Toro Part# 33-2536

Throttle Control
(Superseded to 46-6000)
Usually ships in 1 day

$

$34.43

0

Usually ships same day

Not available

$

$

7

Toro Part# 38-5150

Decal-Traction Control
Usually ships same day

Not available

$

$

8

Toro Part# 42-3560

BOLT-SHOULDER
Usually ships in 1 day

$

$4.90

0

9

Toro Part# 37-4480

Squeeze Lever
Usually ships same day

Not available

$

$

10

Toro Part# 3296-42

NUT-LOCK, NI
Usually ships in 1 day

$

$0.40

0

11
Usually ships in 1 day

$

$1.00

0

12

Toro Part# 29-9502

DEMAND HAND CABLE
Usually ships in 5 to 8 days

$

$75.60

0

13

Toro Part# 32146-5

Nut
(Superseded to 32153-3)
Usually ships in 5 to 8 days

$

$4.98

0

14

Toro Part# 6-6330

HANDLE SCREW
Usually ships same day

Not available

$

$

15

Toro Part# 321-9

SCREW-HH
Usually ships in 1 day

$

$4.25

0

16

Toro Part# 29-9550

CLAMP-CABLE
Usually ships same day

Not available

$

$

17

Toro Part# 3256-1

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

18

Toro Part# 218-465

BOWDEN CLIP
Usually ships in 5 to 8 days

$

$5.32

0

Usually ships same day

Not available

$

$

20

Toro Part# 32152-4

NUT-LOCK, CONE
Usually ships in 1 day

$

$1.22

0

21

Toro Part# 3290-410

TIE-MOUNT, PUSH
Usually ships in 5 to 8 days

$

$4.67

0

22

Toro Part# 38-6400

CABLE BOSS
Usually ships same day

Not available

$

$

23

Toro Part# 321-7

SCREW-HH
Usually ships in 1 day

$

$3.82

0

24

Toro Part# 32304

Bolt-Carriage
Usually ships same day

Currently unavailable

$

$

Toro Part# 11-0109

Loose Parts Bag

Note: Not illustrated

Usually ships same day

Currently unavailable

$

$
