1690023 - Simplicity 36" Mower Deck 36" Mower Deck Group Parts Diagram

36" Mower Deck

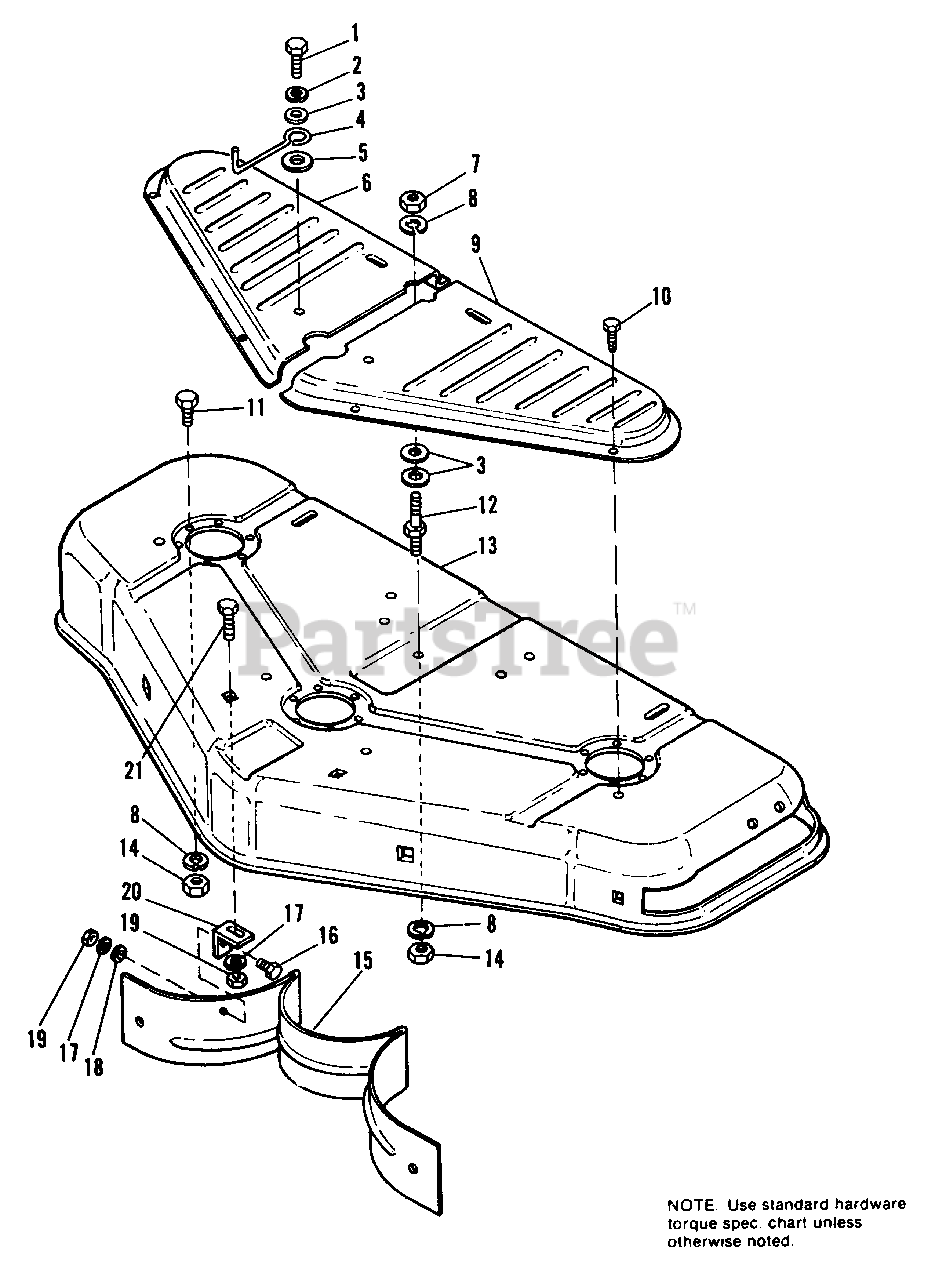

36" Mower Deck Group Parts Diagram

  • Title

1

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

4

Simplicity 2161080SM

STOP, Bell

$29.99

$

In Stock, only 1 left!

0

5

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

6

Simplicity 1651375

COVER, Half, L.H.

$

$

Not available

7

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

9

Simplicity 1651376

COVER, Half, R.H.

$

$

Not available

10

Simplicity 2822123

SCREW, Hex, Self Tapping, 1/4-20 x 3/8

$

$

Not available

11

Simplicity 2821965

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$

$

Not available

12

Simplicity 2108372SM

STUD

$46.99

$

Usually ships in 2-12 days

0

13

Simplicity 2103301SM

HOUSING, 36"

$270.99

$

Usually ships in 2-12 days

0

14

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

15

Simplicity 2108500SM

BAFFLE, Mower
(Superseded to 2108500ASM)

$77.99

$

Usually ships in 2-12 days

0

16

Simplicity 921956

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

17

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

18

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

19

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

20

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

21

Simplicity 2825592SM

SCREW, Self Tapping, Hex Hd., 1/4-20 x 7/8

$2.99

$

Usually ships in 2-12 days

0
