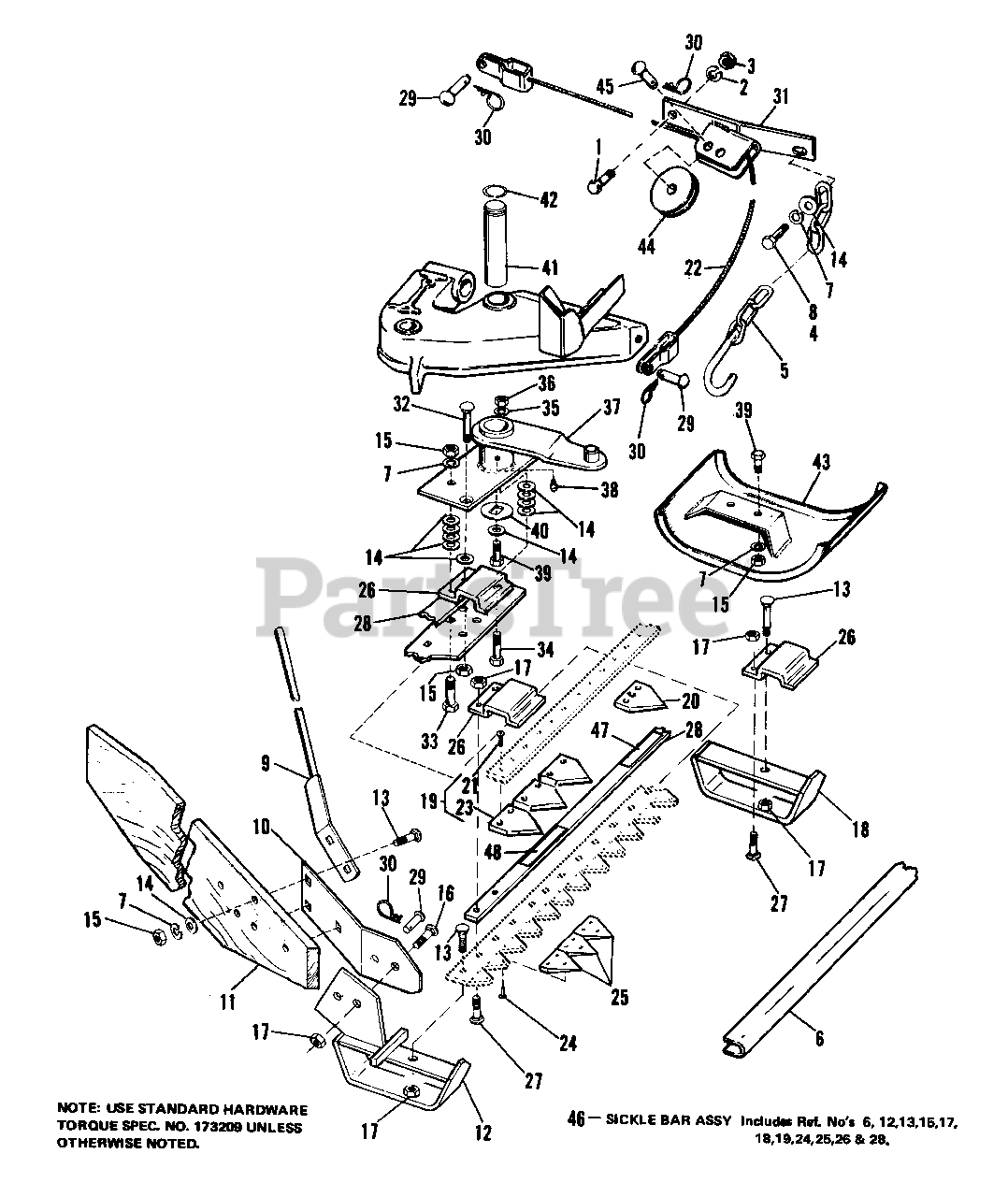

1690030 - Simplicity 46" Sickle Bar Sickle Group Parts Diagram

46" Sickle Bar

Sickle Group Parts Diagram

  • Title

1

Simplicity 2816431

CAPSCREW, Hex Hd., /16-18 x 1

$

$

Not available

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

5

Simplicity 101085

CHAIN & HOOK ASSY

$

$

Not available

6

Simplicity 1653122

SHIELD, Knife

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

8

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

9

Simplicity 101079

ROD ASSY, Divider

$

$

Not available

10

Simplicity 174557

SUPPORT, Divider Board

$

$

Not available

11

Simplicity 101078

BOARD, Divider

$

$

Not available

12

Simplicity 1651959

SHOE ASSY, Outer

$

$

Not available

13

Simplicity 2819444

BOLT, Carriage, 3/8-16 x 1-1/2

$

$

Not available

14

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 2823428

NUT, Hex, Full, 3/8-16

$

$

Not available

16

Simplicity 108766

BOLT, Shoulder, 3/8-16 x 1

$

$

Not available

17

Simplicity 2823428

LOCKNUT, Hex, 3/8-16

$

$

Not available

18

Simplicity 1651958

SHOE ASSY, Center

$

$

Not available

19

Simplicity 1653942

KNIFE ASSY, Riveted

$

$

Not available

20

Simplicity 1651967

KNIFE, Section, 3 Hole

$

$

Not available

21

Simplicity 1651970

RIVET, Flat, No. 6 x 1/2

$

$

Not available

22

Simplicity 2101116

CABEL ASSY

$

$

Not available

23

Simplicity 1651966

KNIFE, Section, 2 Hole

$

$

Not available

24

Simplicity 1651971

SCREW, Self-Tapping

$

$

Not available

25

Simplicity 1651962

PLATE, Ledger, Smooth

$

$

Not available

26

Simplicity 1651964

CLIP, Hold Down

$

$

Not available

27

Simplicity 2821933

BOLT, Carriage, 3/8-17 x 1-1/4

$

$

Not available

28

Simplicity 1651963

STRAP, Wear

$

$

Not available

29

Simplicity 1708298SM

PIN

$

$

Not available

30

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

31

Simplicity 101112

MOUNTING ASSY, Pulley

$

$

Not available

32

Simplicity 922112

BOLT, Plow, 3/8-16 x 1-3/4

$

$

Not available

33

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

34

Simplicity 2823027

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

$

$

Not available

35

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

36

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

37

Simplicity 101043

LEVER ASSY, Cutter Bar

$

$

Not available

38

Simplicity 2814687

FITTING, Grease

$

$

Not available

39

Simplicity 2807731

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

40

Simplicity 101049

WASHER, Special

$

$

Not available

41

Simplicity 101031

SHAFT, Cutter Bar

$

$

Not available

42

Simplicity 2154291SM

RING, Retaining

$6.99

$

Usually ships in 2-12 days

0

43

Simplicity 1651980

SHOE ASSY

$

$

Not available

44

Simplicity 101115

PULLEY

$

$

Not available

45

Simplicity 2102004SM

PIN, Pivot

$9.49

$

In Stock, only 3 left!

0

46

Simplicity 1651969

BAR ASSY, Sickle (Incl. Ref. No's. 6, 12, 13, 15, 17, 18, 19, 24, 25, 26, & 28)

$

$

Not available

47

Simplicity 101120

DECAL, Safety First

$

$

Not available

48

Simplicity 101121

DECAL, Engine Shut Off

$

$

Not available
