1690032 - Simplicity 42" Snow Thrower Attachment 36" & 42" Snowthrower-Body & Rotor Group Parts Diagram

42" Snow Thrower Attachment

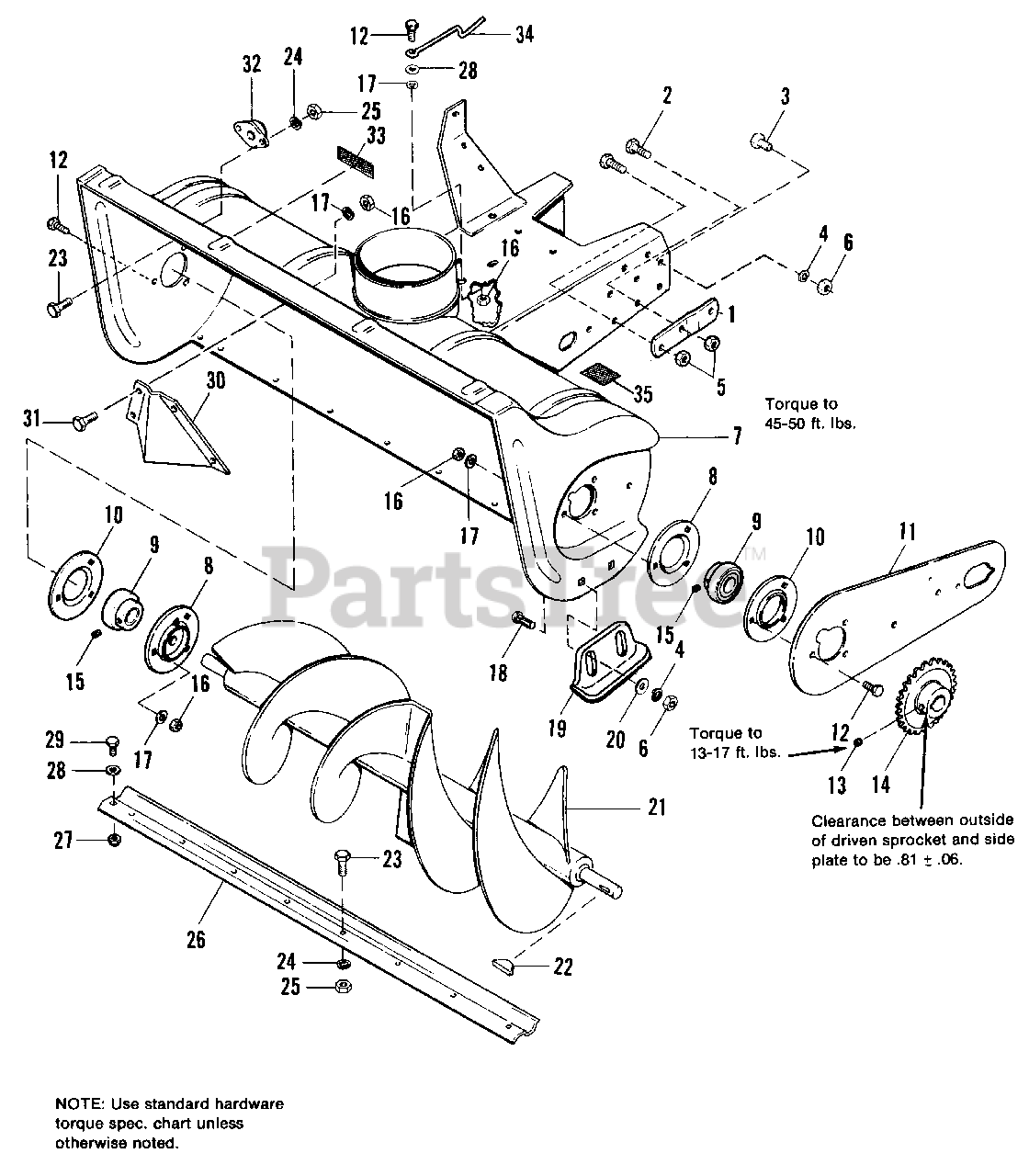

36" & 42" Snowthrower-Body & Rotor Group Parts Diagram

  • Title

1

Simplicity 2177565ASM

CLIP, Frame

$14.99

$

In Stock, only 2 left!

0

2

Simplicity 1920676SM

CAPSCREW, Hex Hd., 7/16-14 x 1

$5.49

$

In Stock, only 2 left!

0

3

Simplicity 1922586SM

CAPSCREW, Hex Hd., 3/8-16 x 5/8

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

5

Simplicity 1930650SM

LOCKNUT, Flange, 2-Way Lock, 7/16-14

$5.49

$

In Stock, Qty 15

0

6

Simplicity 1916950SM

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 10

0

7

Simplicity 1713541A

BODY & FRAME ASSY., (36" only)
(Superseded to 1713541ASM)

$655.99

$

Usually ships in 2-12 days

0

7

Simplicity 1713542A

BODY & FRAME ASSY., (42" only)

$

$

Not available

8

Simplicity 2172279ASM

FLANGE, Bearing, w/Fitting

$15.99

$

In Stock, only 2 left!

0

9

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$61.99

$

In Stock, Qty 6

0

10

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, only 2 left!

0

11

Simplicity 2171221

PLATE, Side

$

$

Not available

12

Simplicity 1917397

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

13

Simplicity 1918691

SETSCREW, Socket Hd., 5/16-18 x 5/16

$

$

Not available

14

Simplicity 2106653SM

SPROCKET

$104.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960617SM

SETSCREW, 1/4-28 x 1/4

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 3 left!

0

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

18

Simplicity 1931348SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1713424ASM

SKID

$57.99

$

Usually ships in 2-12 days

0

20

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 2106856

ROTOR ASSY. (36" only)

$

$

Not available

21

Simplicity 2106748

ROTOR ASSY. (42" only)

$

$

Not available

22

Simplicity 2151040SM

KEY, Hi-Pro

$9.99

$

In Stock, only 2 left!

0

23

Simplicity 1921959SM

CAPSCREW, 1/4-20 x 5/8 (Qty. 9 on 36" only)
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 10

0

24

Simplicity 1916964SM

LOCKWASHER, 1/4 (Qty. 9 on 36" only)
(Superseded to 704133)

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 1916622SM

NUT, Hex, 1/4-20 (Qty. 9 on 36" only)
(Superseded to 703127)

$3.49

$

In Stock, Qty 15

0

26

Simplicity 2106863ASM

SCRAPER, Body (36" only)

$226.99

$

Usually ships in 2-12 days

0

26

Simplicity 2106746ASM

SCRAPER, Body (42" only)

$168.99

$

In Stock, only 2 left!

0

27

Simplicity 1923362SM

LOCKNUT, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8, Gr. 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

30

Simplicity 2106774ASM

DEFLECTOR

$31.99

$

Usually ships in 2-12 days

0

31

Simplicity 913318

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

32

Simplicity 2171388SM

BEARING

$12.99

$

In Stock, only 1 left!

0

33

Simplicity 2161247

DECAL, Safety

$

$

Not available

34

Simplicity 1650226

STOP, Belt

$

$

Not available

35

Simplicity 1716532SM

DECAL, Danger

$13.99

$

Usually ships in 2-12 days

0
