1690033 - Simplicity 36" Snow Thrower Attachment 36" & 42" Snowthrower-Spout & Lift Group Parts Diagram

36" Snow Thrower Attachment

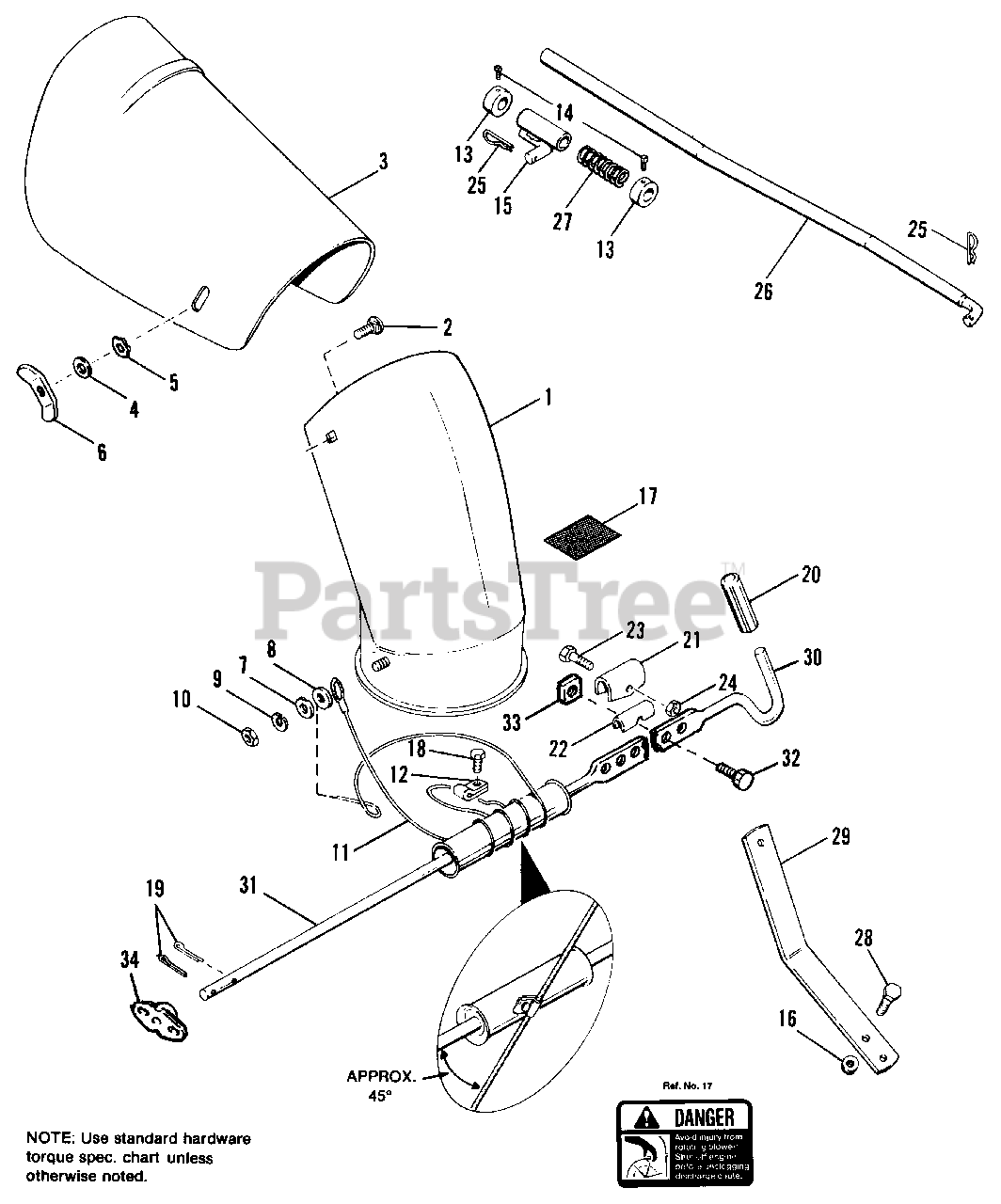

36" & 42" Snowthrower-Spout & Lift Group Parts Diagram

  • Title

1

Simplicity 1666172

SPOUT ASSY.

$

$

Not available

2

Simplicity 1920582

CARRIAGE BOLT, 5/16-18 x 3/4

$

$

Not available

3

Simplicity 106760

EXTENSION, Spout

$

$

Not available

4

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1930665SM

LOCKWASHER, Dished, 3/8

$1.99

$

Usually ships in 2-12 days

0

6

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

7

Simplicity 2171379SM

WASHER, Cup

$5.49

$

Usually ships in 2-12 days

0

8

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2171362SM

CABLE ASSY.

$29.99

$

In Stock, only 1 left!

0

12

Simplicity 2171382SM

CLAMP

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1729258SM

COLLAR, Set
(Superseded to 5010477YP)

$8.99

$

Usually ships in 2-12 days

0

14

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 13

0

15

Simplicity 2171679SM

GUIDE ASSY., Rod

$76.99

$

Usually ships in 2-12 days

0

16

Simplicity 1930645SM

NUT, Flange, 3/8
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Simplicity 1722674SM

DECAL, Danger

$14.99

$

Usually ships in 2-12 days

0

18

Simplicity 1929000SM

SCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

$

$

Not available

20

Simplicity 2176933SM

GRIP, Handle

$3.49

$

In Stock, only 1 left!

0

21

Simplicity 2152050SM

GUIDE, Rod

$9.49

$

Usually ships in 2-12 days

0

22

Simplicity 2121175SM

LINER, Guide

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921977SM

CAPSCREW, Hex, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 16

0

24

Simplicity 1923362SM

LOCKNUT, Hex, Full, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 12

0

25

Simplicity 2106788

CLIP, Spring

$

$

Not available

26

Simplicity 171680

ROD, Front Lift

$

$

Not available

27

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

28

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

29

Simplicity 2177567

ARM SUPPORT

$

$

Not available

30

Simplicity 1713483

HANDLE, Spout Control
(Superseded to 1713483ASM)

Note: Early style one-piece spout control handles can be replaced with Service Kit Part No. 1686618 which Includes Ref. Nos. 30-34.

$113.99

$

Usually ships in 2-12 days

0

31

Simplicity 1713417ASM

ROD ASSY., Spout Control

Note: Early style one-piece spout control handles can be replaced with Service Kit Part No. 1686618 which Includes Ref. Nos. 30-34.

$114.99

$

Usually ships in 2-12 days

0

32

Simplicity 1923325SM

CAPSCREW, Hex Hd., 5/16-18 x 7/8
(Superseded to 703408)

Note: Early style one-piece spout control handles can be replaced with Service Kit Part No. 1686618 which Includes Ref. Nos. 30-34.

$4.99

$

In Stock, Qty 20+

0

33

Simplicity 1935048SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 704067)

Note: Early style one-piece spout control handles can be replaced with Service Kit Part No. 1686618 which Includes Ref. Nos. 30-34.

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 2171388SM

BEARING, Self-Align, 1/2 I.D.

Note: Early style one-piece spout control handles can be replaced with Service Kit Part No. 1686618 which Includes Ref. Nos. 30-34.

$11.99

$

In Stock, only 1 left!

0
