1690034 - Simplicity 32" Snow Thrower Attachment 32" Snowthrower Hitch (5008, 5010) Parts Diagram

32" Snow Thrower Attachment

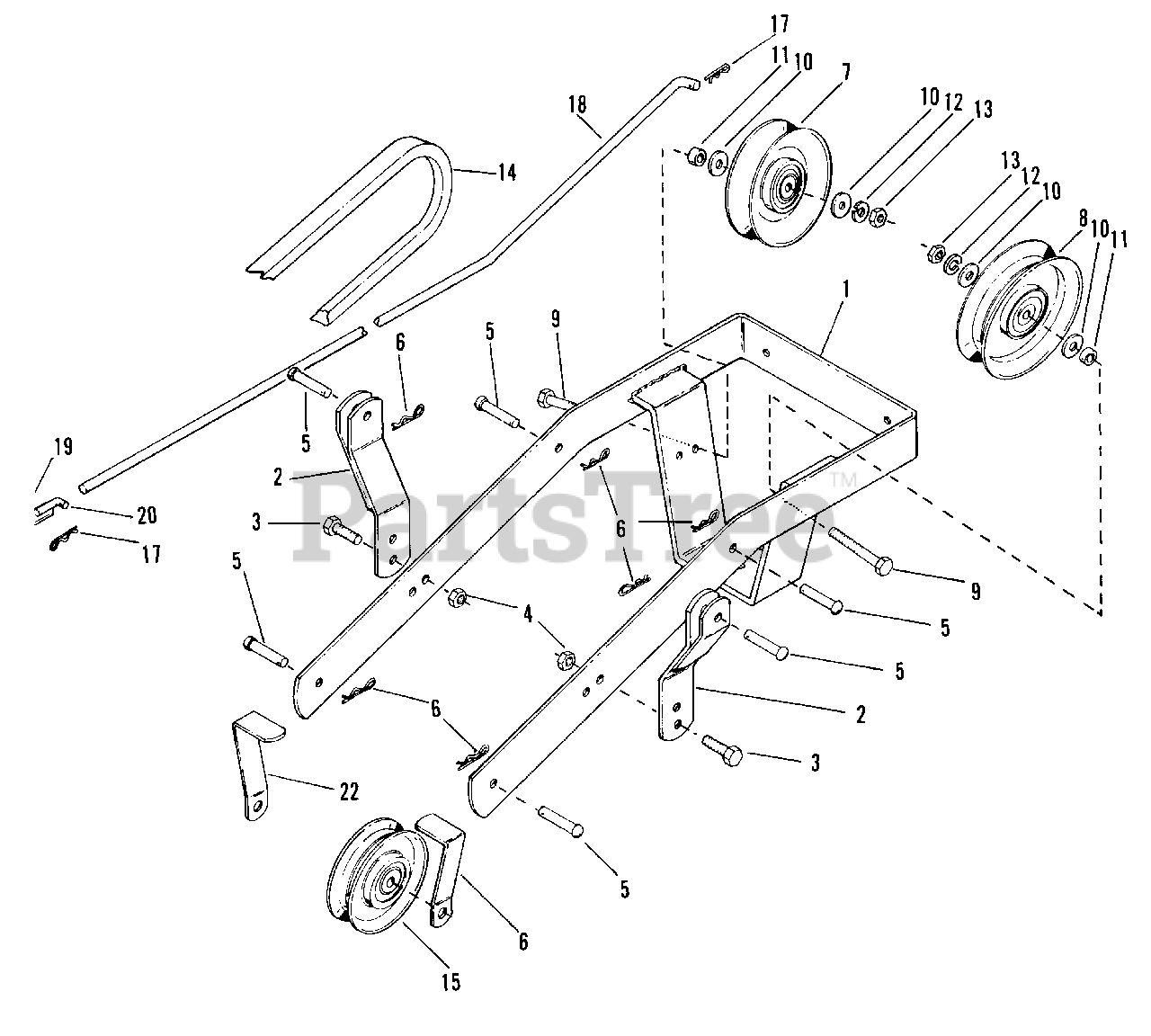

32" Snowthrower Hitch (5008, 5010) Parts Diagram

  • Title

1

Simplicity 1651778

PUSH ARM ASSEMBLY

$

$

Not available

2

Simplicity 1651413

SUPPORT ARM ASSY.

$

$

Not available

3

Simplicity 2807731

CAPSCREW, Hex, Hd., 3/8-16 x 1

$

$

Not available

4

Simplicity 2823428

NUT, Hex, Full Lock, 3/8-16

$

$

Not available

5

Simplicity 2156306SM

PlN

$7.99

$

In Stock, only 2 left!

0

6

Simplicity 2106788

CLIP, Hairpin

$

$

Not available

7

Simplicity 2101096SM

PULLEY

$62.99

$

In Stock, only 1 left!

0

8

Simplicity 2171247SM

PULLEY, Idler

$53.99

$

In Stock, Qty 12

0

9

Simplicity 2819361

CAPSCREW, Hex, Hd., 3/8-16 x 1-3/4

$

$

Not available

10

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

11

Simplicity 2154177SM

SPACER

$41.99

$

In Stock, only 3 left!

0

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

13

Simplicity 2816950SM

NUT, hex, 3/8-16 x 2
(Superseded to 703457)

$4.49

$

In Stock, only 2 left!

0

14

Simplicity 2108514SM

BELT, "V", Drive

$75.99

$

Usually ships in 2-12 days

0

15

Simplicity 2106716

PULLEY, Idler

$

$

Not available

16

Simplicity 1651817

STOP, Belt

$

$

Not available

17

Simplicity 2106788

CLIP, Hairpin

$

$

Not available

18

Simplicity 1651425

ROD, Lift

$

$

Not available

19

Simplicity 2828709

SCREW, Set, Sq. Hd., 5/16-18 x 3/8

$

$

Not available

20

Simplicity 1651496

ROD GUIDE ASSY.

$

$

Not available

21

Simplicity 2161247

DECAL, Safety

$

$

Not available

22

Simplicity 2162115SM

STOP, Belt
(Superseded to 2162115ASM)

$12.99

$

Usually ships in 2-12 days

0
