1690034 - Simplicity 32" Snow Thrower Attachment 32" Snowthrower Rotor, Body & Drive (5008, 5010) Parts Diagram

32" Snow Thrower Attachment

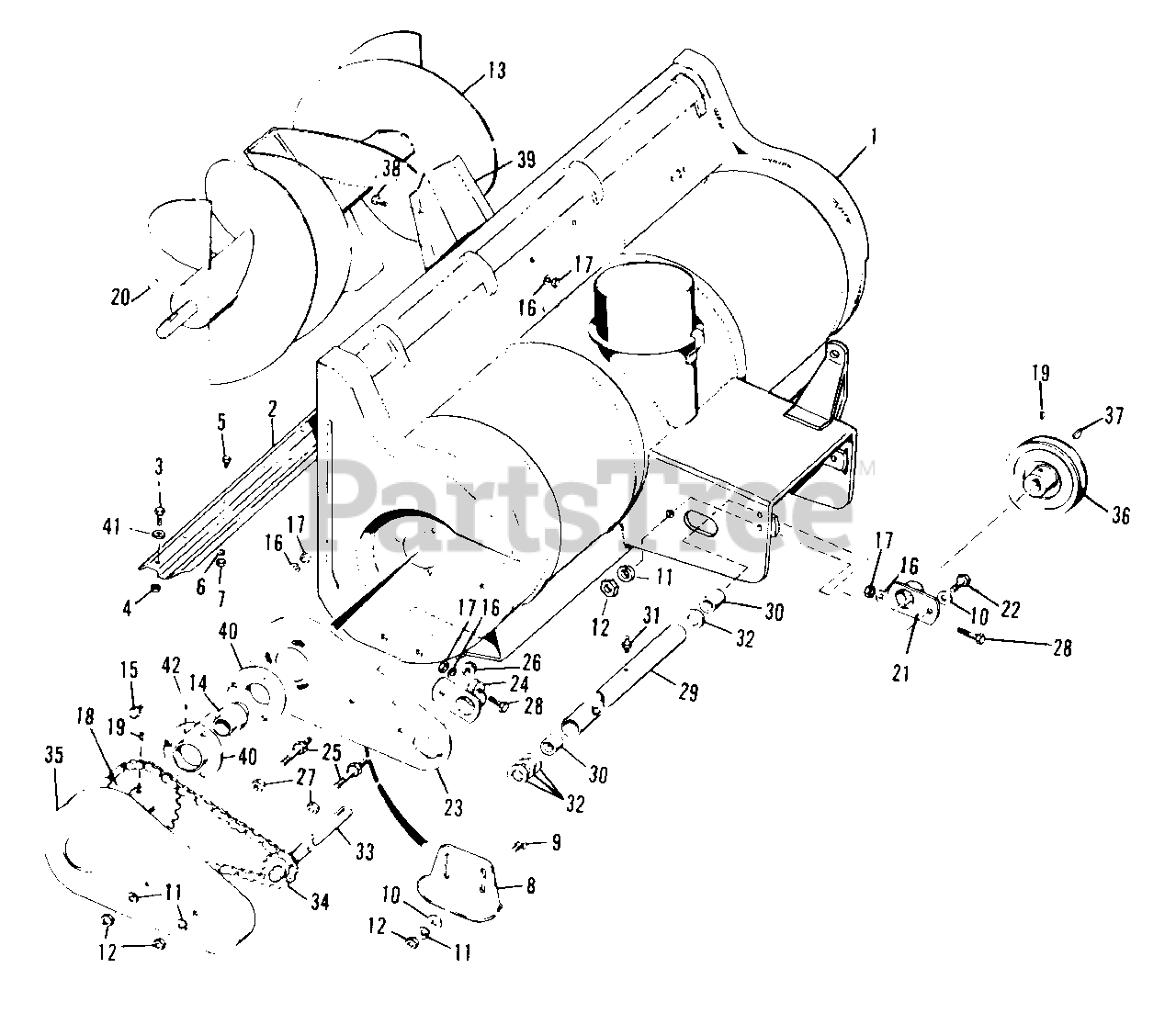

32" Snowthrower Rotor, Body & Drive (5008, 5010) Parts Diagram

  • Title

1

Simplicity 161198

BODY ASSEMBLY

$

$

Not available

2

Simplicity 106853

SCRAPER BODY

$

$

Not available

3

Simplicity 925295

CAPSCREW, Hex, 5/16-18 x 5/8

$

$

Not available

4

Simplicity 2823362

LOCKNUT, Full hex, 5/16-18

$

$

Not available

5

Simplicity 2821959

CAPSCREW, Hex, 1/4-20 x 5/8

$

$

Not available

6

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 17

0

7

Simplicity 2816622SM

NUT, Full hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 14

0

8

Simplicity 2177434C

SKID

$

$

Not available

9

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

10

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

12

Simplicity 2816950SM

NUT, full hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 106847

ROTOR ASSEMBLY

$

$

Not available

14

Simplicity 2106732

BEARING, Cartridge

$

$

Not available

15

Simplicity 2817397

CAPSCREW, Hex,

$

$

Not available

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1917372SM

NUT, Full hex
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

18

Simplicity 2106653SM

ROTOR, Sprocket

$104.99

$

Usually ships in 2-12 days

0

19

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

20

Simplicity 2151040SM

KEY, Hi-Pro

$9.99

$

In Stock, only 2 left!

0

21

Simplicity 176161

CLAMP SUPPORT ASSY.

$

$

Not available

22

Simplicity 967731

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

23

Simplicity 170754

PLATE, Side

$

$

Not available

24

Simplicity 176161

CLAMP SUPPORT ASSY.

$

$

Not available

25

Simplicity 106771

STUD

$

$

Not available

26

Simplicity 2828352

NUT, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 2823428

LOCKNUT, Full hex, 3/8-16

$

$

Not available

28

Simplicity 1922127SM

CAPSCREW, Hex, 5/16-18 x 1-1/2
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

29

Simplicity 106656

BEARING, Housing

$

$

Not available

30

Simplicity 2154258SM

BEARING, Needle

$27.99

$

In Stock, Qty 5

0

31

Simplicity 2812808SM

FITTING, Grease

$4.99

$

In Stock, Qty 20+

0

32

Simplicity 1729259SM

WASHER

$6.49

$

In Stock, Qty 10

0

33

Simplicity 106657

SHAFT ASSEMBLY

$

$

Not available

34

Simplicity 106058

CHAIN

$

$

Not available

35

Simplicity 170865

GUARD, Chain

$

$

Not available

36

Simplicity 106485

PULLEY

$

$

Not available

37

Simplicity 2805123SM

KEY, 3/16 dia., x 3/4
(Superseded to 7010211YP)

$3.99

$

In Stock, Qty 20+

0

38

Simplicity 2819318

CAPSCREW, Hex,

$

$

Not available

39

Simplicity 2106774ASM

DEFELCTOR

$31.99

$

Usually ships in 2-12 days

0

40

Simplicity 2161069

FLANGE, Bearing

$

$

Not available

41

Simplicity 2817377

WASHER

$

$

Not available
