1690034 - Simplicity 32" Snow Thrower Attachment 32" Snowthrower Spout (5008, 5010) Parts Diagram

32" Snow Thrower Attachment

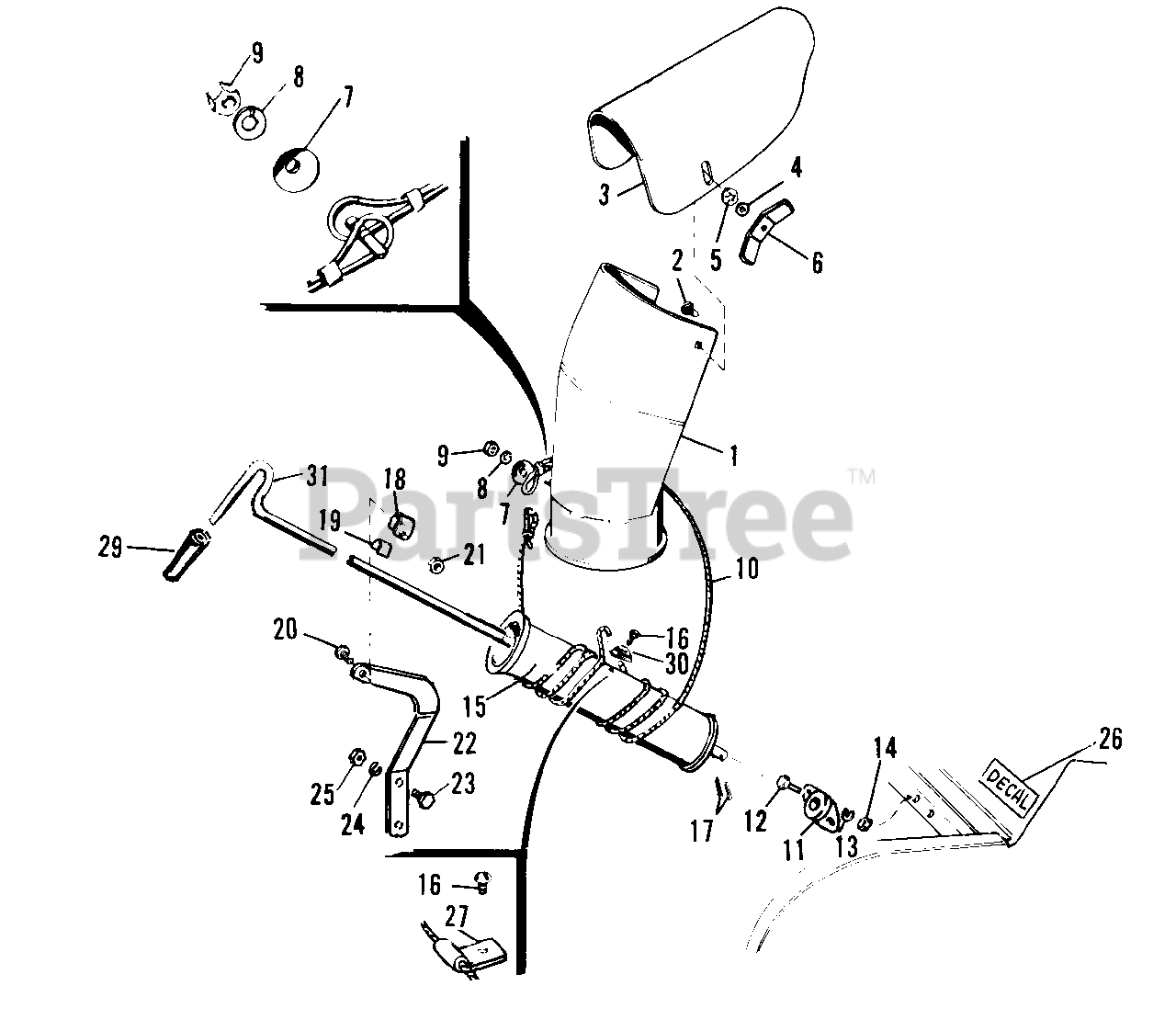

32" Snowthrower Spout (5008, 5010) Parts Diagram

  • Title

1

Simplicity 106762

SPOUT ASSEMBLY

$

$

Not available

2

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

3

Simplicity 106760

SPOUT, Extension

$

$

Not available

4

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 2828710

LOCKWASHER, 3/8

$

$

Not available

6

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

7

Simplicity 2171379SM

WASHER, Cup

$5.49

$

Usually ships in 2-12 days

0

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917372SM

NUT, Full hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 2171362SM

CABLE ASSEMBLY

$29.99

$

In Stock, only 1 left!

0

11

Simplicity 2106491SM

BEARING

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 2807727

CAPSCREW, Hex, 1/4-20 x 5/8

$

$

Not available

13

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

14

Simplicity 2816622SM

NUT, Full hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

15

Simplicity 176331

ROD ASSY., Spout ControI

$

$

Not available

16

Simplicity 2827428

SCREW, Self-tapping 1/4-20 x 3/8

$

$

Not available

17

Simplicity 2822000

PlN, Cotter, 3/32 x 5/8

$

$

Not available

18

Simplicity 2152050SM

GUIDE, Rod

$9.49

$

Usually ships in 2-12 days

0

19

Simplicity 2121175SM

GUIDE, Liner

$7.99

$

Usually ships in 2-12 days

0

20

Simplicity 2819933

CAPSCREW, Hex, 5/16-18 x 1-1/2

$

$

Not available

21

Simplicity 2823362

NUT, Lock, Full hex, 5/16-18

$

$

Not available

22

Simplicity 106499

ROD GUIDE SUPPORT

$

$

Not available

23

Simplicity 2807731

CAPSCREW, Hex, 3/8-16 x 1" lg.

$

$

Not available

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

25

Simplicity 2816950SM

NUT, full hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

26

Simplicity 2161247

DECAL

$

$

Not available

27

Simplicity 154247

CLAMP (For Service Only)

$

$

Not available

28

Simplicity 2176934SM

GRIP, Handle

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 918455

PlN, Cotter

$

$

Not available

30

Simplicity 2171382SM

CLAMP

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 176417

HANDLE, Rod

$

$

Not available
