1690039 - Simplicity 36" Tiller Attachment 36" Tiller-Deflector & Tine Group Parts Diagram

36" Tiller Attachment

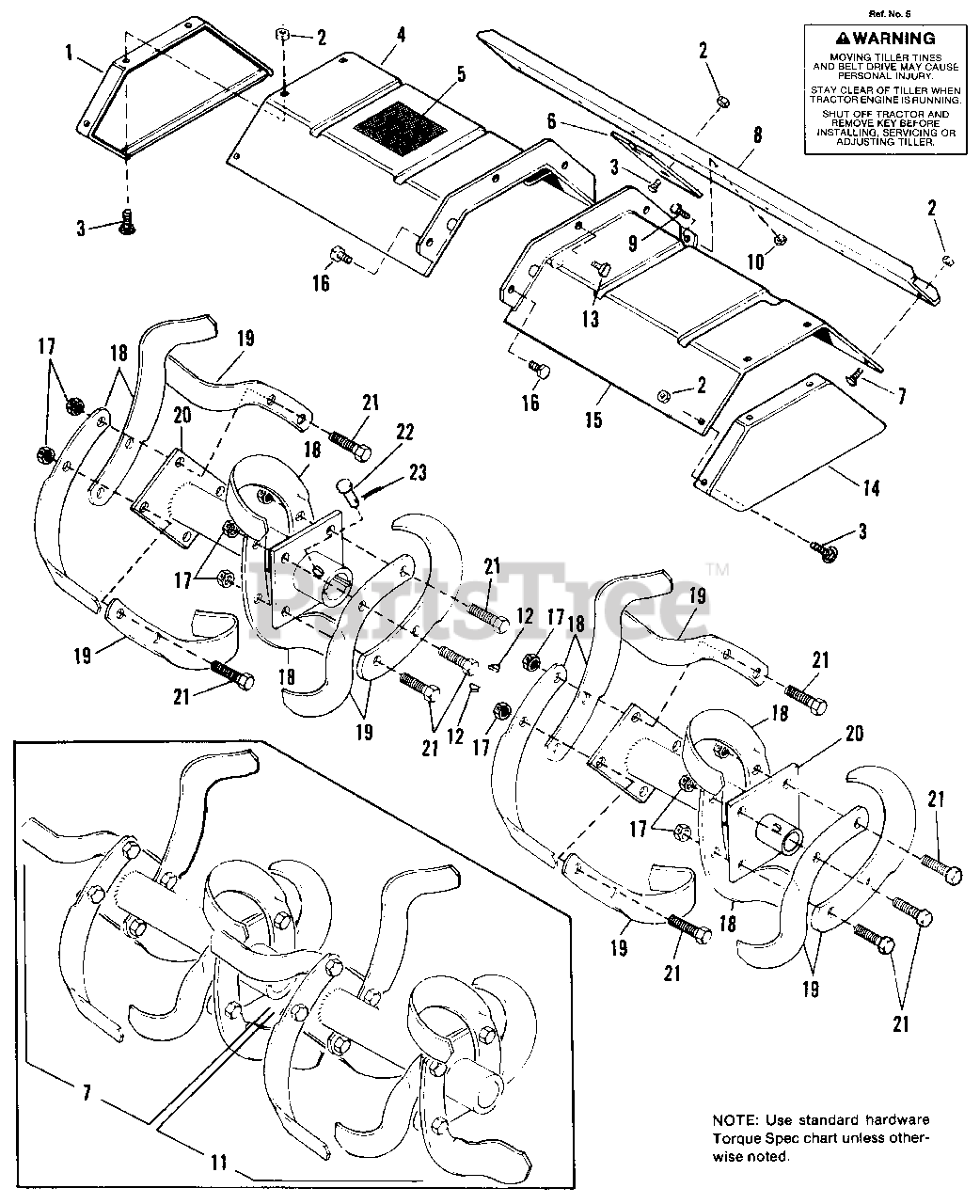

36" Tiller-Deflector & Tine Group Parts Diagram

  • Title

1

Simplicity 2105274A

PLATE, End Deflector, R.H.

$

$

Not available

2

Simplicity 1927557SM

LOCKNUT, Flange, 5/16-18

$4.99

$

In Stock, Qty 5

0

3

Simplicity 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 2105369ASM

DEFLECTOR ASSY., R.H.

$233.99

$

Usually ships in 2-12 days

0

5

Simplicity 1609700

DECAL, Safety

$

$

Not available

6

Simplicity 2105354ASM

SHIELD

$6.49

$

Usually ships in 2-12 days

0

7

Simplicity 1650461SM

BLADE ASSY., L.H.

$

$

Not available

8

Simplicity 2105330A

CHANNEL, Reinforcement

$

$

Not available

9

Simplicity 1921966SM

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 1930645SM

NUT, Hex, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

11

Simplicity 1650460SM

BLADE ASSY., R.H.

$

$

Not available

12

Simplicity 2105337SM

KEY

$8.49

$

In Stock, only 2 left!

0

13

Simplicity 1933260SM

CAPSCREW, Hex Hd., 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 2105273A

PLATE, End, Deflector, L.H.

$

$

Not available

15

Simplicity 2105370ASM

DEFLECTOR ASSY, L.H.

$216.99

$

Usually ships in 2-12 days

0

16

Simplicity 1934654SM

SCREW, Hex, Whizlock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, Qty 17

0

17

Simplicity 1928867SM

LOCKNUT, Hex, 7/16-20

$2.99

$

Usually ships in 2-12 days

0

18

Simplicity 2105376ASM

BLADE, Tine, R.H.

$

$

Not available

19

Simplicity 2105375ASM

BLADE, Tine, L.H.

$

$

Not available

20

Simplicity 1651504ASM

HUB & PLATE ASSY.

$216.99

$

Usually ships in 2-12 days

0

21

Simplicity 1920353SM

CAPSCREW, Hex Hd., 7/16-20 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 2105249SM

PIN

$16.99

$

Usually ships in 2-12 days

0

23

Simplicity 1918451SM

COTTER PIN, 1/8 x 3/4

$3.99

$

In Stock, only 1 left!

0
