1690039 - Simplicity 36" Tiller Attachment 36" Tiller-Drive Group Parts Diagram

36" Tiller Attachment

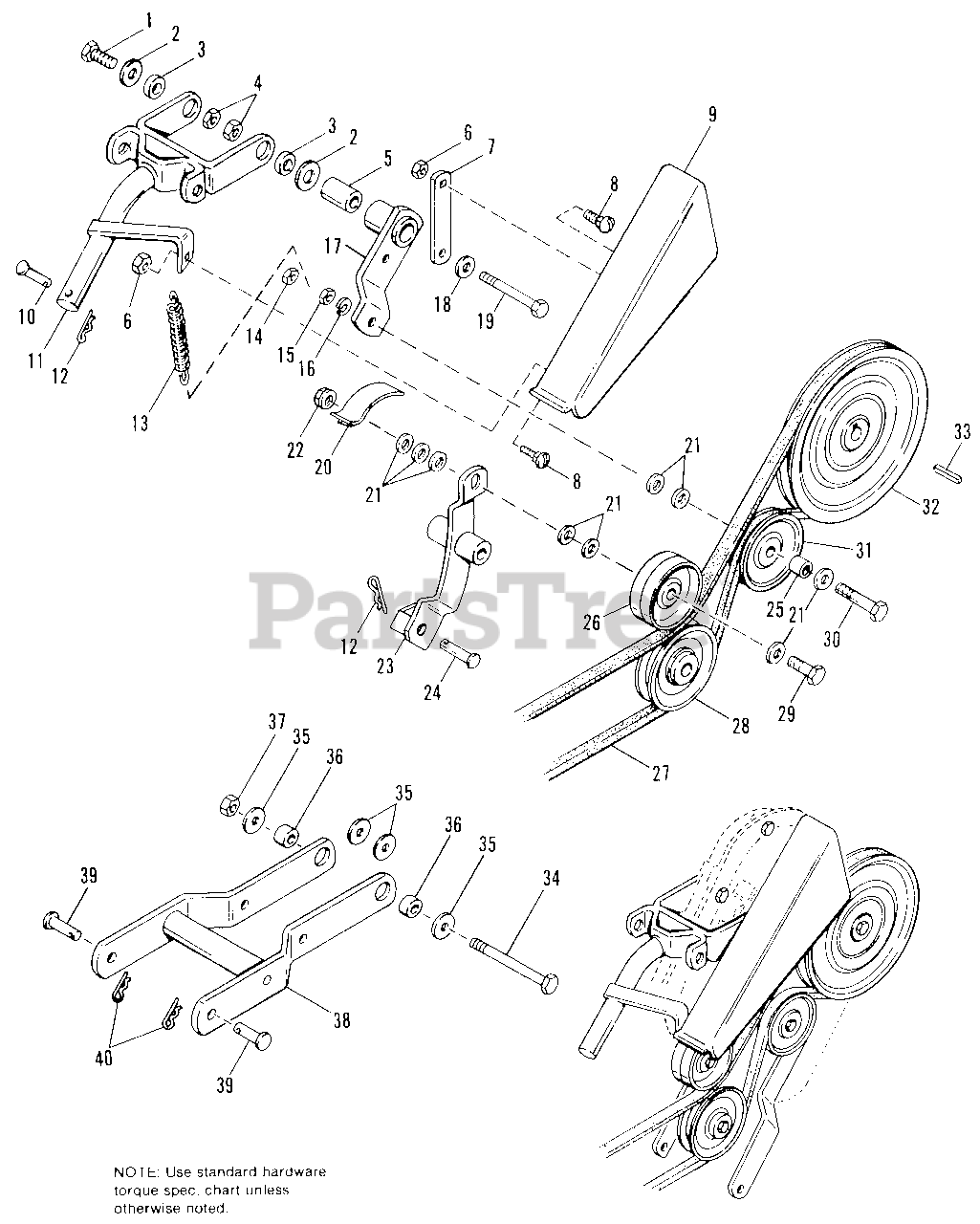

36" Tiller-Drive Group Parts Diagram

  • Title

1

Simplicity 2823471SM

CAPSCREW Hex Hd, 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1925125SM

WASHER, Plain, 3/8

$6.49

$

In Stock, only 2 left!

0

3

Simplicity 2105346SM

SPACER

$28.99

$

In Stock, only 1 left!

0

4

Simplicity 1930650SM

LOCKNUT, Flange, 7/16-14

$5.49

$

In Stock, only 1 left!

0

5

Simplicity 2105339ASM

SPACER

$13.99

$

Usually ships in 2-12 days

0

6

Simplicity 1927557SM

LOCKNUT, Whiz, 5/16-18

$4.99

$

In Stock, Qty 5

0

7

Simplicity 2105359ASM

SUPPORT, Rear Belt Guard

$5.49

$

Usually ships in 2-12 days

0

8

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

9

Simplicity 2105326A

GUARD, Belt

$

$

Not available

10

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

11

Simplicity 1671344A

BAR ASSY, Lift

$

$

Not available

12

Simplicity 2176012SM

CLIP, Spring (Serviced in 5-pack only)
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 2174896SM

SPRING

$20.99

$

In Stock, only 2 left!

0

14

Simplicity 1930645SM

LOCKNUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

17

Simplicity 2105295ASM

LEVER ASSY, Clutch

$61.99

$

Usually ships in 2-12 days

0

18

Simplicity 1925940

WASHER, Plain, 7/16

$

$

Not available

19

Simplicity 1930585SM

CAPSCREW, Hex Hd, 7/16-14 x 3-1/2

$7.49

$

In Stock, only 1 left!

0

20

Simplicity 2176366ASM

GUARD ASSY

$39.99

$

Usually ships in 2-12 days

0

21

Simplicity 1924940SM

WASHER, Plain, 5/16
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1928352SM

NUT, Flange, Whizlock 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

23

Simplicity 1657777ASM

ARM ASSY, Idler

$186.99

$

Usually ships in 2-12 days

0

24

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 20+

0

25

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 1657712SM

PULLEY, Idler

$

$

Not available

27

Simplicity 2105340SM

BELT "V", Drive

$54.99

$

In Stock, only 1 left!

0

28

Simplicity 2105380SM

PULLEY, Idler

$152.99

$

Usually ships in 2-12 days

0

29

Simplicity 1923701SM

CAPSCREW, Hex Hd, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, Qty 12

0

30

Simplicity 1913709SM

CAPSCREW, Hex Hd, 3/8-16 x 3

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 1685147SM

PULLEY ASSY

Note: Ref. No. 31 Includes Ref. No.25.

$73.99

$

In Stock, only 1 left!

0

32

Simplicity 2105302SM

PULLEY

$142.99

$

Usually ships in 2-12 days

0

33

Simplicity 2157427SM

KEY

$5.49

$

In Stock, only 1 left!

0

34

Simplicity 1926159SM

CAPSCREW, Hex Hd, 1/2-13 x 5

$10.99

$

In Stock, Qty 6

0

35

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

In Stock, only 2 left!

0

36

Simplicity 2105386SM

SPACER

$31.99

$

Usually ships in 2-12 days

0

37

Simplicity 1930644SM

LOCKNUT, Hex, 1/2-13

$3.49

$

In Stock, only 1 left!

0

38

Simplicity 1651844ASM

FRAME ASSY

$199.99

$

Usually ships in 2-12 days

0

39

Simplicity 2155037SM

PIN

$12.99

$

In Stock, only 1 left!

0

40

Simplicity 2176012SM

CLIP, Spring (Serviced in 5-pack only)
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1650978

ARM SUB ASSY, Idler (Includes Ref Nos. 20, 21, 22, 23, 26, 27, 28 & 29)

$

$

Not available
