1690039 - Simplicity 36" Tiller Attachment 36" Tiller-Housing Group Parts Diagram

36" Tiller Attachment

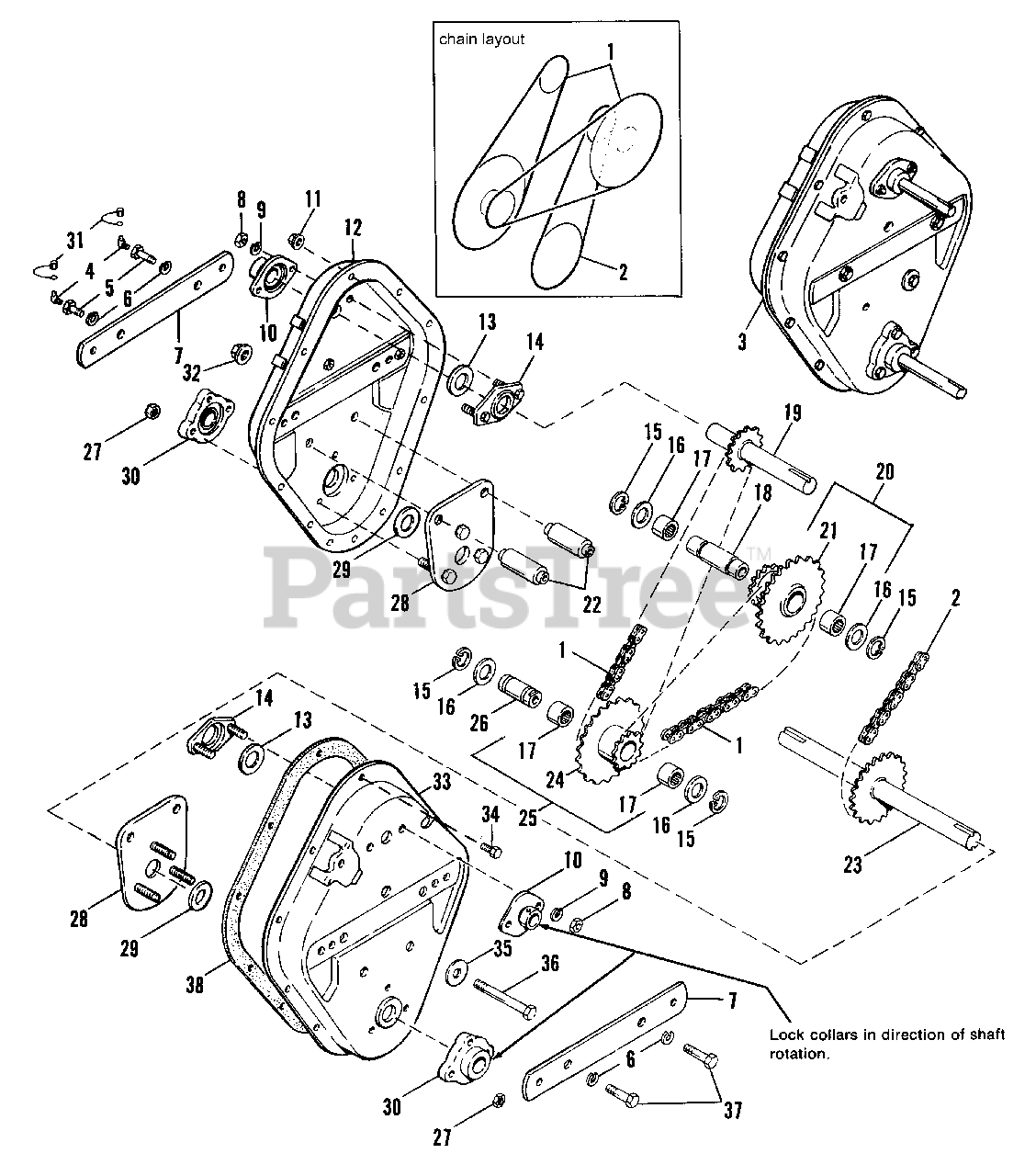

36" Tiller-Housing Group Parts Diagram

  • Title

1

Simplicity 2105336SM

CHAIN #40

$29.99

$

Usually ships in 2-12 days

0

2

Simplicity 2178174SM

CHAIN #50

$86.99

$

Usually ships in 2-12 days

0

3

Simplicity 1650841SM

TRANSMISSION SUB ASSY. (Incl. Ref. Nos. 1-16, 18-38 on this page & Ref. Nos. 1-5, 7, 11, 17, 18, 19, 34, 36 & 38 in the 36" Tiller-Drive Group)

$

$

Not available

4

Simplicity 2815019SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 2105132SM

BOLT

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 2105320ASM

BAR, Side

$

$

Not available

8

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1669337SM

BEARING

$85.99

$

Usually ships in 2-12 days

0

11

Simplicity 1923362SM

LOCKNUT, Hex, Full, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 11

0

12

Simplicity 2105366ASM

CASE ASSY, Half, R.H.

$182.99

$

Usually ships in 2-12 days

0

13

Simplicity 2105365SM

SEAL

$4.99

$

In Stock, only 2 left!

0

14

Simplicity 1669338SM

PLATE ASSY., Upper Bearing

$104.99

$

Usually ships in 2-12 days

0

15

Simplicity 1927320

RING, Retaining

$

$

Not available

16

Simplicity 2860208SM

WASHER

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 2105195SM

BEARING, Roller

$34.99

$

In Stock, only 2 left!

0

18

Simplicity 2105192SM

SPACER, Inter

$110.99

$

Usually ships in 2-12 days

0

19

Simplicity 2105298SM

SHAFT ASSY, Pulley

$71.99

$

Usually ships in 2-12 days

0

20

Simplicity 1650975SM

SPROCKET & BEARING ASSY.

Note: Ref. No. 20 Includes Ref. Nos. 17 & 21.

$259.99

$

Usually ships in 2-12 days

0

21

SPROCKET ASSY. (See Ref. No. 20)

$

$

Not available

22

Simplicity 2105360SM

SPACER
(Superseded to 2105360ASM)

$14.99

$

Usually ships in 2-12 days

0

23

Simplicity 2178177SM

SHAFT ASSY., Tine

$277.99

$

In Stock, only 1 left!

0

24

SPROCKET (See Ref. No. 25)

$

$

Not available

25

Simplicity 1650976SM

SPROCKET & BEARING ASSY.

Note: Ref. No. 25 Includes Ref. Nos. 17 & 24.

$198.99

$

Usually ships in 2-12 days

0

26

Simplicity 2105292SM

SPACER, Inter.

$51.99

$

Usually ships in 2-12 days

0

27

Simplicity 1930645SM

LOCKNUT, Hex, Jam, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

28

Simplicity 1669298SM

PLATE ASSY.

$53.99

$

Usually ships in 2-12 days

0

29

Simplicity 2105357SM

SEAL

$5.99

$

In Stock, Qty 8

0

30

Simplicity 2105309SM

BEARING

$158.99

$

In Stock, only 2 left!

0

31

Simplicity 2105363SM

CAP, Grease

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 1930644SM

LOCKNUT, Flange, 1/2-13

$3.49

$

In Stock, only 1 left!

0

33

Simplicity 2105367ASM

CASE ASSY, Half, L.H.

$182.99

$

Usually ships in 2-12 days

0

34

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

35

Simplicity 1918431SM

WASHER, Plain, 1/2
(Superseded to 704011)

$4.49

$

In Stock, only 1 left!

0

36

Simplicity 1926158SM

CAPSCREW, Hex Hd., 1/2-13 x 4

$6.99

$

In Stock, only 1 left!

0

37

Simplicity 1929528SM

CAPSCREW, Hex Hd., 1/2-20 x 1

$4.49

$

In Stock, only 2 left!

0

38

Simplicity 2105373SM

GASKET

$42.99

$

In Stock, Qty 8

0
