1690042 - Simplicity Rear Light Kit Rear Light Parts Diagram

Rear Light Kit

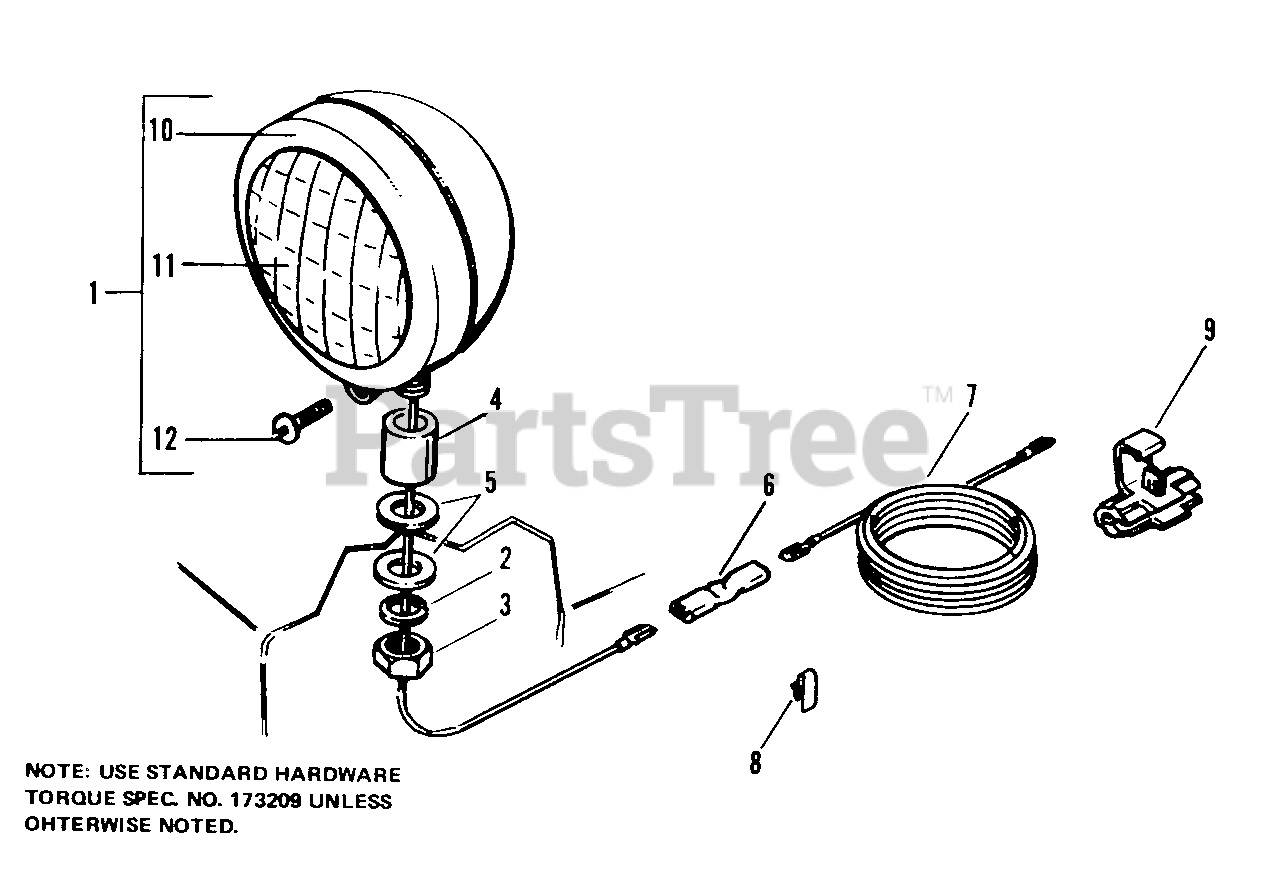

Rear Light Parts Diagram

  • Title

1

Simplicity 122175

LAMP ASSY

$

$

Not available

2

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

3

Simplicity 2816951

NUT, Hex, Full, 1/2-13

$

$

Not available

4

Simplicity 122053

SPACER

$

$

Not available

5

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

6

Simplicity 122157

CONNECTOR

$

$

Not available

7

Simplicity 122187

WIRE

$

$

Not available

8

Simplicity 122159

CLIP, Wire

$

$

Not available

9

Simplicity 1605751SM

CONNECTOR

$

$

Not available

10

Simplicity 1650247

MOULDING ASSY

$

$

Not available

11

Simplicity 122164

SEAL, Beam

$

$

Not available

12

Simplicity 1650248

SCREW, Moulding

$

$

Not available
