1690044 - Simplicity Dual Lift Kit Dual Lift Lever Parts Diagram

Dual Lift Kit

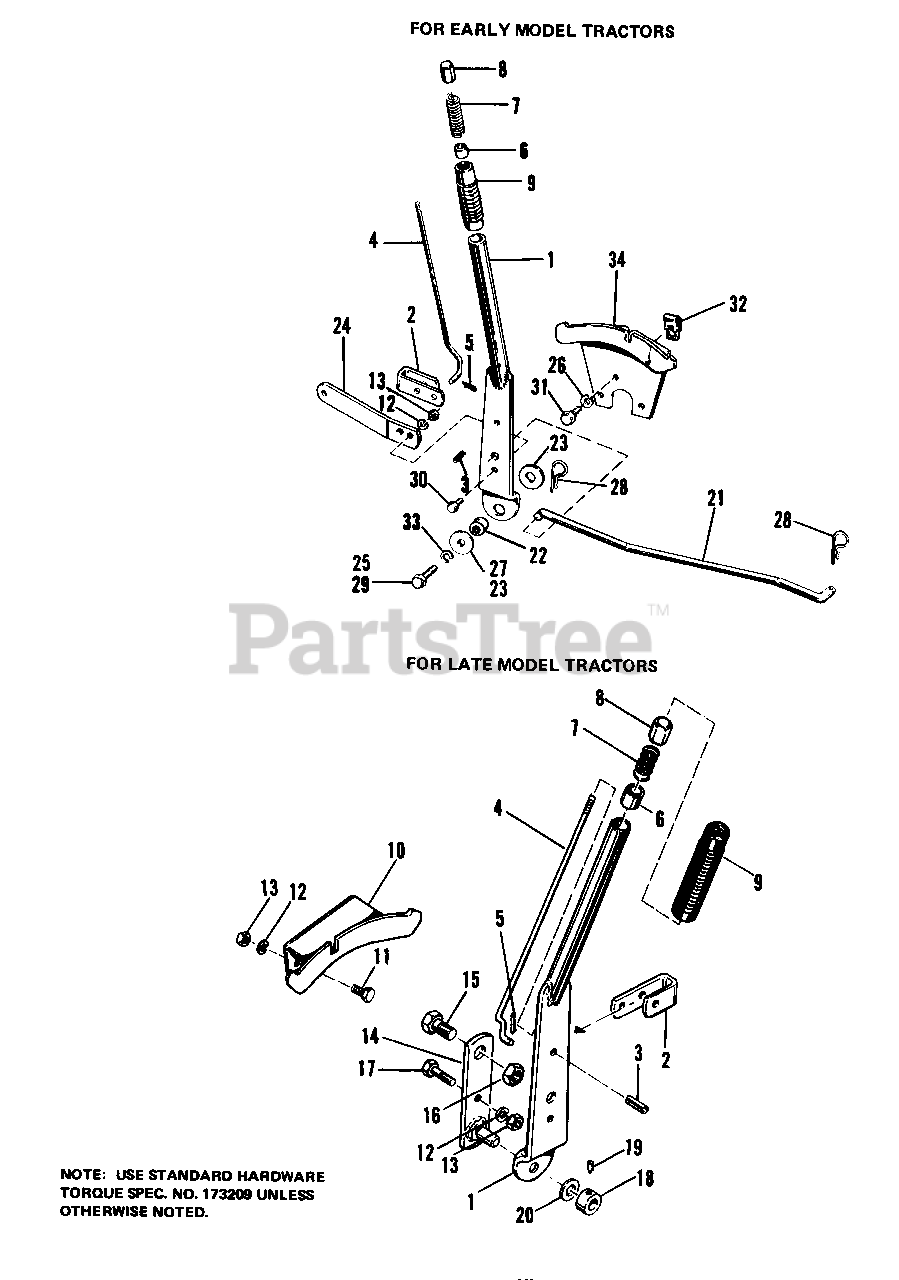

Dual Lift Lever Parts Diagram

  • Title

1

Simplicity 157160

LEVER ASSY, Lift, R.H.

$

$

Not available

2

Simplicity 157166

LATCH, Lift Lever

$

$

Not available

3

Simplicity 2818113

PIN, Spring, 3/8 x 1

$

$

Not available

4

Simplicity 157167

ROD, Latch, R.H.

$

$

Not available

5

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

6

Simplicity 154226

SPACER

$

$

Not available

7

Simplicity 2152006SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 2154227SM

BUTTON, Thumb

$

$

Not available

9

Simplicity 2156209

GRIP, Handle
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

10

Simplicity 174718

QUADRANT ASSY

$

$

Not available

11

Simplicity 2808127

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

12

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

13

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

14

Simplicity 174711

LEVER ASSY

$

$

Not available

15

Simplicity 923114

CAPSCREW, Hex Hd., 1/2-13 x 1

$

$

Not available

16

Simplicity 2824650

NUT, Hex, Full Lock, Jam, 1/2-13

$

$

Not available

17

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

18

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

19

Simplicity 2828709

SETSCREW, Sq. Hd., 5/16-18 x 3/8

$

$

Not available

20

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

21

Simplicity 107046

ROD, Lift

$

$

Not available

22

Simplicity 157168

SPACER

$

$

Not available

23

Simplicity 157169

WASHER, Plain

$

$

Not available

24

Simplicity 157170

LEVER, Lift

$

$

Not available

25

Simplicity 916608

CAPSCREW, Hex Hd., 7/16-14 x 1/2

$

$

Not available

26

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

28

Simplicity 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

29

Simplicity 2819318

CAPSCREW, Hex Hd, 5/16-18 x 5/8

$

$

Not available

30

Simplicity 2819357

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

31

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

32

Simplicity 2828701

NUT, Retainer, 5/16-18

$

$

Not available

33

Simplicity 2818199

LOCKWASHER, Spring, 7/16

$

$

Not available

34

Simplicity 157163

QUADRANT ASSY, R.H.

$

$

Not available
