1690045 - Simplicity Rear Lift Kit Rear Lift Parts Diagram

Rear Lift Kit

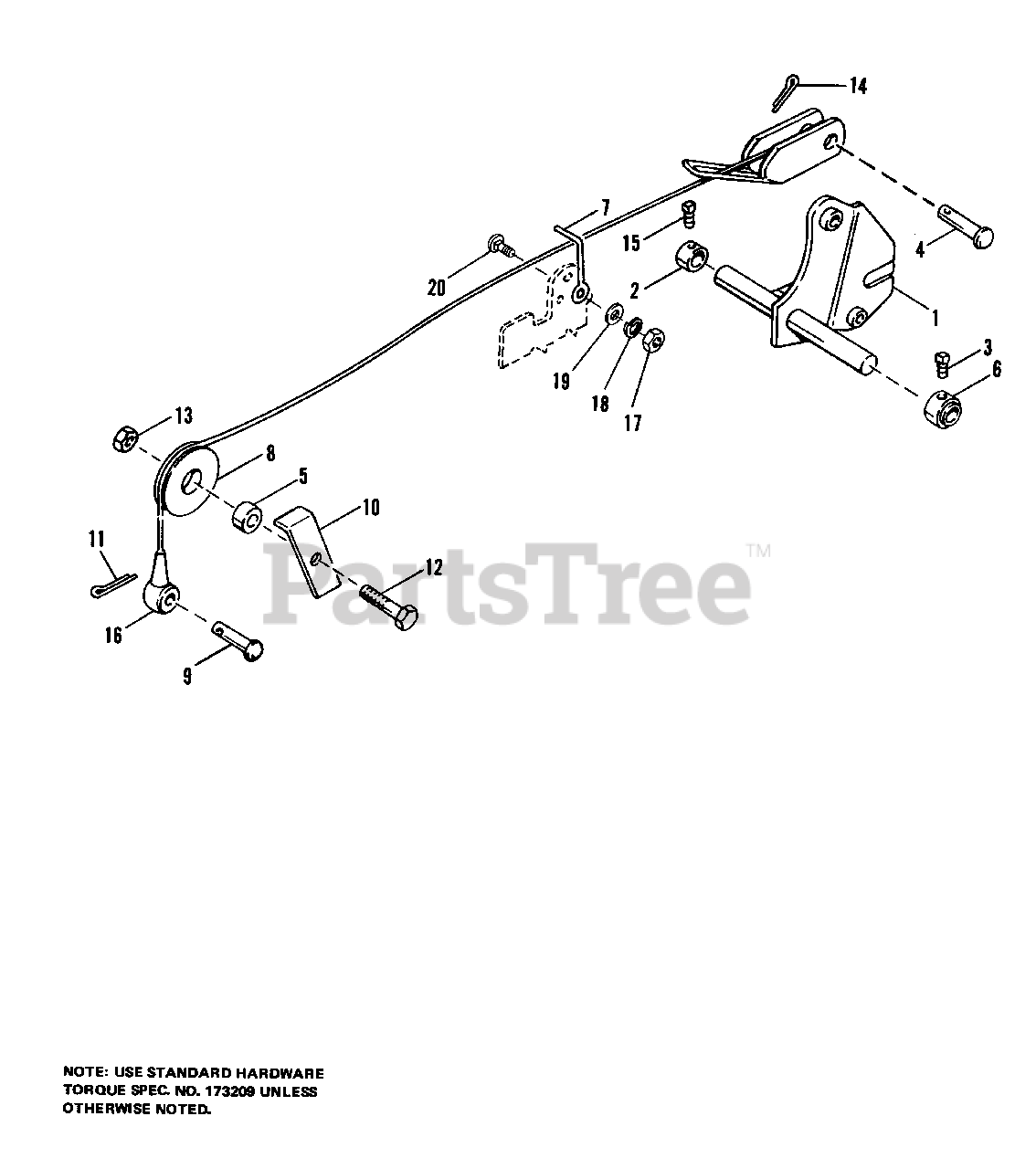

Rear Lift Parts Diagram

  • Title

1

Simplicity 1608761SM

LEVER ASSY, Lift

$

$

Not available

2

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

3

Simplicity 2830540

SETSCREW, Sq. Hd., 5/16-18 x 5/8

$

$

Not available

4

Simplicity 2102004SM

PIN, Pivot

$9.49

$

In Stock, only 3 left!

0

5

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 13

0

6

Simplicity 2157695SM

COLLAR, Set

$87.99

$

Usually ships in 2-12 days

0

7

Simplicity 170396

STOP, Belt

$

$

Not available

8

Simplicity 2172725SM

PULLEY

$48.99

$

Usually ships in 2-12 days

0

9

Simplicity 1729019SM

PIN
(Superseded to 703982)

$6.99

$

Usually ships in 2-12 days

0

10

Simplicity 2174723SM

GUARD, Cable

$

$

Not available

11

Simplicity 2818447

PIN, Cotter, 3/32 x 1

$

$

Not available

12

Simplicity 920145

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

13

Simplicity 2828731

NUT, Hex Jam, 3/8-16

$

$

Not available

14

Simplicity 2818452

PIN, Cotter. 1/8 x 1

$

$

Not available

15

Simplicity 2828709

SETSCREW, Sq. Hd., 5/16-18 x 3/8

$

$

Not available

16

Simplicity 1651454SM

CABLE ASSY, Lift

$323.99

$

Usually ships in 2-12 days

0

17

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

Note: Used To Attach Belt Stop (Ref. No. 7) To The 7000-6 Speed Tractor. Use Existing Hardware To Attach The Belt Stop To Hydraulic Tractor.

$3.49

$

In Stock, only 4 left!

0

18

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

Note: Used To Attach Belt Stop (Ref. No. 7) To The 7000-6 Speed Tractor. Use Existing Hardware To Attach The Belt Stop To Hydraulic Tractor.

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 2817377

WASHER, Plain, 1/4

Note: Used To Attach Belt Stop (Ref. No. 7) To The 7000-6 Speed Tractor. Use Existing Hardware To Attach The Belt Stop To Hydraulic Tractor.

$

$

Not available

20

Simplicity 2830517

BOLT, Rd Hd., Sq. Nk,, 1/4-20 x 3/4

Note: Used To Attach Belt Stop (Ref. No. 7) To The 7000-6 Speed Tractor. Use Existing Hardware To Attach The Belt Stop To Hydraulic Tractor.

$

$

Not available
