1690074 - Simplicity 60" Mower Deck 60" Rotary Mower - Deck & Cover Group Parts Diagram

60" Mower Deck

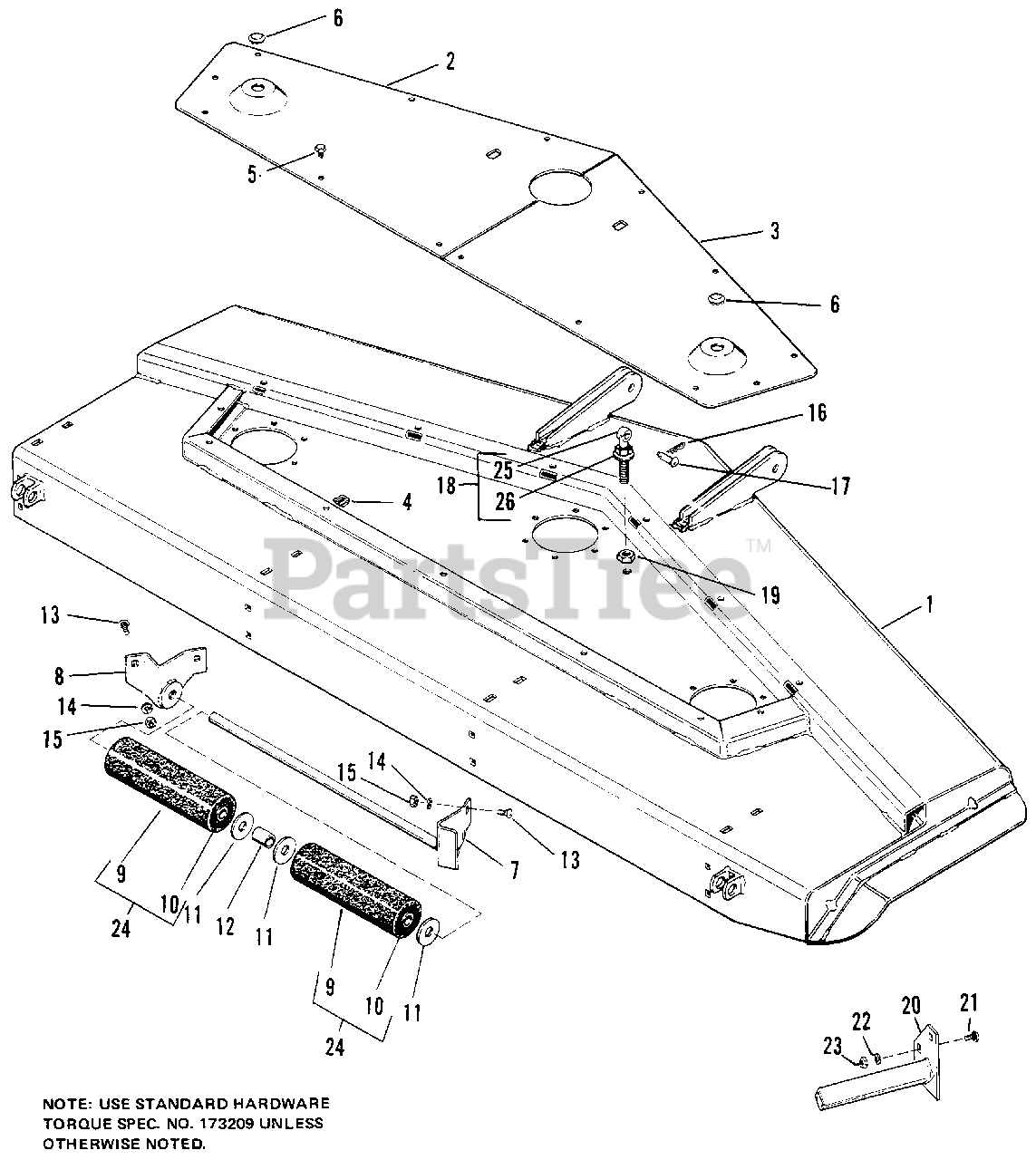

60" Rotary Mower - Deck & Cover Group Parts Diagram

  • Title

1

Simplicity 1664146

DECK ASSY

$

$

Not available

2

Simplicity 172642

PLATE, Cover, R.H.

$

$

Not available

3

Simplicity 172968

PLATE, Cover, L.H.

$

$

Not available

4

Simplicity 930663

NUT, Speed, Thin

$

$

Not available

5

Simplicity 2830617

SCREW, Self tapping, Hex, Wshr. Hd., 5/16 x 5/8

$

$

Not available

6

Simplicity 172971

BUTTON, Plug

$

$

Not available

7

Simplicity 2172606

BRACKET & SHAFT ASSY

$

$

Not available

8

Simplicity 2173270ASM

BRACKET ASSY

$50.99

$

Usually ships in 2-12 days

0

9

Simplicity 2175730

ROLLER

$

$

Not available

10

Simplicity 2175731SM

BUSHING

$5.49

$

Usually ships in 2-12 days

0

11

Simplicity 2116001

WASHER

$

$

Not available

12

Simplicity 123025

SPACER

$

$

Not available

13

Simplicity 2820562

BOLT, Rd. Hd., Sq. Nk., 5/16-18 x 3/4

$

$

Not available

14

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

15

Simplicity 1917372SM

NUT Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

16

Simplicity 2106787

CLIP, Spring

$

$

Not available

17

Simplicity 2823087

PIN, Yoke, 3/8

$

$

Not available

18

Simplicity 2176887

BOLT ASSY, Eye

$

$

Not available

19

Simplicity 2830649

NUT, Hex, Lock, 7/16-14

$

$

Not available

20

Simplicity 173551

GUARD ASSY, Stone

$

$

Not available

21

Simplicity 2823232

BOLT, Rd. Hd., Sq. Nk., 3/8-16 x 1

$

$

Not available

22

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

23

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 2175729

ROLLER, w/Bushings

$

$

Not available

25

Simplicity 2173267SM

BOLT, Eye

$71.99

$

Usually ships in 2-12 days

0

26

Simplicity 2830649

NUT, Flange, Whiz Lock, 7/16-14

$

$

Not available
