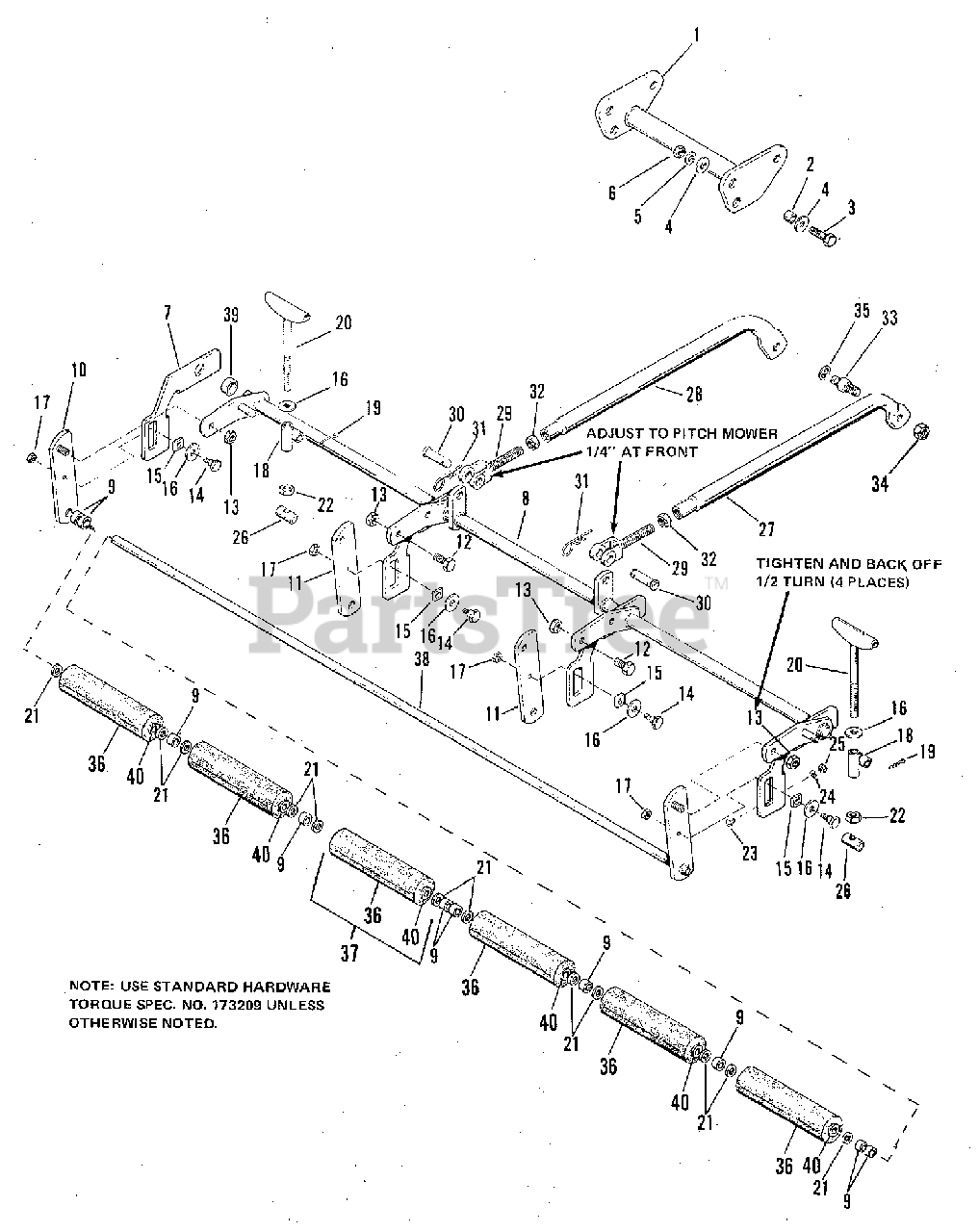

1690074 - Simplicity 60" Mower Deck 60" Rotary Mower - Rocker Arm & Roller Group Parts Diagram

60" Mower Deck

60" Rotary Mower - Rocker Arm & Roller Group Parts Diagram

  • Title

1

Simplicity 172571

ARM ASSY, Rocker

$

$

Not available

2

Simplicity 2172568

SPACER

$

$

Not available

3

Simplicity 2807735

CAPSCREW, Hex Hd, 1/2-13 x 1-3/4

$

$

Not available

4

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

5

Simplicity 2816966

LOCKWASHER, Spring, 1/2

$

$

Not available

6

Simplicity 2816951

NUT, Hex, 1/2-13

$

$

Not available

7

Simplicity 172598

BRACKET, Roller

$

$

Not available

8

Simplicity 175321

ROCKER ASSY, Arm

$

$

Not available

9

Simplicity 2172914SM

SPACER

$13.99

$

In Stock, only 1 left!

0

10

Simplicity 2172633

BAR ASSY, Roller

$

$

Not available

11

Simplicity 2172627SM

BAR, Roller
(Superseded to 2172627ASM)

$52.99

$

Usually ships in 2-12 days

0

12

Simplicity 2817279

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$

$

Not available

13

Simplicity 2822134

NUT, Hex, Lock, 1/2-13

$

$

Not available

14

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$7.49

$

In Stock, Qty 20+

0

15

Simplicity 2172567SM

SLIDE

$

$

Not available

16

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

17

Simplicity 2828731

NUT, Hex, Lock, Jam, 3/8-16

$

$

Not available

18

Simplicity 172621

PIVOT ASSY

$

$

Not available

19

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

20

Simplicity 172628

SCREW ASSY, Adj,

$

$

Not available

21

Simplicity 2116001

WASHER

$

$

Not available

22

Simplicity 2824650

NUT, Hex, Full Lock, Jam, 1/2-13

$

$

Not available

23

Simplicity 2820562

BOLT, Rd. Hd., Sq. Nk., 5/16-18 x 3/4

$

$

Not available

24

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

25

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

26

Simplicity 172565

PIN, Cotter

$

$

Not available

27

Simplicity 175319

BAIL, R.H.

$

$

Not available

28

Simplicity 175320

BAIL, L.H.

$

$

Not available

29

Simplicity 172570

YOKE

$

$

Not available

30

Simplicity 2112052

PIN, Yolk

$

$

Not available

31

Simplicity 1918196SM

PIN, Quick, 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 5

0

32

Simplicity 2822014

NUT, Hex, Lock, Jam, 5/8-18

$

$

Not available

33

Simplicity 172623

BOLT, Shoulder, Special

$

$

Not available

34

Simplicity 1930631SM

NUT, Hex, Jam, Finished, 5/8-11

$

$

Not available

35

Simplicity 2827794SM

RING, E, External

$3.49

$

In Stock, only 4 left!

0

36

Simplicity 2175730

ROLLER

$

$

Not available

37

Simplicity 2175729

ROLLER, w/Bushings

$

$

Not available

38

Simplicity 2172635

SHAFT ASSY, Roller

$

$

Not available

39

Simplicity 172591

SPACER

$

$

Not available

40

Simplicity 2175731SM

BUSHING

$5.49

$

Usually ships in 2-12 days

0
