1690079 - Simplicity 38" Revitalizer Attachment CLUTCH AND BELT DRIVE Parts Diagram

38" Revitalizer Attachment

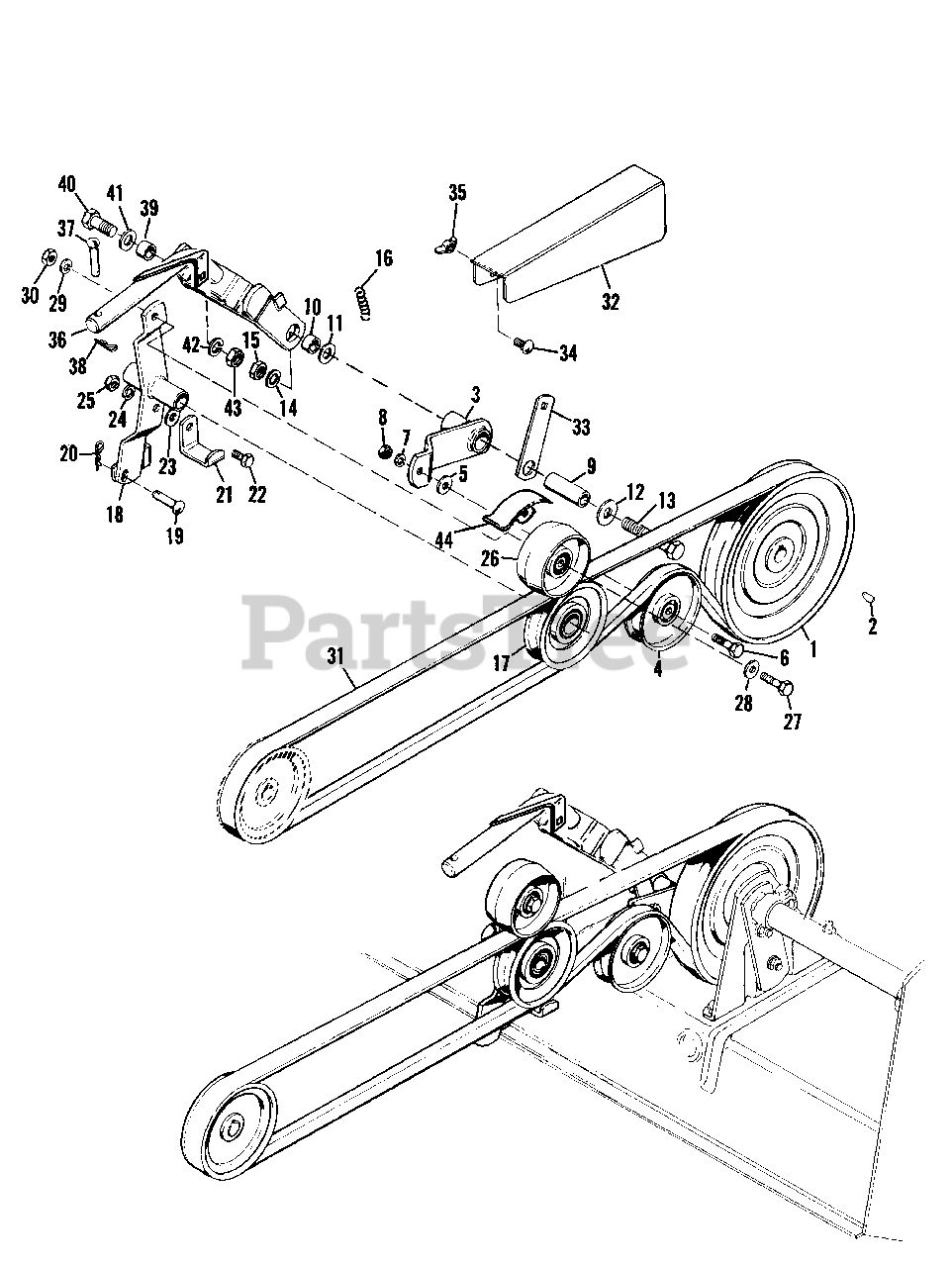

CLUTCH AND BELT DRIVE Parts Diagram

  • Title

1

Simplicity 2105302SM

PULLEY

$205.99

$

Usually ships in 2-12 days

0

2

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 2105295SM

CLUTCH LEVER ASSEMBLY
(Superseded to 2105295ASM)

$

$

Not available

4

Simplicity 2105306

PULLEY, Idler

$

$

Not available

5

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

6

Simplicity 930573

CAPSCREW, Hex 3/8"-16 x 3" lg.

$

$

Not available

7

Simplicity 1916965SM

LOCKWASH E R, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

8

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 2105339ASM

SPACER

$13.99

$

Usually ships in 2-12 days

0

10

Simplicity 2105346SM

SPACER

$30.99

$

Usually ships in 2-12 days

0

11

Simplicity 1924940SM

WASHER, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 2818430

WASHER, Plain, 7/16"

$

$

Not available

13

Simplicity 2826111

CAPSCREW, Hex 7/16"-14 x 3-1/2" lg.

$

$

Not available

14

Simplicity 2818199

LOCKWASHER, 7/16"

$

$

Not available

15

Simplicity 2818213

NUT, Hex, Jam, 7/16"-14

$

$

Not available

16

Simplicity 2174896SM

SPRING

$21.99

$

In Stock, only 2 left!

0

17

Simplicity 2105380SM

PULLEY, Idler

$219.99

$

Usually ships in 2-12 days

0

18

Simplicity 1692576

IDLER ARM ASSEMBLY

$

$

Not available

19

Simplicity 2105306

PIN

$

$

Not available

20

Simplicity 2106787

CLIP, Spring

$

$

Not available

21

Simplicity 2105351SM

GUARD, Belt

$

$

Not available

22

Simplicity 2819357

CAPSCREW, Hex 3/8"-16 x 7/8" lg.

$

$

Not available

23

Simplicity 2817642

WASHER, Plain, 3/8"

$

$

Not available

24

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

25

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, only 1 left!

0

26

Simplicity 2164083

PULLEY, Idler

$

$

Not available

27

Simplicity 2819361

CAPSCREW, Hex 3/8"-16 x 1-1/4" lg.

$

$

Not available

28

Simplicity 2817642

WASHER, Plain, 3/8"

$

$

Not available

29

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

30

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, only 1 left!

0

31

Simplicity 2105340SM

"V" BELT

$71.99

$

In Stock, only 2 left!

0

32

Simplicity 2105326A

GUARD, Belt

$

$

Not available

33

Simplicity 2105359ASM

SUPPORT, Belt Guard

$

$

Not available

34

Simplicity 2820562

BOLT, Carriage 5/16"-18 x 3/4" lg.

$

$

Not available

35

Simplicity 2827557

NUT, Flange, 5/16"-18

$

$

Not available

36

Simplicity 1652573

LIFT BAR ASSEMBLY

$

$

Not available

37

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

38

Simplicity 2106787

CLIP, Spring

$

$

Not available

39

Simplicity 2105346SM

SPACER

$30.99

$

Usually ships in 2-12 days

0

40

Simplicity 2816432

CAPSCREW, Hex 7/16"-14 x 1-1/4" lg.

$

$

Not available

41

Simplicity 1924940SM

WASHER, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 2818199

LOCKWASHER, 7/16"

$

$

Not available

43

Simplicity 2818213

NUT, Hex, Jam, 7/16"-14

$

$

Not available

44

Simplicity 2176366ASM

GUARD

$57.99

$

Usually ships in 2-12 days

0
