1690079 - Simplicity 38" Revitalizer Attachment HITCH AND HEIGHT ADJUSTMENT Parts Diagram

38" Revitalizer Attachment

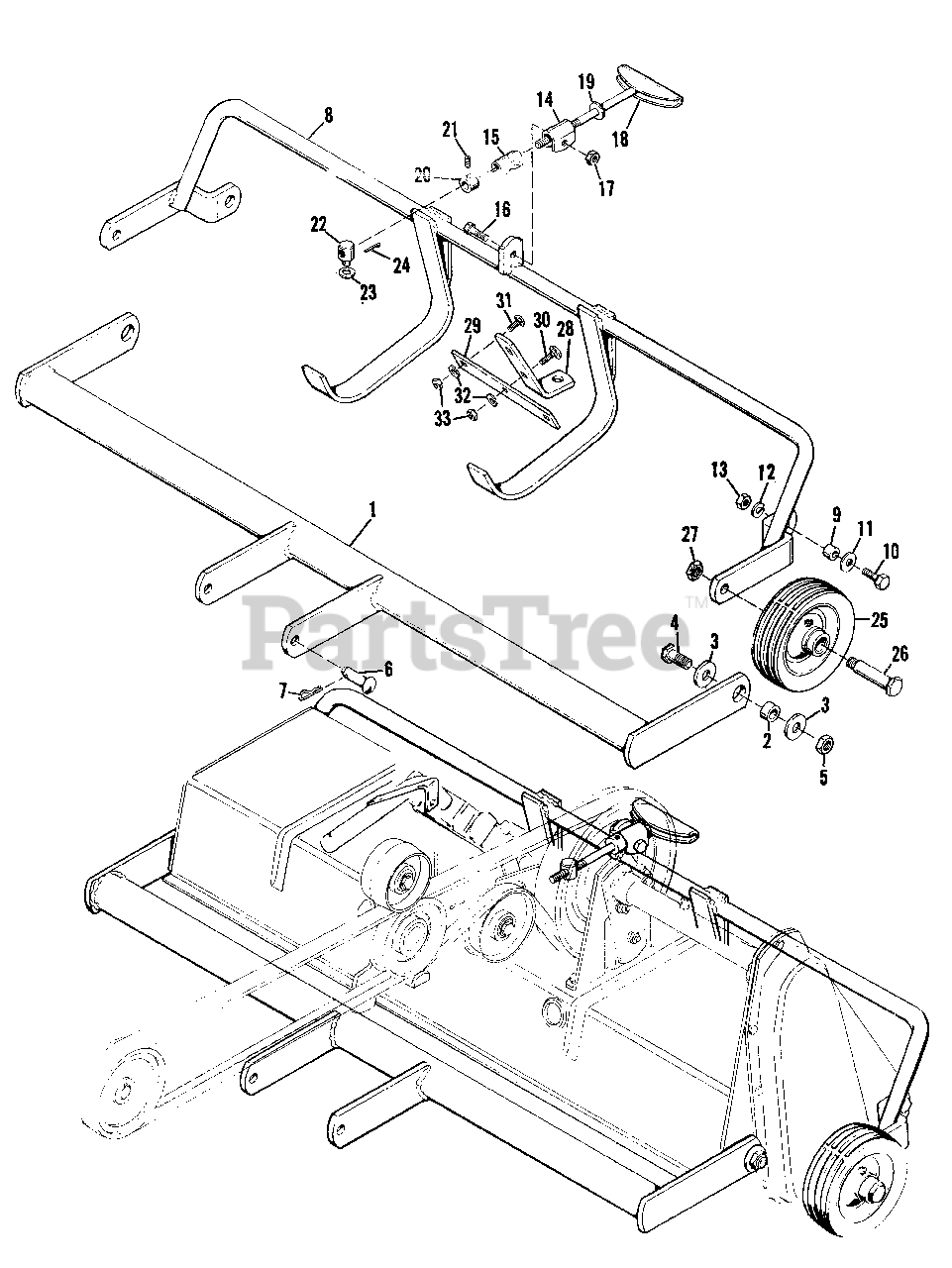

HITCH AND HEIGHT ADJUSTMENT Parts Diagram

  • Title

1

Simplicity 1652583

HITCH ASSEMBLY

$

$

Not available

2

Simplicity 2105386SM

SPACER

$32.99

$

Usually ships in 2-12 days

0

3

Simplicity 2818431

WASHER, Plain, 1/2"

$

$

Not available

4

Simplicity 2817279

CAPSCR EW, Hex 1/2"-13 x 1-1/4" lg.

$

$

Not available

5

Simplicity 922184

NUT, Hex, Full Lock, 1/2"-13

$

$

Not available

6

Simplicity 2155037SM

PIN

$12.99

$

Usually ships in 2-12 days

0

7

Simplicity 2106787

CLIP, Spring

$

$

Not available

8

Simplicity 1652584

ADJUSTER ASSEMBLY

$

$

Not available

9

Snapper 2118335SM

SPACER

$8.99

$

Usually ships in 2-12 days

0

10

Simplicity 2817400

CAPSCREW, Hex 3/8"-16 x 1-1/4" lg.

$

$

Not available

11

Simplicity 1924940SM

WASHER, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 916969

LOCKWASHER, 3/8"

$

$

Not available

13

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 12

0

14

Simplicity 2152050SM

GUIDE, Rod

$10.99

$

Usually ships in 2-12 days

0

15

Simplicity 2121175SM

LINER, Guide

$8.49

$

Usually ships in 2-12 days

0

16

Simplicity 2807729

CAPSCREW, Hex 5/16"-18 x 1-1/4" lg.

$

$

Not available

17

Simplicity 2823362

NUT, Hex, Full Lock 5/16"-18

$

$

Not available

18

Simplicity 2108415

ADJUSTING SCREW ASSEMBLY

$

$

Not available

19

Simplicity 1924940SM

WASHER, Plain, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 105201

COLLAR, Set

$

$

Not available

21

Simplicity 2830545

SCREW, Set 1/4"-20 x 5/16" lg.

$

$

Not available

22

Simplicity 108172

PIVOT

$

$

Not available

23

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

24

Simplicity 2818447

PIN, Cotter 3/32" x 3/4" lg.

$

$

Not available

25

Simplicity 172676

WHEEL & TIRE ASSEMBLY

$

$

Not available

26

Simplicity 172682

BOLT, Wheel

$

$

Not available

27

Simplicity 2824058

NUT, Hex, Full Lock 7/16"-14

$

$

Not available

28

Simplicity 172317

BAR, Tow

$

$

Not available

29

Simplicity 172316

REINFORCER,Tow Bar

$

$

Not available

30

Simplicity 2821158

BOLT, Carriage 5/16"-18 x 1" lg.

$

$

Not available

31

Simplicity 2823346

BOLT, Carriage 5/16"-18 x 3/4" lg.

$

$

Not available

32

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

33

Simplicity 1917372SM

NUT, Hex, Full 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 8

0

34

Simplicity 103031

DECAL, Safety (Not Illustrated)

$

$

Not available
