1690082 - Simplicity Hitch for 42" Deck 42" Rotary Mower Hitch Assembly (1690082) Parts Diagram

Hitch for 42" Deck

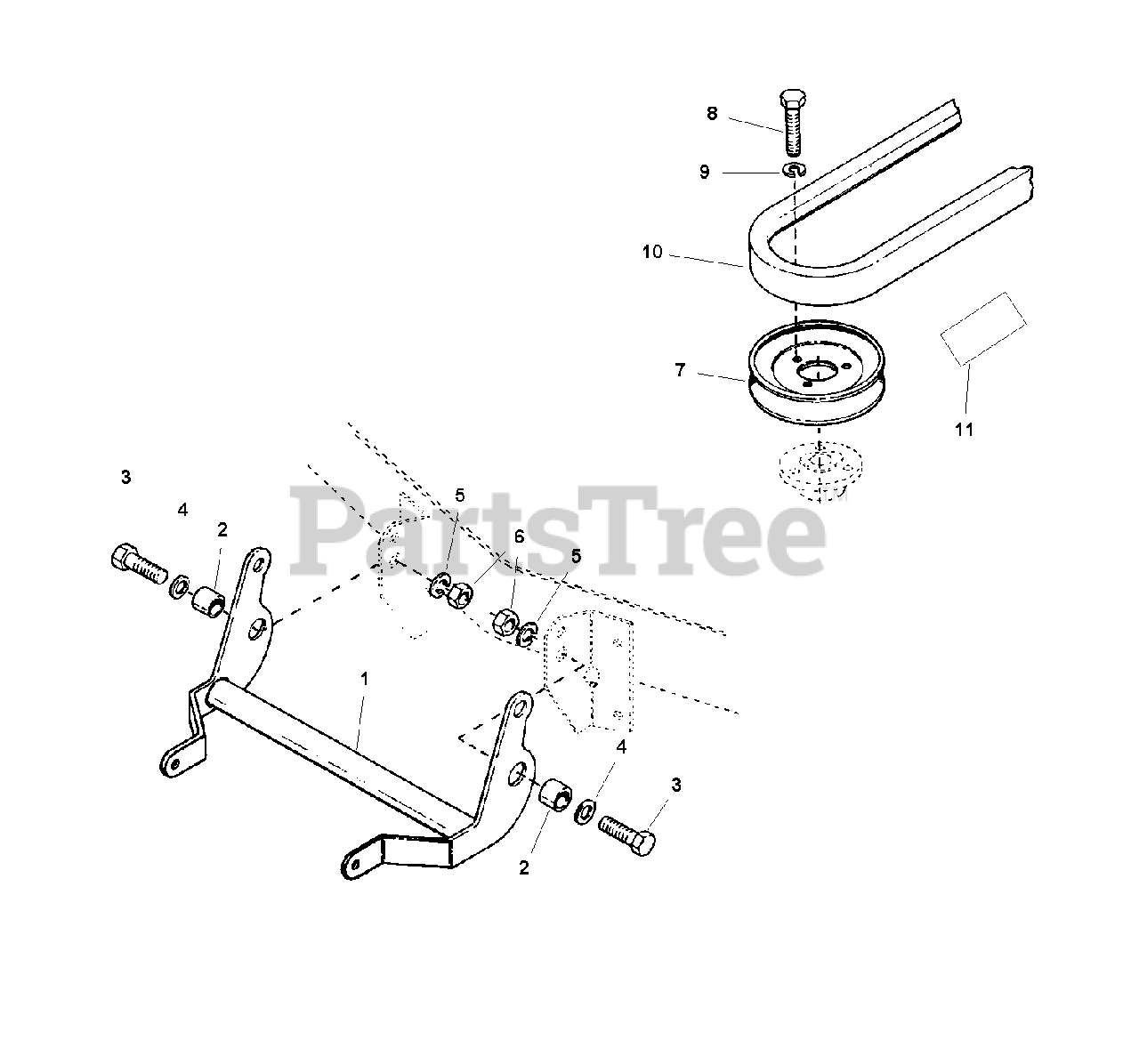

42" Rotary Mower Hitch Assembly (1690082) Parts Diagram

  • Title

1

Simplicity 2172468A

ROCKER ARM ASSEMBLY
(Superseded to 2172468ASM)

$95.99

$

Usually ships in 2-12 days

0

2

Simplicity 2105051

SPACER

$

$

Not available

3

Simplicity 2817279

CAPSCREW, Hex Head, 1/2-13 x 1-1/4

$

$

Not available

4

Simplicity 2818430

WASHER

$

$

Not available

5

Simplicity 2816966

LOCKWASHER

$

$

Not available

6

Simplicity 2816951

NUT, Hex, 1/2-13

$

$

Not available

7

Simplicity 2174189SM

PULLEY

$113.99

$

Usually ships in 2-12 days

0

8

Simplicity 2822606

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$

$

Not available

9

Simplicity 1916965SM

LOCKWASHER
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

10

Simplicity 2176439SM

V-BELT

$34.99

$

Usually ships in 2-12 days

0

11

Simplicity 2174845

DECAL, Installation

$

$

Not available
