1690116 - Simplicity Electric Spout Rotator

Electric Spout Rotator

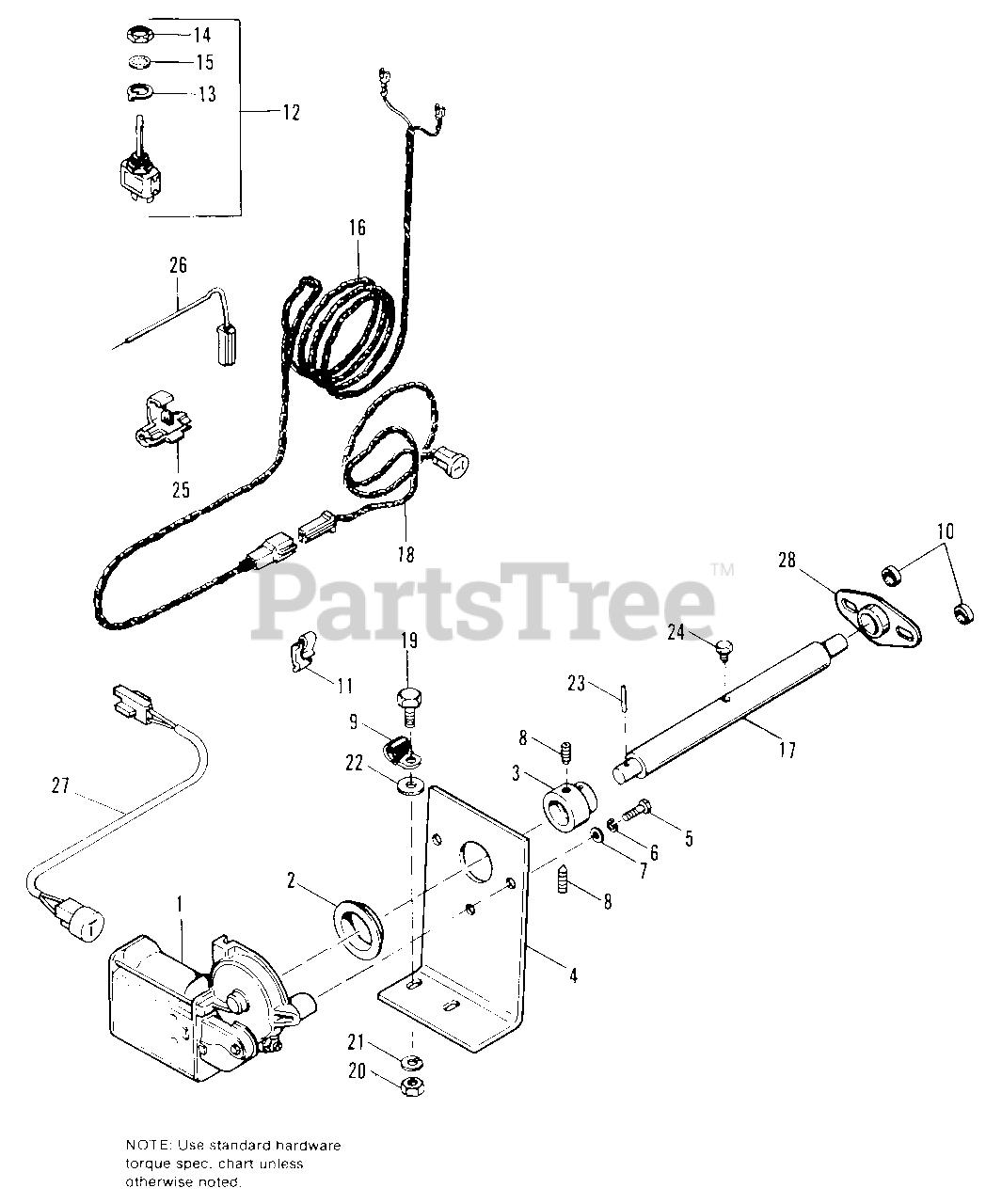

1690116 - Simplicity Electric Spout Rotator > Parts Diagrams (1) > Spout Rotator (Snowthrower)

  • Title
1664115SM

1

SPOUT CONTROL, Motor

Part# 1664115SM

Note: When ordering Ref. No. 1 you must also order Ref. No. 27 unless already equipped.

OEM Warranty Repair Part for Simplicity

Not available

2174072SM

2

BEARING, Flange

Part# 2174072SM

OEM Warranty Repair Part for Simplicity

Not available

2174078SM

3

HUB

Part# 2174078SM

OEM Warranty Repair Part for Simplicity

Not available

2176104SM

4

BRACKET, Motor

Part# 2176104SM

OEM Warranty Repair Part for Simplicity

Not available

1923341SM

5

CAPSCREW, Hex Hd, 1/4-20 x 3/4

Part# 1923341SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.74

1916964SM

6

LOCKWASHER, Spring, 1/4

Part# 1916964SM (Superseded to 704133)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.74

1921319SM

7

WASHER, Plain, 1/4

Part# 1921319SM (Superseded to 703332)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.13

1930547SM

8

SCREW, Hex, Skt Hd, #10-24 x 3/8

Part# 1930547SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.74

122186

9

CLAMP

Part# 122186

OEM Warranty Repair Part for Simplicity

Not available

2165034SM

10

SPACER

Part# 2165034SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $8.05

2172436SM

11

CLIP Cable

Part# 2172436SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.35

2174428SM

12

SWITCH, Spout Control

Part# 2174428SM

OEM Warranty Repair Part for Simplicity

Not available

1650958

13

RING, Locking

Part# 1650958

OEM Warranty Repair Part for Simplicity

Not available

1650959

14

NUT

Part# 1650959

OEM Warranty Repair Part for Simplicity

Not available

1650960

15

LOCKWASHER, Int

Part# 1650960

OEM Warranty Repair Part for Simplicity

Not available

174504

16

HARNESS ASSY, Switch

Part# 174504

OEM Warranty Repair Part for Simplicity

Not available

2176102SM

17

ROD, Spout Control

Part# 2176102SM

OEM Warranty Repair Part for Simplicity

Not available

176306

18

HARNESS, Wiring

Part# 176306

OEM Warranty Repair Part for Simplicity

Not available

1921210SM

19

CAPSCREW, Hex Hd, 3/8-16 x 1

Part# 1921210SM (Superseded to 703407)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $8.83

1916950SM

20

NUT, Hex, 3/8-16

Part# 1916950SM (Superseded to 703577)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.85

1916965SM

21

LOCKWASHER, Spring, 3/8

Part# 1916965SM (Superseded to 703454)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.24

1924940SM

22

WASHER, Plain, 5/16

Part# 1924940SM (Superseded to 703878)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $2.96

2821450

23

PIN, Spring, 5/32 x 1

Part# 2821450

OEM Warranty Repair Part for Simplicity

Not available

1929000SM

24

SCREW, Hex, Wash. Hd, Taptite, 1/4-20 x 3/8

Part# 1929000SM (Superseded to 703583)

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $3.08

1605751SM

25

CONNECTOR

Part# 1605751SM

OEM Warranty Repair Part for Simplicity

Not available

1651147

26

WIRE ASSY

Part# 1651147

OEM Warranty Repair Part for Simplicity

Not available

1664175

27

ADAPTOR, Harness

Part# 1664175

Note: When ordering Ref. No. 1 you must also order Ref. No. 27 unless already equipped.

OEM Warranty Repair Part for Simplicity

Not available

2106491SM

28

BEARING

Part# 2106491SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $6.76
