1690117 - Simplicity Lift Lever Kit Lift Lever Group (0103I01) Parts Diagram

Lift Lever Kit

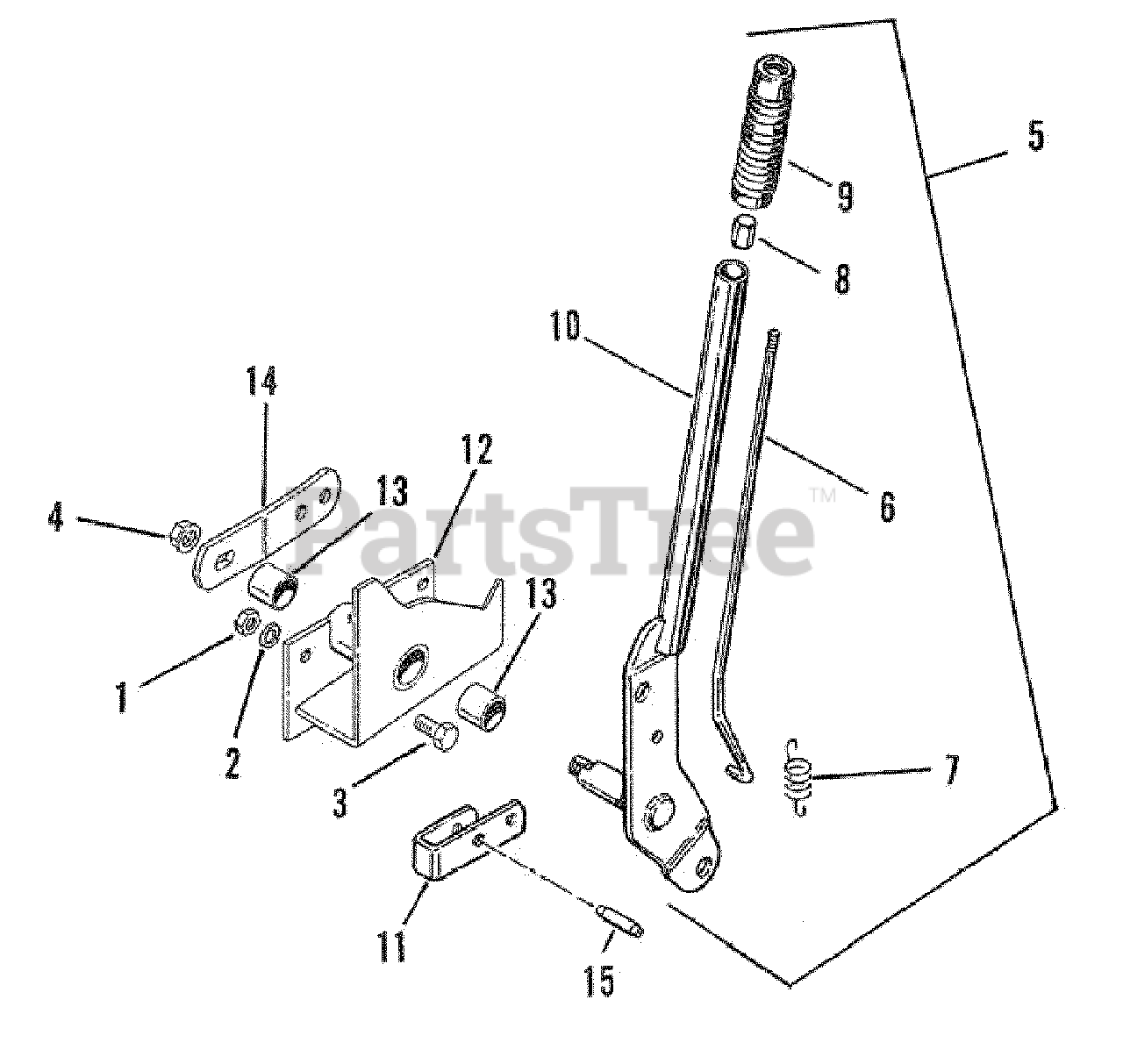

Lift Lever Group (0103I01) Parts Diagram

  • Title

1

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 2 left!

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

3

Simplicity 2819357

CAPSCREW, Hex, 3/8-16 x 7/8

$

$

Not available

4

Simplicity 2830644

NUT, Flange, 1/2-13

$

$

Not available

5

Simplicity 1650613

LIFT LEVER ASSEMBLY

$

$

Not available

6

Simplicity 1650147

ROD, Latch

$

$

Not available

7

Simplicity 1650155SM

SPRING

$7.49

$

Usually ships in 2-12 days

0

8

Simplicity 1650157SM

BUTTON

$7.99

$

In Stock, only 2 left!

0

9

Simplicity 1713995SM

GRIP, Lift Lever

$13.99

$

In Stock, only 1 left!

0

10

Simplicity 1652171

LEVER, Lift

$

$

Not available

11

Simplicity 1652172

LATCH, Lift Lever

$

$

Not available

12

Simplicity 1653508

QUADRANT, Lift Assembly

$

$

Not available

13

Simplicity 2154289SM

BUSHING

$18.99

$

In Stock, Qty 14

0

14

Simplicity 1653510

LINK, Lift Lever

$

$

Not available

15

Simplicity 2818113

PIN, Roll, 3/8 x 1

$

$

Not available
