1690154 - Simplicity Front Light Kit Front Light Kit (4108) Parts Diagram

Front Light Kit

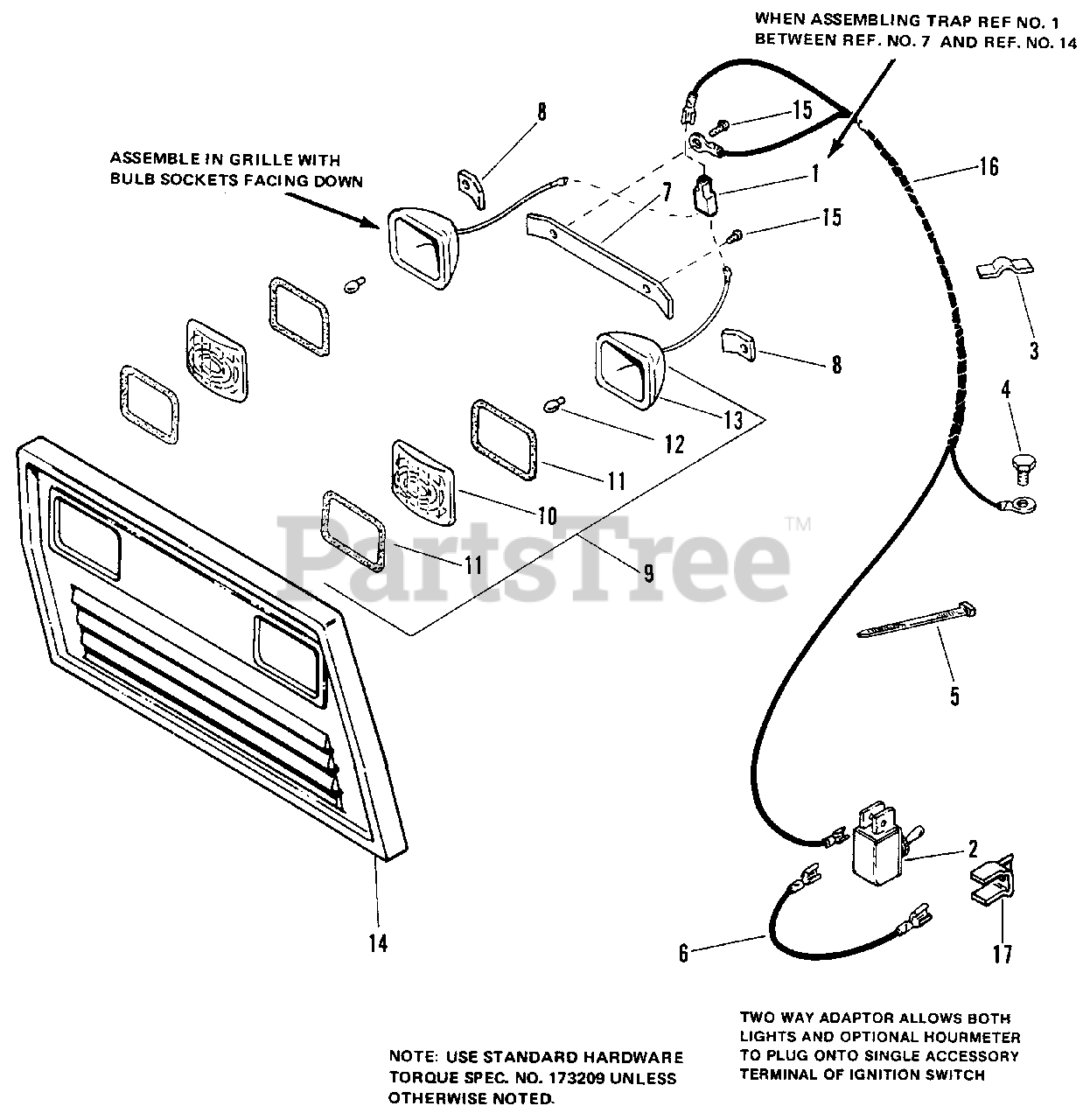

Front Light Kit (4108) Parts Diagram

  • Title

1

Simplicity 122182

CONNECTOR, Insulated

$

$

Not available

2

Simplicity 2122184SM

SWITCH, Toggle

$22.99

$

Usually ships in 2-12 days

0

3

Simplicity 176912

CLIP, Wire

$

$

Not available

4

Simplicity 2827428

SCREW, Hex Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

5

Simplicity 2832747SM

TIE, Cable

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1651147

WIRE ASSEMBLY

$

$

Not available

7

Simplicity 1654635

CLIP, Center Headlight

$

$

Not available

8

Simplicity 1654636

CLIP, Side Headlight

$

$

Not available

9

Simplicity 1665934SM

LIGHT ASSEMBLY

$

$

Not available

10

Simplicity 1665933

LENS, Clear Plastic

$

$

Not available

11

Simplicity 1654662SM

GASKET, Lens

$

$

Not available

12

BULB

$

$

Not available

13

Simplicity 1665934SM

REFLECTOR ASSEMBLY

$

$

Not available

14

Simplicity 1654997

GRILLE

$

$

Not available

15

Simplicity 1654998

SCREW, Rd. Hd., Philips 10-32 x 3/8

$

$

Not available

16

Simplicity 1656071

WIRE ASSEMBLY, Headlights

$

$

Not available

17

Simplicity 2172996

ADAPTER, 2-Way

$

$

Not available
