1690169 - Simplicity 36" Snow Thrower Attachment Push Bar and PTO Group Parts Diagram

36" Snow Thrower Attachment

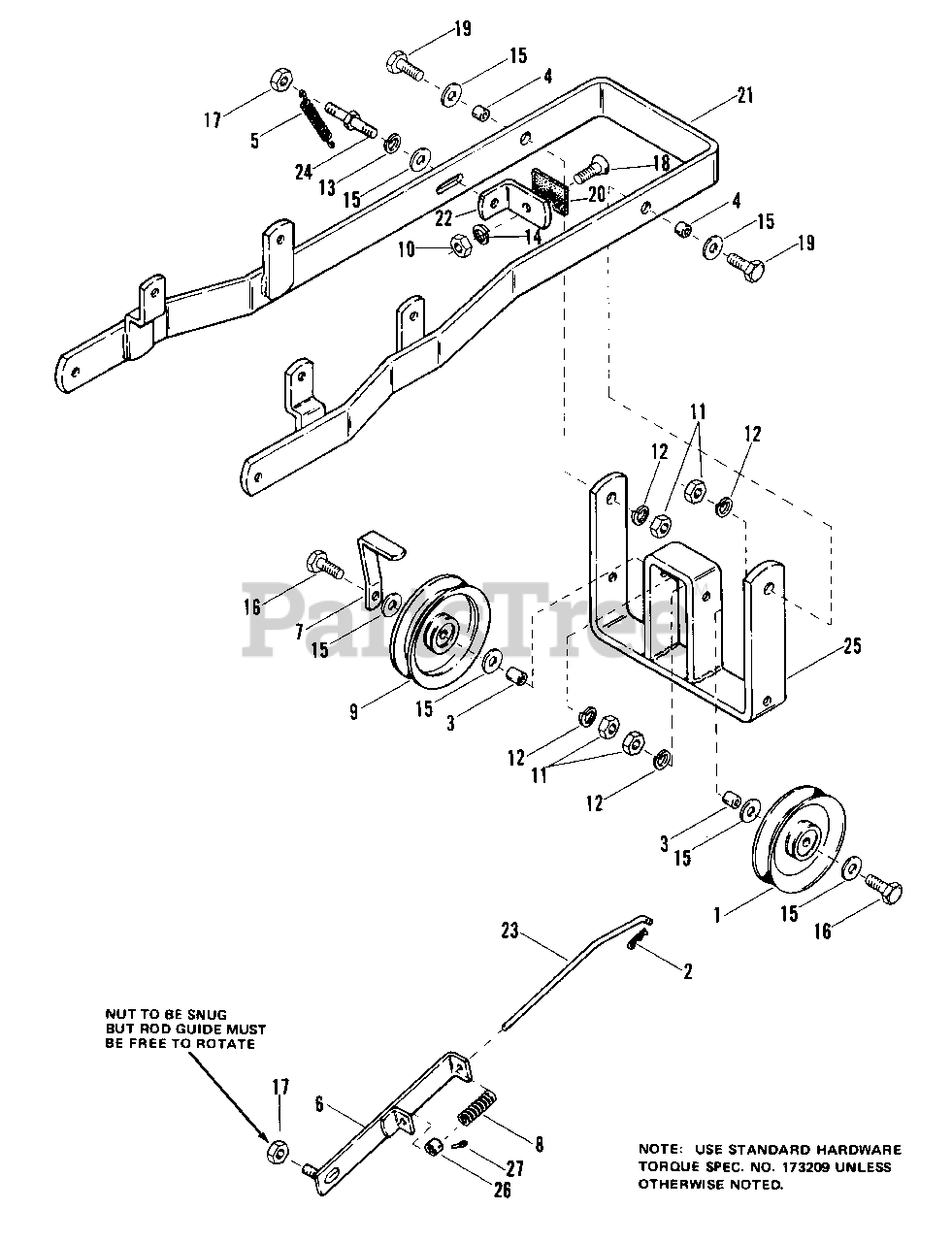

Push Bar and PTO Group Parts Diagram

  • Title

1

Simplicity 2101096SM

PULLEY

$62.99

$

In Stock, only 1 left!

0

2

Simplicity 2106787

SPRING, Clip

$

$

Not available

3

Simplicity 2154177SM

SPACER

$41.99

$

In Stock, only 3 left!

0

4

Simplicity 2158227SM

SPACER

$34.99

$

Usually ships in 2-12 days

0

5

Simplicity 2159159SM

SPRING

$39.99

$

In Stock, only 1 left!

0

6

Simplicity 162034

GUIDE ASSEMBLY, Clutch Rod

$

$

Not available

7

Simplicity 2162115SM

STOP, Belt
(Superseded to 2162115ASM)

$12.99

$

Usually ships in 2-12 days

0

8

Simplicity 1656632SM

SPRING

$

$

Not available

9

Simplicity 2171247SM

PULLEY, Idler

$53.99

$

In Stock, Qty 13

0

10

Simplicity 2816621

NUT, No. 10-24

$

$

Not available

11

Simplicity 2816950SM

NUT, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 1 left!

0

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

13

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

14

Simplicity 2817365

LOCKWASHER, No. 10

$

$

Not available

15

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

16

Simplicity 2819361

CAPSCREW, Hex Hd., 3/8-16 x 1 3/4

$

$

Not available

17

Simplicity 2823422

NUT, Full Lock, 5/16-18

$

$

Not available

18

Simplicity 2826267SM

SCREW, Flat Hd., No. 10-24 x 5/8

$2.99

$

Usually ships in 2-12 days

0

19

Simplicity 2830579

CAPSCREW, Hex Hd., 3/8-16 x 1 1/4

$

$

Not available

20

Simplicity 1610590SM

BRAKE SHEAVE

$48.99

$

Usually ships in 2-12 days

0

21

Simplicity 1654779

PUSH BAR ASSEMBLY

$

$

Not available

22

Simplicity 1654780

BRACKET

$

$

Not available

23

Simplicity 1654781

ROD

$

$

Not available

24

Simplicity 1655037

STUD

$

$

Not available

25

Simplicity 1655333

PIVOT PULLEY ASSEMBLY

$

$

Not available

26

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

27

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available
