1690179 - Simplicity Drive Clutch Drive Clutch Parts Diagram

Drive Clutch

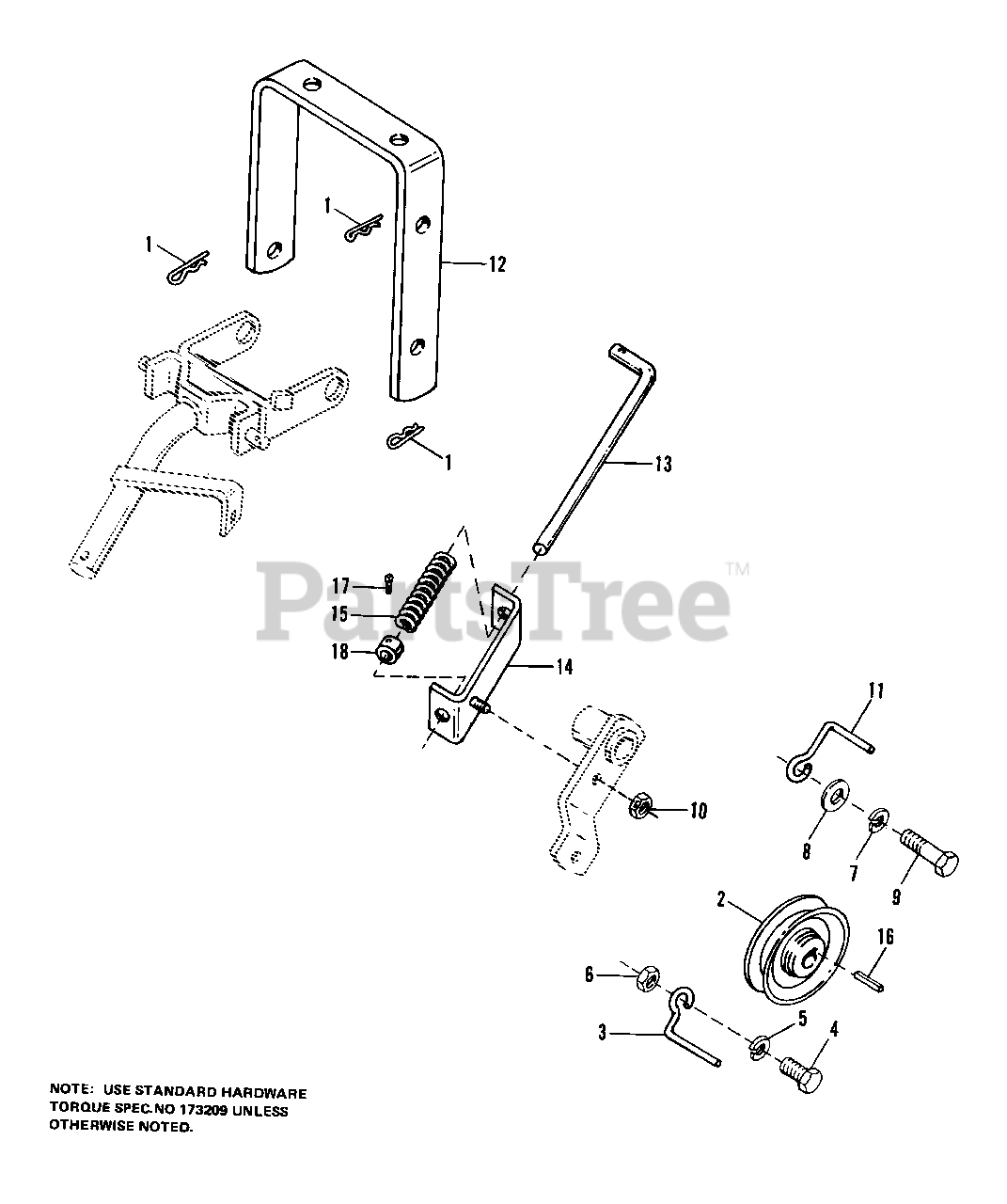

Drive Clutch Parts Diagram

  • Title

1

Simplicity 2106787

CLIP, Spring

$

$

Not available

2

Simplicity 2164202SM

PULLEY

$61.99

$

Usually ships in 2-12 days

0

3

Simplicity 2167032SM

STOP, Belt

$31.99

$

Usually ships in 2-12 days

0

4

Simplicity 2816431

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

5

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2818199

LOCKWASHER, Spring, 7/16

$

$

Not available

8

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

9

Simplicity 2820677

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4

$

$

Not available

10

Simplicity 2823362

NUT, Hex Lock, 5/16-18

$

$

Not available

11

Simplicity 1606014

STOP, Belt

$

$

Not available

12

Simplicity 105303

HANDLE, Clutch

$

$

Not available

13

Simplicity 105343

ROD, Clutch

$

$

Not available

14

Simplicity 2158406

GUIDE ASSY, Rod

$

$

Not available

15

Simplicity 162065

SPRING

$

$

Not available

16

Simplicity 2805850SM

KEY

$2.49

$

Usually ships in 2-12 days

0

17

Simplicity 2828804

SETSCREW, Sq. Hd., Cup Pt., 1/4-20 x 3/8

$

$

Not available

18

Simplicity 1729276SM

COLLAR, Set

$

$

Not available
