1690194 - Simplicity 30" Rotary Tiller Attachment Deflector & Tine Group Parts Diagram

30" Rotary Tiller Attachment

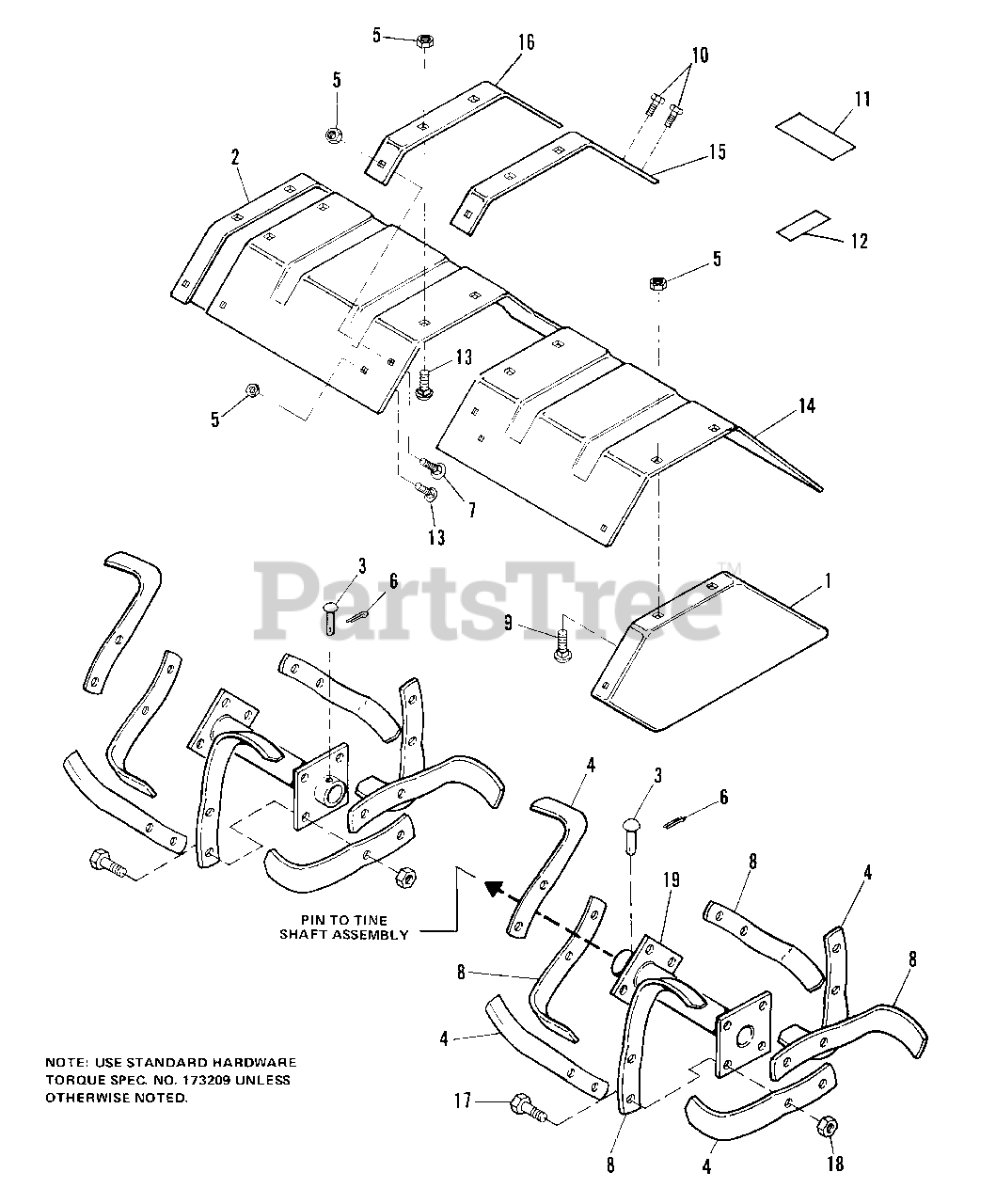

Deflector & Tine Group Parts Diagram

  • Title

1

Simplicity 2105273A

PLATE END, Deflector, L.H.

$

$

Not available

2

Simplicity 2105274A

PLATE END, Deflector, R.H.

$

$

Not available

3

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

4

Simplicity 1729271SM

TINE BLADE, L.H.

$

$

Not available

5

Simplicity 2827557

NUT, Hex, Flange, 5/16-18

$

$

Not available

6

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

7

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

8

Simplicity 1729272SM

TINE BLADE, R.H.

$28.99

$

Usually ships in 2-12 days

0

9

Simplicity 923700

BOLT, Carriage, 5/16-18 x 1/2

$

$

Not available

10

Simplicity 2825359

SCREW, Taptite, 5/16-18 x 3/4

$

$

Not available

11

Simplicity 1679700SM

DECAL, Safety

$18.99

$

Usually ships in 2-12 days

0

12

Simplicity 1657318

DECAL, Drive Control

$

$

Not available

13

Simplicity 930685

BOLT, Carriage, 5/16-18 x 5/8

$

$

Not available

14

Simplicity 1655658

DEFLECTOR

$

$

Not available

15

Simplicity 1656087

BAR, Reinf., L.H.

$

$

Not available

16

Simplicity 1656088

BAR, Reinf., R.H.

$

$

Not available

17

Simplicity 920488

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

18

Simplicity 2828867

LOCKNUT, Hex, 7/16-20

$

$

Not available

19

Simplicity 1656040SM

HUB & PLATE ASSY, Tine

$89.99

$

Usually ships in 2-12 days

0
