1690195 - Simplicity Lift Lever Lift Lever Parts Diagram

Lift Lever

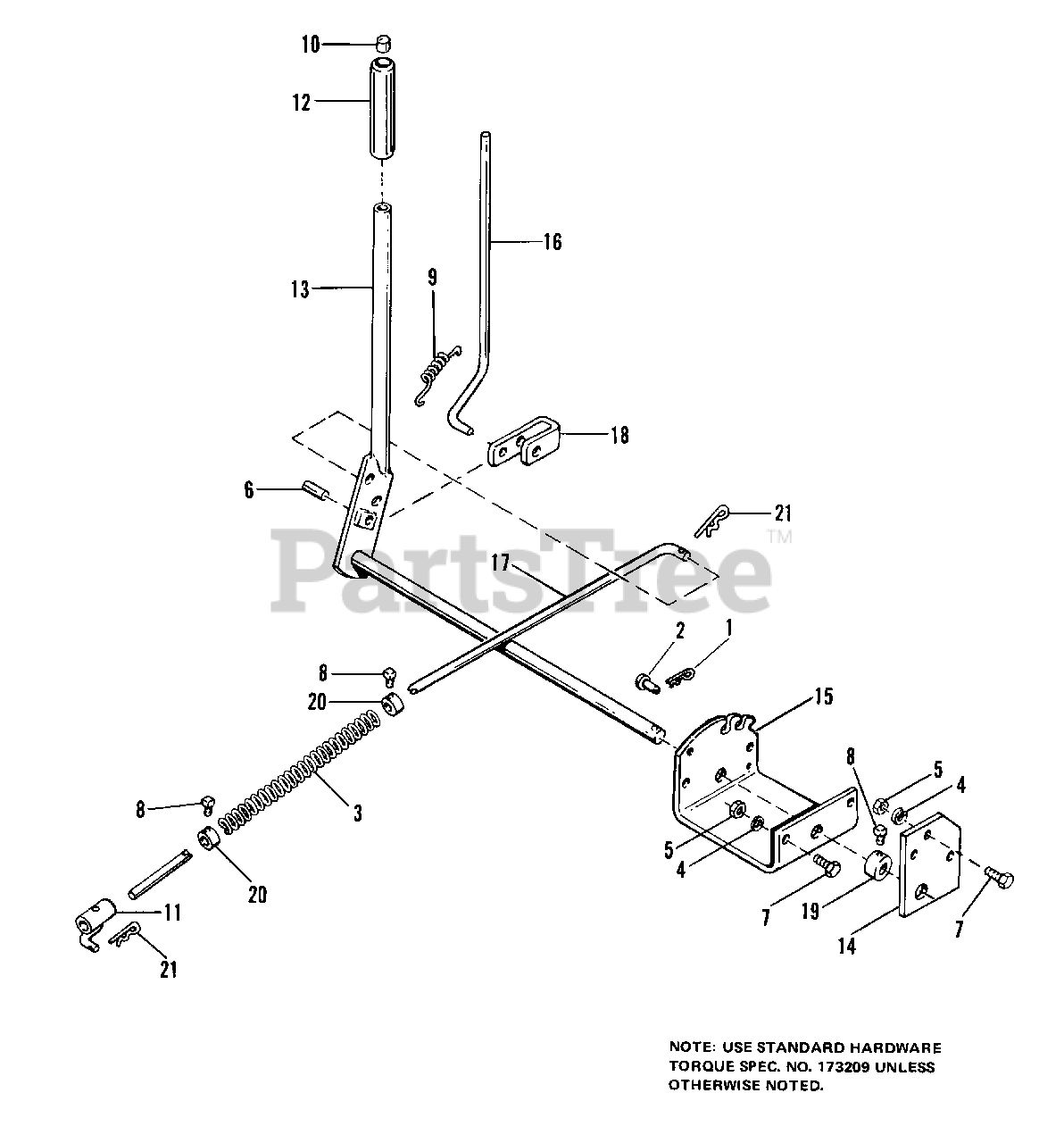

Lift Lever Parts Diagram

  • Title

1

Simplicity 2106787

CLIP, Spring

$

$

Not available

2

Simplicity 1708298SM

PIN

$

$

Not available

3

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

4

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2818113

PIN, Spring, 3/8 x 1

$

$

Not available

7

Simplicity 2821332

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

8

Simplicity 2828709

SCREW, Set, Sq. Hd., 5/16-18 x 3/8

$

$

Not available

9

Simplicity 1651055

SPRING

$

$

Not available

10

Simplicity 1650157SM

BUTTON

$7.49

$

In Stock, only 1 left!

0

11

Simplicity 1651496

GUIDE ASSY, Rod

$

$

Not available

12

Simplicity 1713995SM

GRIP, Lift Lever

$12.99

$

In Stock, only 1 left!

0

13

Simplicity 1657840

LEVER ASSY, Lift

$

$

Not available

14

Simplicity 1655986

SUPPORT, Shaft

$

$

Not available

15

Simplicity 1665591

QUADRANT, Lift
(Superseded to 1665591ASM)

$

$

Not available

16

Simplicity 1656737

ROD, Latch

$

$

Not available

17

Simplicity 1656741

ROD, Lift

$

$

Not available

18

Simplicity 1657648SM

LATCH, Lever

$

$

Not available

19

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

20

Simplicity 1729282SM

COLLAR, Set

$16.99

$

Usually ships in 2-12 days

0

21

Simplicity 2106788

CLIP, Hair Pin

$

$

Not available
