1690210 - Simplicity 42" Mower Deck 42" Mower Deck & Arbor Group - Diagram 2 Parts Diagram

42" Mower Deck

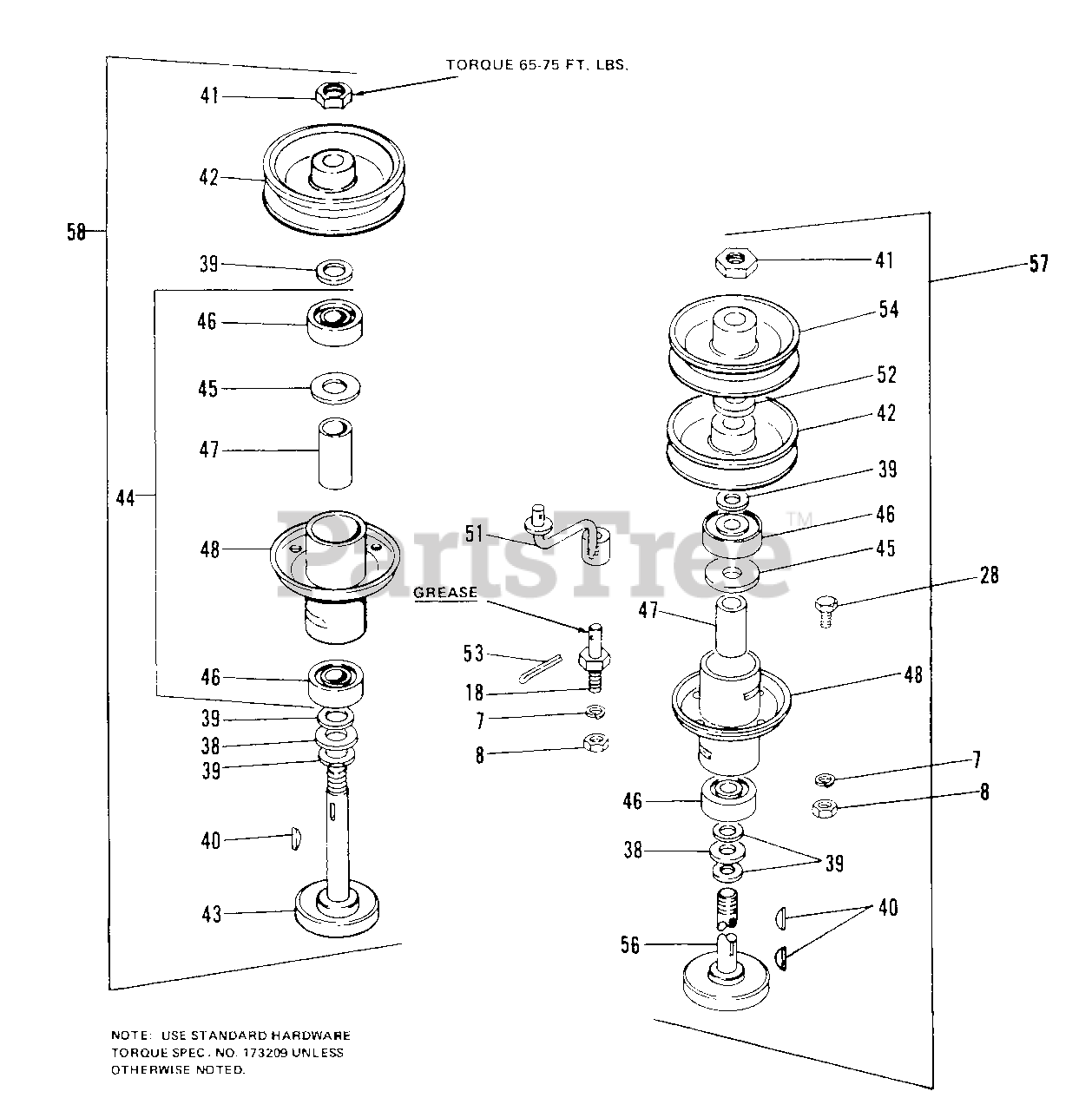

42" Mower Deck & Arbor Group - Diagram 2 Parts Diagram

  • Title

7

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

8

Simplicity 1917372SM

NUT, Hex, 5/l6-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 8

0

18

Simplicity 1655992

PIN, Pivot

$

$

Not available

28

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

38

Simplicity 2108257SM

WASHER

$6.99

$

In Stock, Qty 10

0

39

Simplicity 2108472

WASHER

$

$

Not available

40

Simplicity 2818312SM

KEY, Woodruff. No. 61
(Superseded to 703891)

$5.49

$

In Stock, Qty 8

0

41

Simplicity 2822133

NUT, Flex Lock, 3/4-16

$

$

Not available

42

Simplicity 1602881SM

PULLEY

$142.99

$

Usually ships in 2-12 days

0

43

Simplicity 1607367SM

ARBOR ASSY, Side

$164.99

$

Usually ships in 2-12 days

0

44

Simplicity 1655073SM

TUBE & ARBOR ASSY, w/Bearings

$

$

Not available

45

Simplicity 2108134

RING, Backing

$

$

Not available

46

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

47

Simplicity 1602265SM

SPACER

$15.99

$

Usually ships in 2-12 days

0

48

Simplicity 1655073SM

TUBE & ARBOR ASSY

$

$

Not available

51

Simplicity 1655993

BAR ASSY, Brake

$

$

Not available

52

Simplicity 2825084

WASHER, Plain, 3/4

$

$

Not available

53

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

54

Simplicity 1655996

PULLEY, Drive

$

$

Not available

56

Simplicity 1607366SM

ARBOR, Center

$202.99

$

Usually ships in 2-12 days

0

57

Simplicity 1685065

ARBOR KIT, Center

$

$

Not available

58

Simplicity 1685078SM

ARBOR KIT, Outside

$466.99

$

Usually ships in 2-12 days

0
