1690226 - Simplicity Vacuum Collector Vacuum Collector Misc. Group Parts Diagram

Vacuum Collector

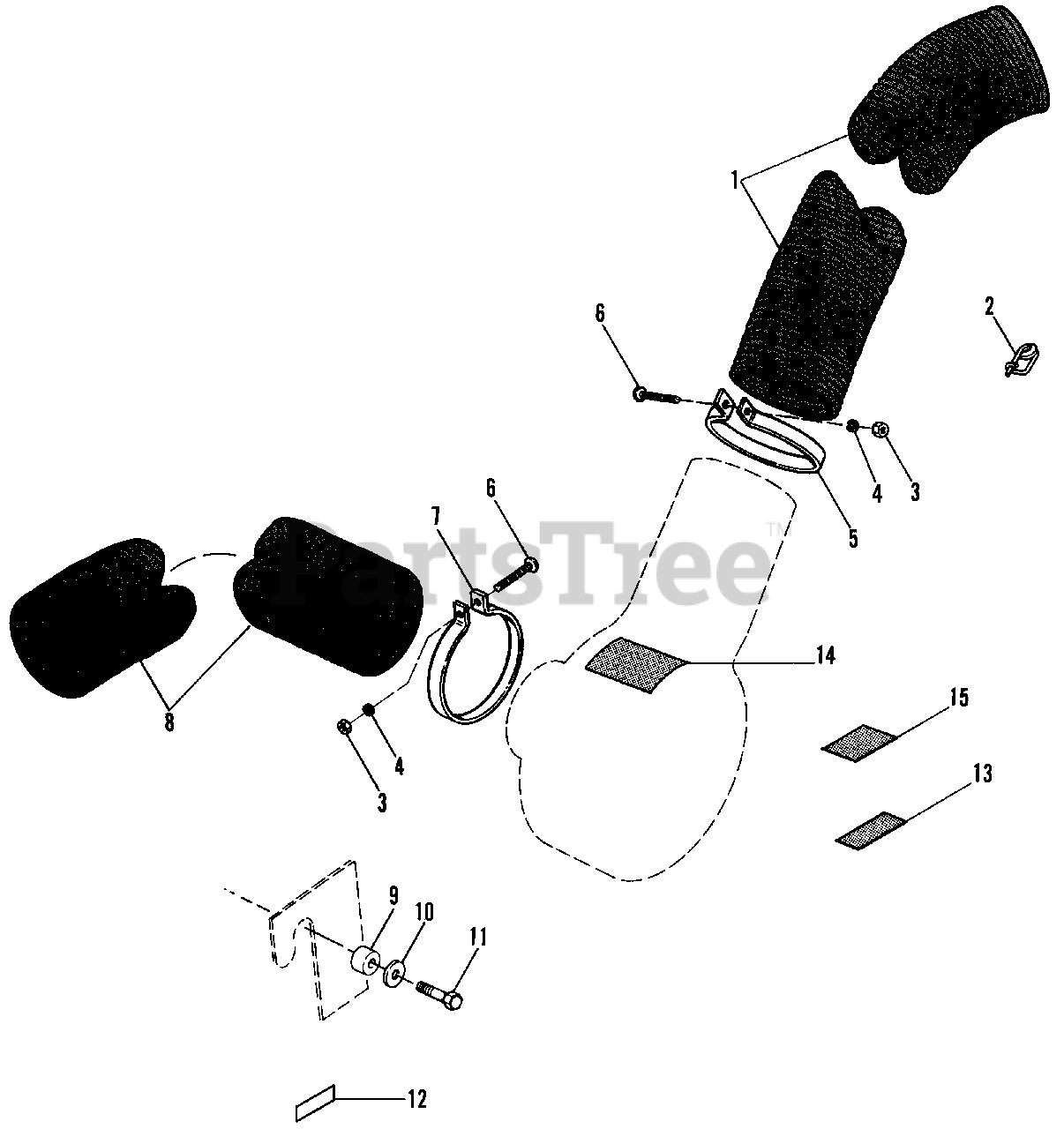

Vacuum Collector Misc. Group Parts Diagram

  • Title

1

Simplicity 1669967SM

HOSE ASSY., Outlet, 6" Dia.

$256.99

$

Usually ships in 2-12 days

0

2

Simplicity 2176012SM

CLIP, Pin, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

4

Simplicity 1916964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 2123067

CLAMP, Hose, 6"

$

$

Not available

6

Simplicity 1928866

SCREW, Rd. Hd., 1/4-20 x 3

$

$

Not available

7

Simplicity 123065

CLAMP, Hose, 7"

$

$

Not available

8

Simplicity 1657189SM

HOSE ASSY., Inlet, 7" Dia.

$376.99

$

Usually ships in 2-12 days

0

9

Simplicity 2158227SM

SPACER

$32.99

$

In Stock, only 1 left!

0

10

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

12

PLATE, I.D.

$

$

Not available

13

Simplicity 1657137

DECAL, Throttle

$

$

Not available

14

Simplicity 1657149

DECAL, Warning

$

$

Not available

15

Simplicity 1657931

DECAL, Muffler

$

$

Not available
