1690229 - Simplicity Rear Grass Catcher Rear Grass Catcher Group Parts Diagram

Rear Grass Catcher

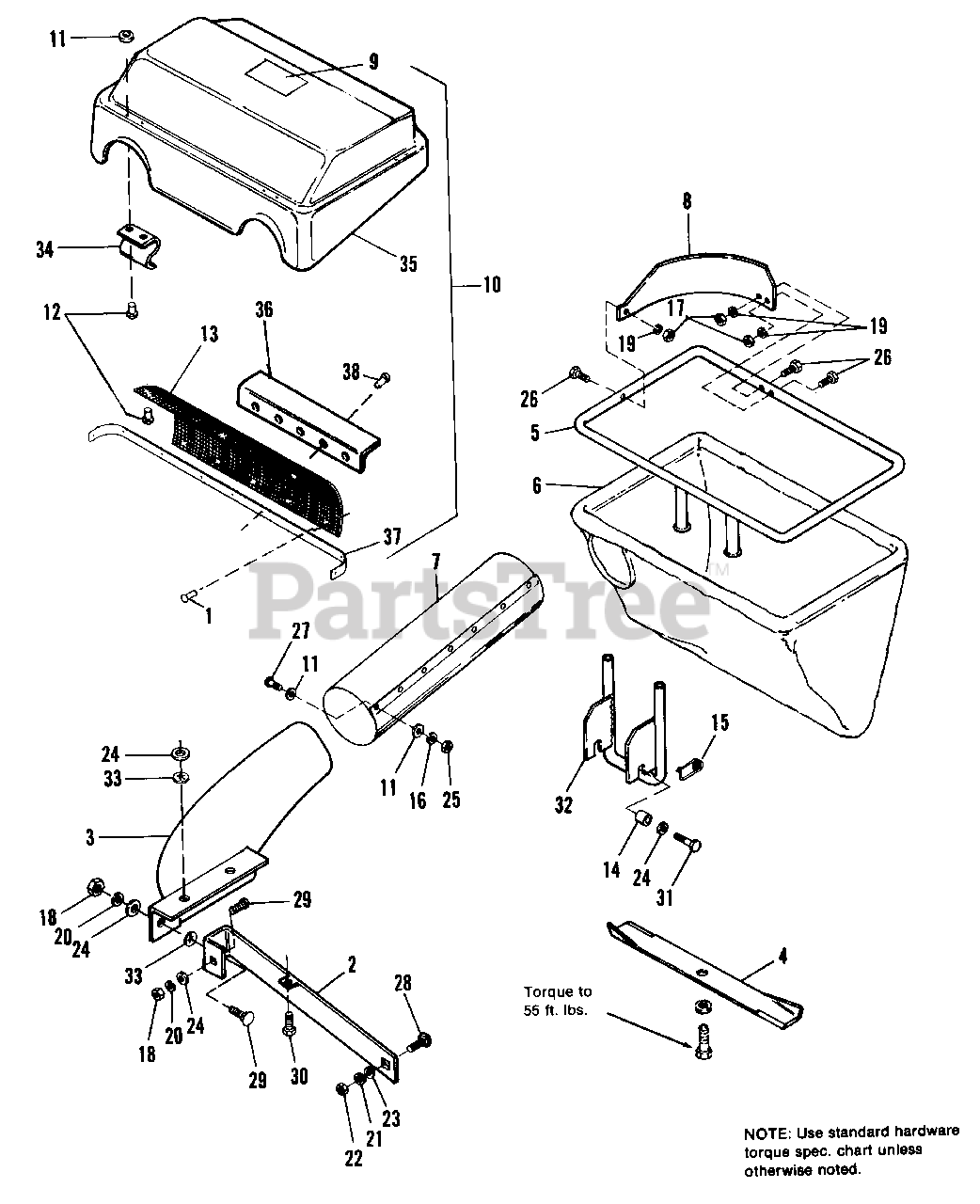

Rear Grass Catcher Group Parts Diagram

  • Title

1

Simplicity 922470

RIVET, Pop, 3/16 x 21/32

$

$

Not available

2

Simplicity 1656053ASM

BAFFLE ASSY., Discharge

$84.99

$

Usually ships in 2-12 days

0

3

Simplicity 1656446

ADAPTOR, Mower

$

$

Not available

4

Simplicity 1671565ASM

BLADE
(Superseded to 1726357ASM)

$27.99

$

In Stock, only 4 left!

0

5

Simplicity 1656599

FRAME ASSY., Bag

$

$

Not available

6

Simplicity 1667168SM

BAG, Grass

$55.99

$

Usually ships in 2-12 days

0

7

Simplicity 1668347SM

TUBE, Discharge

$

$

Not available

8

Simplicity 1656980

DEFLECTOR

$

$

Not available

9

Simplicity 1656982

DECAL, Warning

$

$

Not available

10

Simplicity 1667165

COVER ASSY.

Note: Ref. No. 10 Includes Ref. Nos. 11, 12, 13, 34, 35, 36, 37, 38 & 39.

$

$

Not available

11

Simplicity 2810531

WASHER, Rivet, 3/16

$

$

Not available

12

Simplicity 933075

RIVET, Pop, 3/16 x 13/32

$

$

Not available

13

Simplicity 1667166

SCREEN

$

$

Not available

14

Simplicity 2158227SM

SPACER

$32.99

$

In Stock, only 1 left!

0

15

Simplicity 2176012SM

PIN, Clip, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1909055SM

LOCKWASHER, #10

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

18

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

19

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

20

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

21

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 2817377

WASHER, 1/4

$

$

Not available

24

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 2817415

NUT, Hex, #10-32

$

$

Not available

26

Simplicity 2821961

CAPSCREW, Hex, 1/4-20 x 1-1/4

$

$

Not available

27

Simplicity 922121

SCREW, Phillips #10-32 x 3/8

$

$

Not available

28

Simplicity 2831333

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

29

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

30

Simplicity 2824856

SCREW, Hex, Taptite, 5/16-18 x 1

$

$

Not available

31

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

32

Simplicity 1656620

SUPPORT ASSY., Frame

$

$

Not available

33

Simplicity 2831942

NUT, Push On

$

$

Not available

34

Simplicity 1656684

CLIP, Cover

$

$

Not available

35

COVER (See Ref. No. 10)

$

$

Not available

36

Simplicity 1668173

ANGLE, Screen

$

$

Not available

37

Simplicity 1667167

BRACE

$

$

Not available

38

Simplicity 2820466

RIVET, Tubular, 3/16 x 3/8

$

$

Not available
