1690248 - Simplicity 30" Mower Deck 30" Mower Controls & Misc. Group Parts Diagram

30" Mower Deck

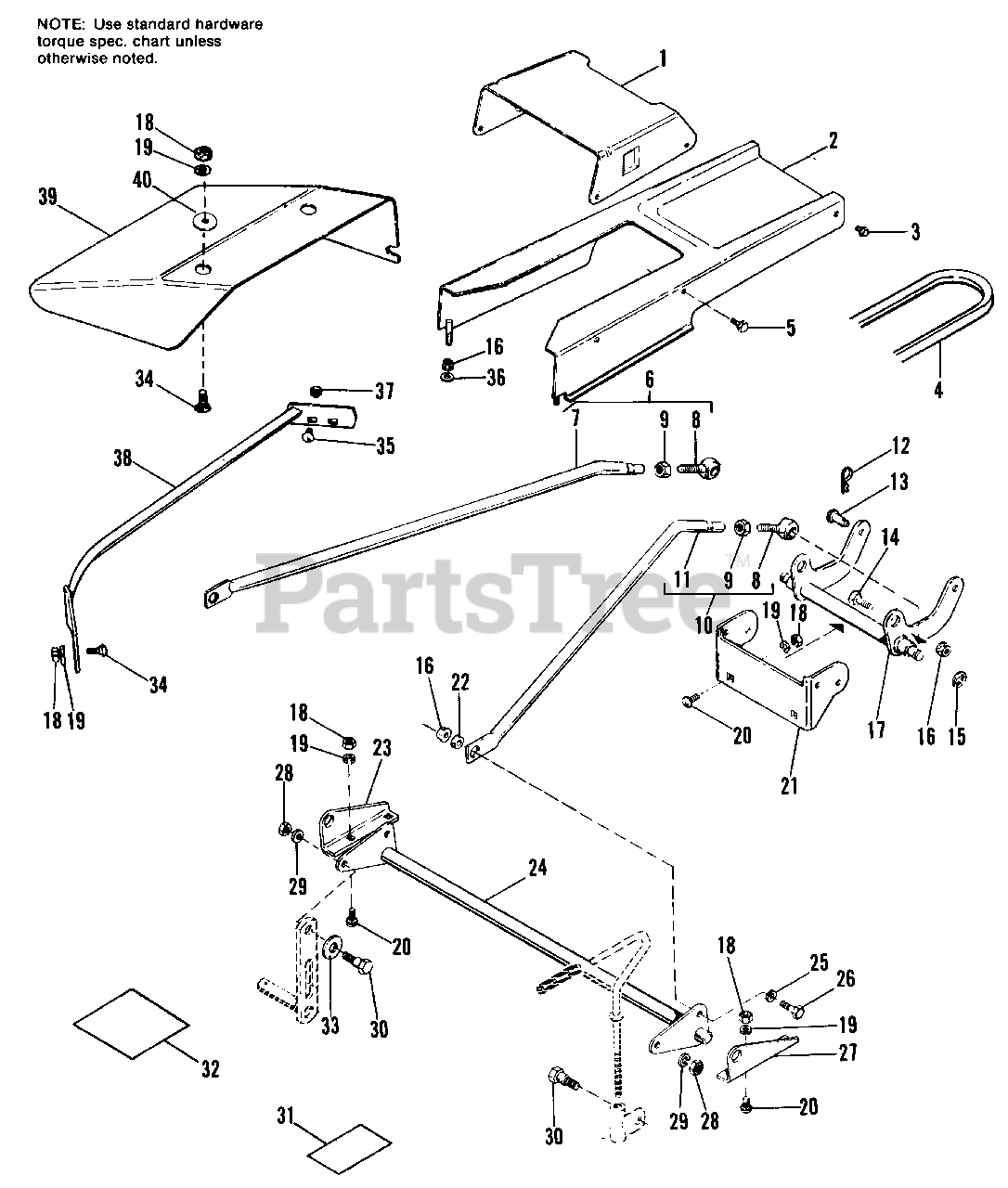

30" Mower Controls & Misc. Group Parts Diagram

  • Title

1

Simplicity 176791

COVER, Upper

$

$

Not available

2

Simplicity 1609032

COVER ASSY., Lower

$

$

Not available

3

Simplicity 928730

SCREW, Hex, Washer Hd., Taptite, 3/8-16 x 1/2

$

$

Not available

4

Simplicity 2174364SM

V-BELT, 49.1"

$31.99

$

In Stock, only 1 left!

0

5

Simplicity 2829000

SCREW, Hex, Washer Hd., Taptite, 1/4-20 x 3/8

$

$

Not available

6

Simplicity 1652861

ARM ASSY., Adjusting, R.H.

$

$

Not available

7

Simplicity 176736

ARM, Adjusting, R.H.

$

$

Not available

8

Simplicity 2157215SM

EYEBOLT

$

$

Not available

9

Simplicity 2819262

LOCKNUT, Jam, 1/2-20

$

$

Not available

10

Simplicity 1652862

ARM ASSY., Adjusting, L.H.

$

$

Not available

11

Simplicity 175942

ARM, Adjusting, L.H.

$

$

Not available

12

Simplicity 2106788

SPRING, Clip

$

$

Not available

13

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 20+

0

14

Simplicity 108711

BOLT, Shoulder

$

$

Not available

15

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Simplicity 1608947

ARM ASSY., Link

$

$

Not available

18

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 930685

BOLT, Carriage, 5/16-18 x 5/8

$

$

Not available

21

Simplicity 1608940

BRACKET, Mower

$

$

Not available

22

Simplicity 2153081

SPACER

$

$

Not available

23

Simplicity 176769

BRACKET, Pivot, L.H.

$

$

Not available

24

Simplicity 1608949

ARM ASSY., Control

$

$

Not available

25

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

27

Simplicity 176770

BRACKET, Pivot, R.H.

$

$

Not available

28

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

29

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

30

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

31

Simplicity 1704276SM

DECAL, Danger

$

$

Not available

32

Simplicity 1704277SM

DECAL, Danger
(Superseded to 7101665YP)

$14.99

$

In Stock, only 2 left!

0

33

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

34

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

35

Simplicity 923700

BOLT, Carriage, 5/16-18 x 1/2

$

$

Not available

36

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

37

Simplicity 2828698

LOCKNUT, Jam, 5/16-18

$

$

Not available

38

Simplicity 1608374

GUARD ASSY., Stone

$

$

Not available

39

Simplicity 1651492

DEFLECTOR

$

$

Not available

40

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 15

0
