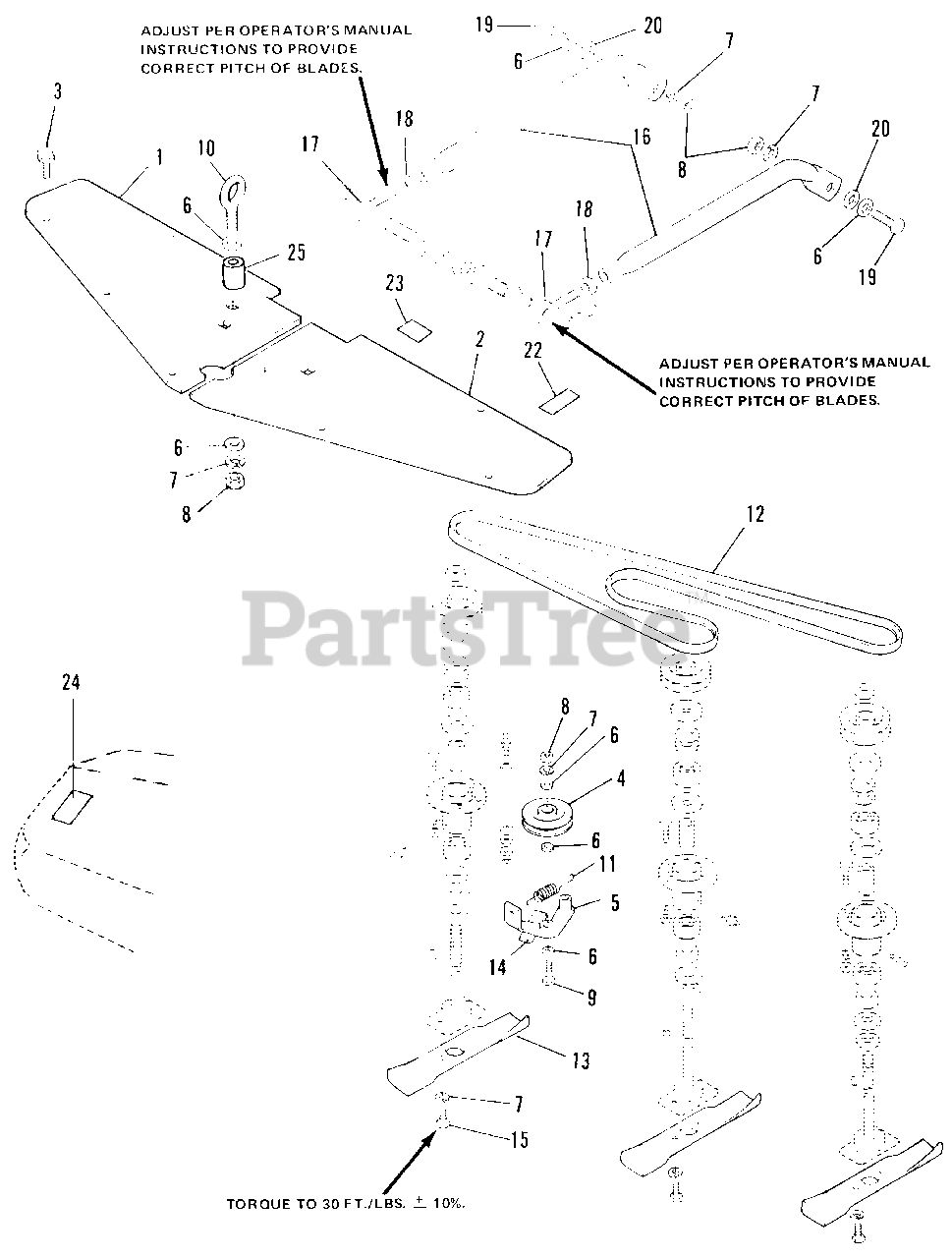

1690252 - Simplicity 42" Mower Deck 42" Cover Drive & Bail Group Parts Diagram

42" Mower Deck

42" Cover Drive & Bail Group Parts Diagram

  • Title

1

Simplicity 172049

COVER, R.H.

$

$

Not available

2

Simplicity 172414

COVER, L.H.

$

$

Not available

3

Simplicity 2829000

SCREW, Hex Hd., Self-Tapping, 1/4-20 x 3/8

$

$

Not available

4

Simplicity 2108386SM

PULLEY, Idler

$

$

Not available

5

Simplicity 2108416SM

LEVER ASSY, Idler
(Superseded to 2108416ASM)

$59.99

$

Usually ships in 2-12 days

0

6

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

8

Simplicity 2816950SM

NUT, Hex Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

9

Simplicity 2108418

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

10

Simplicity 2171815SM

EYEBOLT

$54.99

$

In Stock, only 1 left!

0

11

Simplicity 2154369SM

SPRING

$17.99

$

In Stock, only 1 left!

0

12

Simplicity 2108209

"V" BELT, Blade Drive

$

$

Not available

13

Simplicity 2108298

BLADE

$

$

Not available

14

Simplicity 158450

GASKET, Felt

$

$

Not available

15

Simplicity 2822586SM

CAPSCREW, Hex Hd, 3/8-16 x 5/8

$2.99

$

In Stock, Qty 5

0

16

Simplicity 1651520SM

ARM, Adjusting

$86.99

$

Usually ships in 2-12 days

0

17

Simplicity 2157215SM

EYEBOLT

$

$

Not available

18

Simplicity 2819262

NUT, Hex Jam, 1/2-20

$

$

Not available

19

Simplicity 2807731

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

20

Simplicity 2153073

SPACER

$

$

Not available

21

Simplicity 2176151

FlLM, Safety

$

$

Not available

22

Simplicity 2174845

FILM, Belt Installation

$

$

Not available

23

Simplicity 2176720

DECAL, Caution

$

$

Not available

24

Simplicity 1729274SM

RACE, Inner

$13.99

$

Usually ships in 2-12 days

0
