1690252 - Simplicity 42" Mower Deck 42" Housing & Arbor Group Parts Diagram

42" Mower Deck

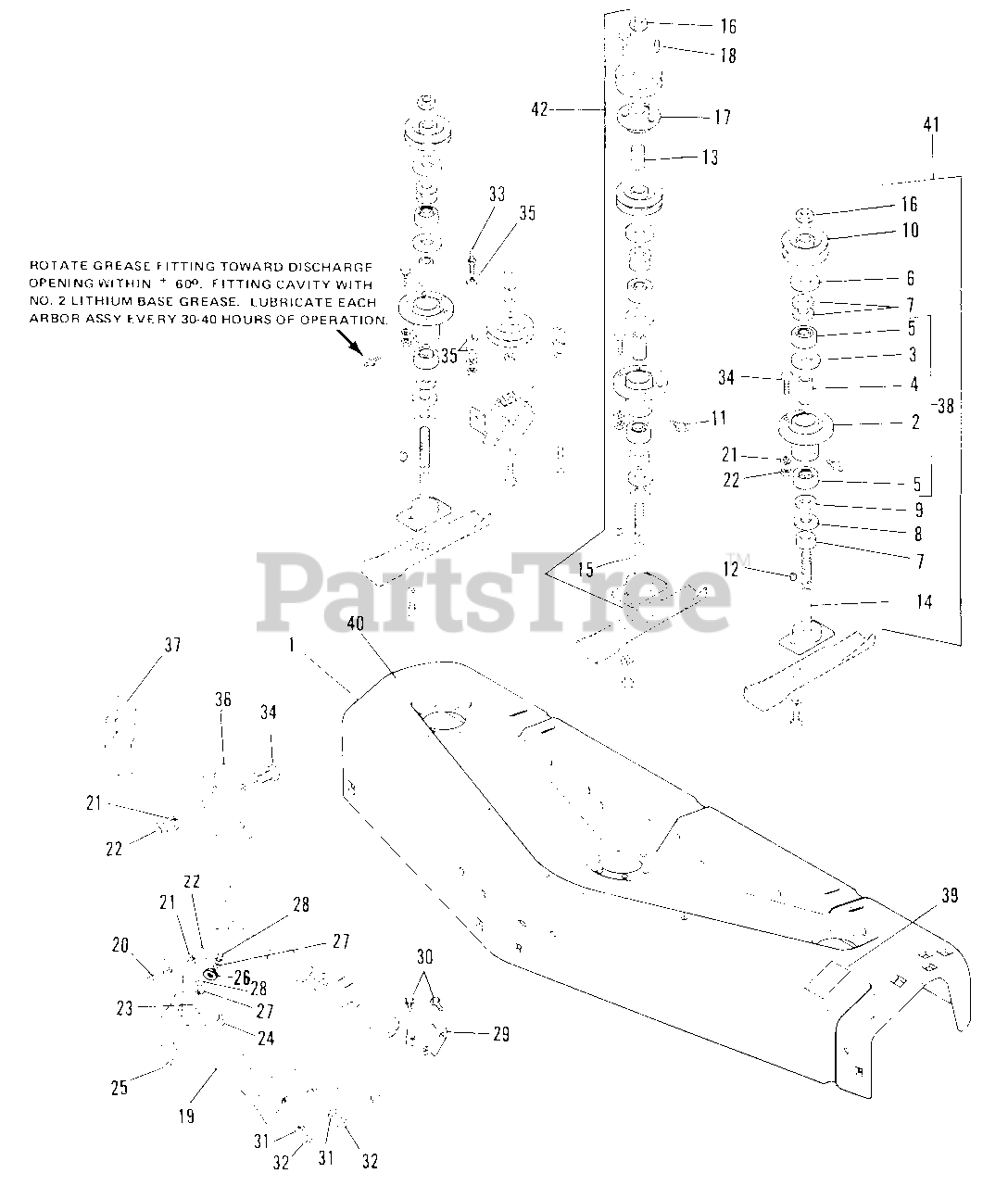

42" Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 2103302SM

HOUSING, 42"

$335.99

$

Usually ships in 2-12 days

0

2

Simplicity 2108679

TUBE ASSY

$

$

Not available

3

Simplicity 2108134

BACKING RING

$

$

Not available

4

Snapper 2108201SM

SPACER

$19.99

$

In Stock, only 2 left!

0

5

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

6

Simplicity 2108139

FLINGER

$

$

Not available

7

Simplicity 2108181

WASHER

$

$

Not available

8

Simplicity 2108257SM

WASHER

$6.99

$

In Stock, only 2 left!

0

9

Simplicity 2108472

WASHER

$

$

Not available

10

Simplicity 2177005SM

PULLEY

$48.99

$

In Stock, only 1 left!

0

11

Simplicity 2813958

FITTING, Grease

$

$

Not available

12

Simplicity 2818312SM

KEY, Woodruff, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 2108436SM

SPACER

$13.99

$

In Stock, only 1 left!

0

14

Simplicity 2108250SM

ARBOR ASSY, Outer

$115.99

$

In Stock, only 1 left!

0

15

Simplicity 1685004SM

ARBOR ASSY, Center

$

$

Not available

16

Simplicity 2822133

NUT, Full Hex Lock, 3/4-16

$

$

Not available

17

Simplicity 1651404SM

HUB, Pulley

$37.99

$

In Stock, Qty 5

0

18

Simplicity 2157332

KEY

$

$

Not available

19

Simplicity 2108361

BAFFLE

$

$

Not available

20

Simplicity 2822110

CARRAIGE BOLT, 3/8-16 x 3/4

$

$

Not available

21

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

22

Simplicity 2816950SM

NUT, Hex Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

23

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

24

Simplicity 2822125

SCREW, Self-Tapping, 1/4-20 x 7/8

$

$

Not available

25

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

26

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

27

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

28

Simplicity 2816622SM

NUT, Hex Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

29

Simplicity 2108224ASM

BRACKET, L.H. Roller

$59.99

$

In Stock, only 3 left!

0

30

Simplicity 2823346

CARRIAGE BOLT., 5/16-18 x 3/4

$

$

Not available

31

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 2156131SM

STUD

$

$

Not available

34

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

35

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

36

Simplicity 1651499

BRACKET, L.H.

$

$

Not available

37

Simplicity 1651500SM

BRACKET, R.H.

$

$

Not available

38

Simplicity 1650533SM

BEARING & TUBE ASSY

$237.99

$

Usually ships in 2-12 days

0

39

Simplicity 176719

DECAL, Danger

$

$

Not available

40

Simplicity 1767201

DECAL, Caution

$

$

Not available

41

Simplicity 2103229

ARBOR KIT, Side

$

$

Not available

42

Simplicity 2103233

ARBOR KIT, Center

$

$

Not available
