1690253 - Simplicity 21" Self-Propelled Mower Self Propelled Parts Diagram

21" Self-Propelled Mower

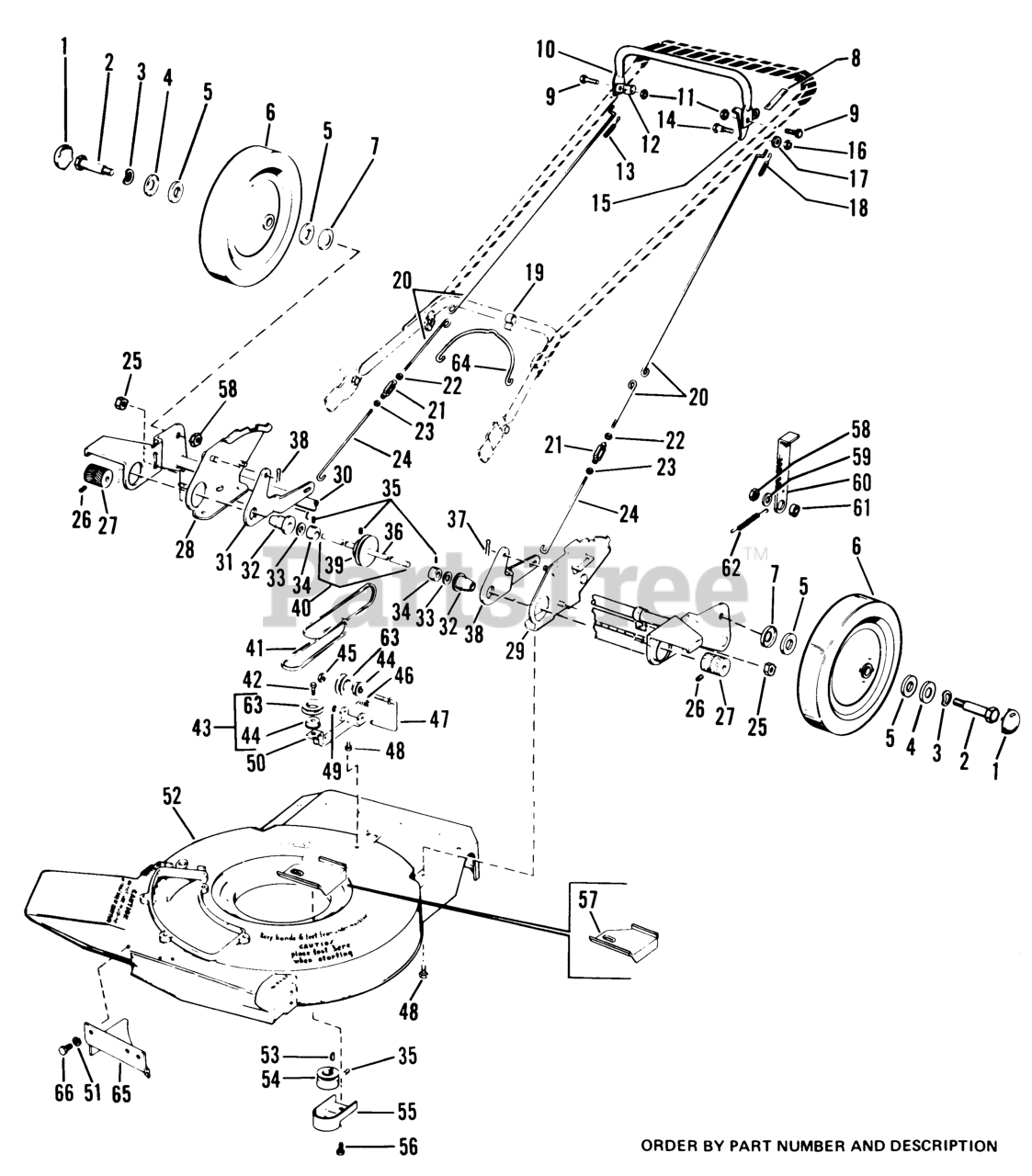

Self Propelled Parts Diagram

  • Title

1

Simplicity 108783

CAP, Hub

$

$

Not available

2

Simplicity 2108765SM

BOLT, Rear Wheel

$6.49

$

In Stock, Qty 20+

0

3

Simplicity 2170157SM

WASHER, Spring

Note: Mfg. No. 990857, 990858, 1690132, 1690133

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 108712

WASHER, Spring

$

$

Not available

4

Simplicity 108820

HOUSING, Seal

$

$

Not available

5

Simplicity 1609088

SEAL, Housing (Mfg. No. 1690132 Only)

$

$

Not available

5

Simplicity 108819

SEAL, Housing

$

$

Not available

6

Simplicity 108701

WHEEL, 10" Rear

$

$

Not available

7

Simplicity 108827

HOUSING, Seal

$

$

Not available

8

Simplicity 1608221

FILM, Handle

$

$

Not available

9

Simplicity 108734

BOLT, Shoulder, Handle

$

$

Not available

10

Simplicity 1653323

HANDLE (Assy. 1653231)

$

$

Not available

11

Simplicity 2828698

LOCKNUT, Full Hex, Jam, 5/16-18

$

$

Not available

12

Simplicity 108756

ANCHOR, Engaging Rod, R.H. (Assy. 1653231)

$

$

Not available

13

Simplicity 108776

SPRING, Rod Ret. R.H.

$

$

Not available

14

Simplicity 108757

STOP, handle

$

$

Not available

15

Simplicity 108755

ANCHOR, Engaging rod, L.H. (Assy 1653231)

$

$

Not available

16

Simplicity 2829001

LOCKNUT, Flange, 5/16-18

$

$

Not available

17

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

18

Simplicity 108791

SPRING, Rod ret. L.H.

$

$

Not available

19

Simplicity 2108812

CLAMP

$

$

Not available

20

Simplicity 108670

ROD, Engaging Upper

$

$

Not available

21

Simplicity 2108775SM

TURNBUCKLE

$

$

Not available

22

Simplicity 2828704SM

NUT, Full Hex, No. 10-24, L.H. Thread

$5.99

$

In Stock, only 2 left!

0

23

Simplicity 2816621

NUT, Hex Full, No. 10-24

$

$

Not available

24

Simplicity 108669

ROD, Engaging Lower

$

$

Not available

25

Simplicity 2829001

LOCKNUT, Flange, 5/16-18

$

$

Not available

26

Simplicity 2828734

SETSCREW, 5/16-18 x 1/4

$

$

Not available

27

Simplicity 108664

DRIVER, Wheel

$

$

Not available

28

Simplicity 171893

BRACKET ASSY, R.H.

$

$

Not available

29

Simplicity 171891

BRACKET ASSY, L.H.

$

$

Not available

Simplicity 108635

BRACKET ASSY, L.H.

$

$

Not available

30

Simplicity 176115

PLATE & TUBE ASSY, Manual 176116 E.S.

$

$

Not available

31

Simplicity 108630

BELLCRANK, R.H.

$

$

Not available

32

Simplicity 108667

BEARING & RETAINER ASSY

$

$

Not available

33

Simplicity 108696

SEAL, Grease

$

$

Not available

34

Simplicity 1729282SM

COLLAR, Set

$16.99

$

Usually ships in 2-12 days

0

35

Simplicity 2828734

SETSCREW, 5/16-18 x 1/4

$

$

Not available

36

Simplicity 108666

SHAFT, Drive Wheel

$

$

Not available

37

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

$

$

Not available

38

Simplicity 108736

BELLCRANK, L.H.

$

$

Not available

39

Simplicity 108688

PULLEY, Drive

$

$

Not available

40

Simplicity 108823

SHAFT & PULLEY ASSY

$

$

Not available

41

Simplicity 2108732SM

BELT, Drive

$20.99

$

Usually ships in 2-12 days

0

42

Simplicity 2829783

SCREW, Thd. Forming, 1/4-20 x 1

$

$

Not available

43

Simplicity 2108730SM

PULLEY ASSY, Idler

$24.99

$

Usually ships in 2-12 days

0

44

Simplicity 2108730SM

BEARING, Idler

$24.99

$

Usually ships in 2-12 days

0

45

Simplicity 2830642

LOCKNUT, Flange, 1/4-20

$

$

Not available

46

Simplicity 2108729SM

SPRING, Torsion, Idler

$17.99

$

Usually ships in 2-12 days

0

47

Simplicity 108693

U-BOLT, Idler

$

$

Not available

48

Simplicity 2827428

SCREW, Thd. Forming, 1/4-20 x 3/8

$

$

Not available

49

Simplicity 108698

RING, "E" Type

$

$

Not available

50

Simplicity 108694

BRACKET, Idler Support

$

$

Not available

51

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

Note: Mfg. No. 990857, 990858, 1690132, 1690133

$3.99

$

In Stock, only 2 left!

0

52

Simplicity 176069

HOUSING, 21"

Note: Mfg. No. 990857, 990858, 1690132, 1690133

$

$

Not available

52

Simplicity 170013

HOUSING, 21"

$

$

Not available

53

Simplicity 2805121SM

KEY, Woodruff, #5, 1/8 x 5/8

$2.99

$

In Stock, only 1 left!

0

54

Simplicity 108689

PULLEY, Engine

$

$

Not available

55

Simplicity 108703

COVER, Drive Lower

$

$

Not available

56

Simplicity 928695

SCREW, Cover #12-24 x 1/2

$

$

Not available

57

Simplicity 108841

DEFLECTOR, Oil

$

$

Not available

58

Simplicity 2823428

LOCKNUT, Full Hex, 3/8-16

$

$

Not available

59

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

60

Simplicity 108638

ADJUSTER, Height Rear

$

$

Not available

61

Simplicity 105184

SPACER, Height Adj.

$

$

Not available

62

Simplicity 170264

SPRING, Height Adj.

$

$

Not available

63

Simplicity 2108730SM

PULLEY, Idler

$24.99

$

Usually ships in 2-12 days

0

64

Simplicity 108838

SPRING, Rod

$

$

Not available

65

Simplicity 175703

GUARD ASSY, Stone

Note: Mfg. No. 990857, 990858, 1690132, 1690133

$

$

Not available

66

Simplicity 2808295

CAPSCREW, Hex 1/4-20 x 1/2

Note: Mfg. No. 990857, 990858, 1690132, 1690133

$

$

Not available
