1690269 - Simplicity 36" Mower Deck 36" Rollers & Misc. Group Parts Diagram

36" Mower Deck

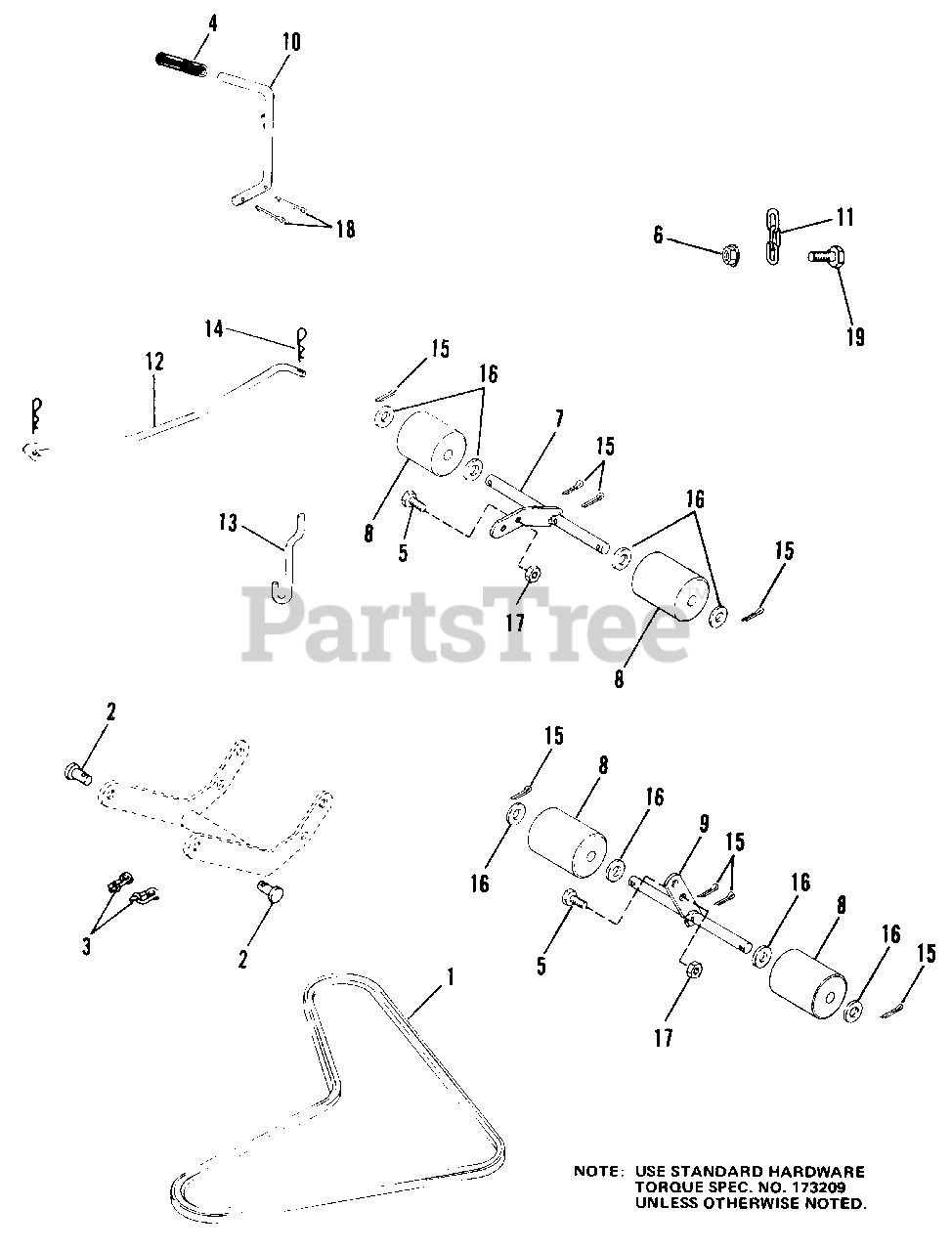

36" Rollers & Misc. Group Parts Diagram

  • Title

1

Simplicity 2108505

V-BELT
(Superseded to 1727773SM)

$34.99

$

In Stock, Qty 8

0

2

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 20+

0

3

Simplicity 2176012SM

CLIP, Safety Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 2176933SM

HANDLE, Grip

$3.49

$

In Stock, only 1 left!

0

5

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

6

Simplicity 629001

NUT, Flange, 3/8-16

$

$

Not available

7

Simplicity 1655097

SHAFT ASSY, R.H. Roller

$

$

Not available

8

Simplicity 1668487SM

ROLLER

$9.99

$

In Stock, Qty 20+

0

9

Simplicity 1655099

SHAFT ASSY, L.H. Roller

$

$

Not available

10

Simplicity 1656412SM

ROD, Control

$84.99

$

Usually ships in 2-12 days

0

11

Simplicity 1656835A

CHAIN, Lift

$

$

Not available

12

Simplicity 1656999

ROD

$

$

Not available

13

Simplicity 1685219SM

ROD, Lift

$110.99

$

Usually ships in 2-12 days

0

14

Simplicity 2106787

CLIP, Spring (Serviced in 5 pk)

$

$

Not available

15

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

16

Simplicity 2819387

WASHER, Plain, 5/16

$

$

Not available

17

Simplicity 2823428

LOCKNUT, Hex, 3/8-16

$

$

Not available

18

Simplicity 2818448

PIN, Cotter, 3/32 x 1

$

$

Not available

19

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available
