1690287 - Simplicity 38" Tiller Attachment 38" Tiller-Clutch & Drive Group Parts Diagram

38" Tiller Attachment

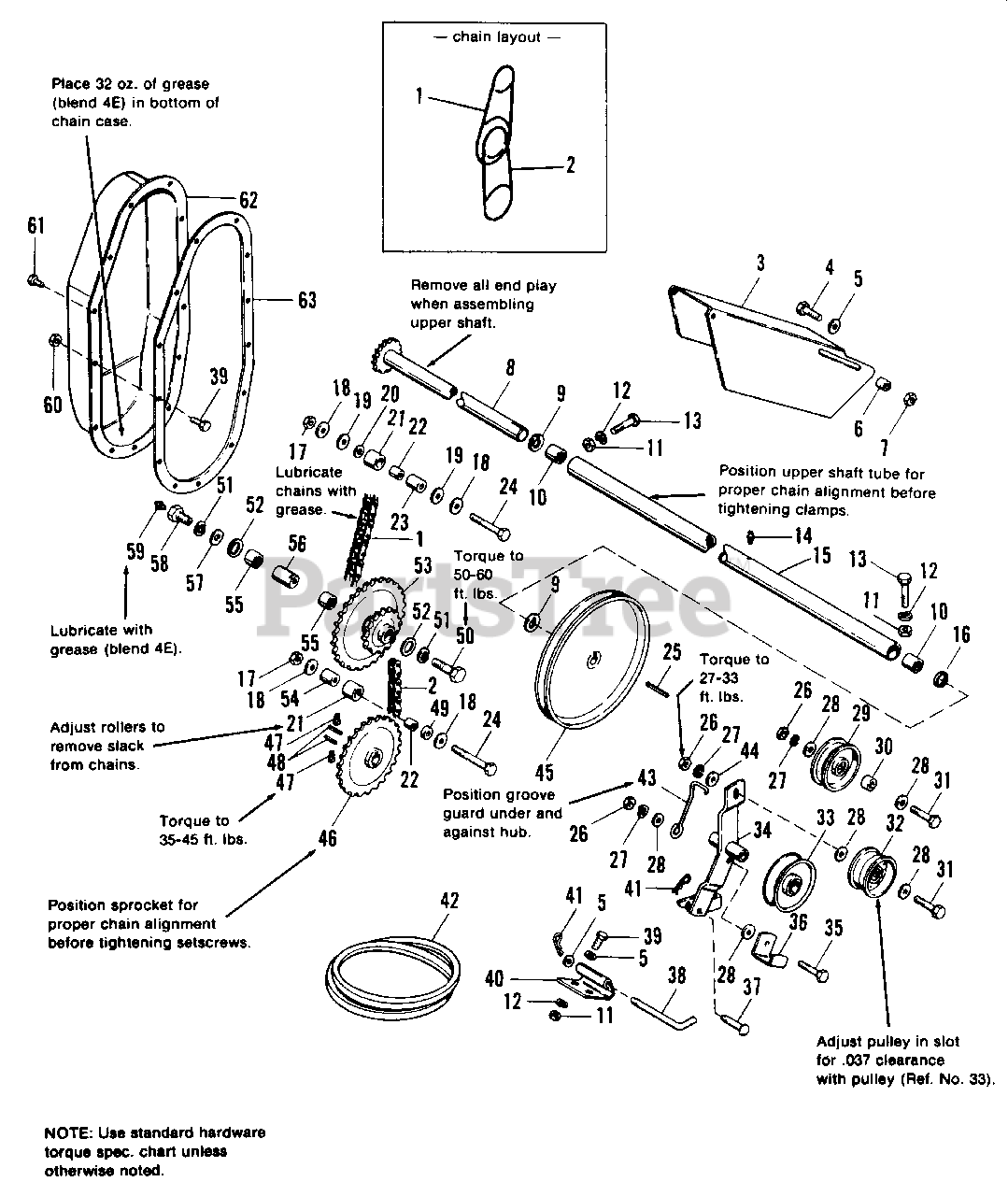

38" Tiller-Clutch & Drive Group Parts Diagram

  • Title

1

Simplicity 172496

CHAIN, Roller

$

$

Not available

2

Simplicity 2172497SM

CHAIN, Roller

$133.99

$

Usually ships in 2-12 days

0

3

Simplicity 1657560

GUARD, Belt

$

$

Not available

4

Simplicity 1921960SM

CAPSCREW, Hex Hd., 1/4-20 x 1
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 8

0

5

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1657929

SPACER

$

$

Not available

7

Simplicity 1923358SM

LOCKNUT, Hex, 1/4-20
(Superseded to 703954)

$5.49

$

In Stock, Qty 12

0

8

Simplicity 1657690

SHAFT ASSY.

$

$

Not available

9

Simplicity 1729259SM

WASHER

$6.49

$

In Stock, Qty 10

0

10

Simplicity 2172747SM

BEARING, Needle

$13.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1921221SM

CAPSCREW, Hex, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 3 left!

0

14

Simplicity 2814687

FITTING, Grease

$

$

Not available

15

Simplicity 1657394

HOUSING ASSY.

$

$

Not available

16

Simplicity 1669372SM

SEAL

$15.99

$

Usually ships in 2-12 days

0

17

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

18

Simplicity 1924356SM

WASHER, Special
(Superseded to 703591)

$5.49

$

In Stock, Qty 17

0

19

Simplicity 2170368

WASHER

$

$

Not available

20

Simplicity 2157424SM

WASHER, Special

$7.99

$

Usually ships in 2-12 days

0

21

Simplicity 2170177SM

ROLLER

$13.99

$

Usually ships in 2-12 days

0

22

Simplicity 2170369SM

SPACER

$

$

Not available

23

Simplicity 2172452SM

SPACER

$20.99

$

Usually ships in 2-12 days

0

24

Simplicity 1922648SM

CAPSCREW, Hex Hd., 3/8-16 x 4
(Superseded to 703875)

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

27

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

28

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

29

Simplicity 1685147SM

PULLEY, Idler

$77.99

$

Usually ships in 2-12 days

0

30

Simplicity 1666294SM

SPACER

$5.49

$

In Stock, Qty 13

0

31

Simplicity 1921969SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, Qty 6

0

32

Simplicity 1657712SM

PULLEY ASSY., Idler

$

$

Not available

33

Simplicity 2105380SM

PULLEY

$219.99

$

Usually ships in 2-12 days

0

34

Simplicity 1657777ASM

ARM ASSY., Idler

$

$

Not available

35

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

36

Simplicity 2105351SM

GUARD, Belt

$

$

Not available

37

Simplicity 2156306SM

PIN

$7.99

$

In Stock, only 4 left!

0

38

Simplicity 1657562SM

ROD, Pivot

$7.49

$

In Stock, only 1 left!

0

39

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

40

Simplicity 1657593

BRACKET, Guard Pivot

$

$

Not available

41

Simplicity 2106787

CLIP, Spring

$

$

Not available

42

Simplicity 1657517SM

BELT, "V", Drive

$115.99

$

Usually ships in 2-12 days

0

43

Simplicity 1657852

GUARD, Groove

$

$

Not available

44

Simplicity 2153052

WASHER

$

$

Not available

45

Simplicity 1657513

PULLEY

$

$

Not available

46

Simplicity 2172777SM

SPROCKET ASSY.

$284.99

$

Usually ships in 2-12 days

0

47

Simplicity 1930536SM

SETSCREW, Sq. Hd., 3/8-16 x 3/4

$

$

Not available

48

Simplicity 2172669SM

KEY

$

$

Not available

49

Simplicity 2172454SM

SPACER

$

$

Not available

50

Simplicity 1929528SM

CAPSCREW, Hex Hd., 1/2-20 x 1
(Superseded to 703880)

$4.49

$

In Stock, Qty 8

0

51

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

52

Simplicity 2860208SM

WASHER

$4.99

$

Usually ships in 2-12 days

0

53

Simplicity 2172744SM

SPROCKET ASSY.

$19.99

$

Usually ships in 2-12 days

0

54

Simplicity 2172453SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

55

Simplicity 2105195SM

BEARING

$35.99

$

In Stock, only 3 left!

0

56

Simplicity 2172456SM

SPACER

$

$

Not available

57

Simplicity 1918431SM

WASHER, 1/2
(Superseded to 704011)

$4.49

$

In Stock, Qty 10

0

58

Simplicity 2105132SM

BOLT, Side, R.H.

$

$

Not available

59

Simplicity 2814687

FITTING, Grease

$

$

Not available

60

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

61

Simplicity 1924856SM

SCREW, Hex Hd., 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 17

0

62

Simplicity 1657551

COVER ASSY.

$

$

Not available

63

Simplicity 2172482SM

GASKET

$66.99

$

Usually ships in 2-12 days

0
