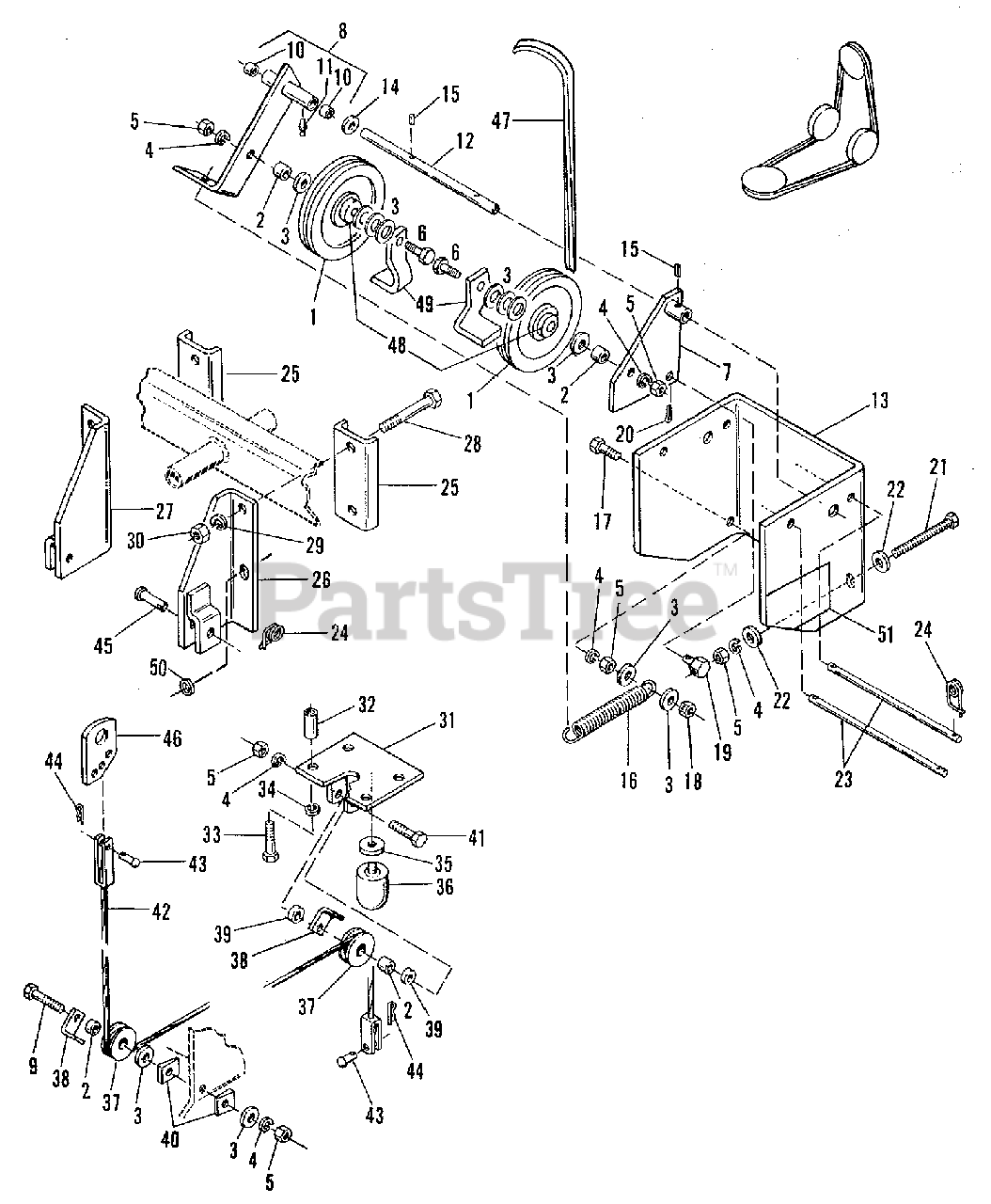

1690373 - Simplicity 60" Mower Deck, Center-Mounted Drive Hitch & Lift Assembly Group (3482I62) Parts Diagram

60" Mower Deck, Center-Mounted

Drive Hitch & Lift Assembly Group (3482I62) Parts Diagram

  • Title

1

Simplicity 1664974-1

PULLEY ASSEMBLY

$

$

Not available

1

Simplicity 1666292-6

BEARING

$

$

Not available

1

Simplicity 0927695-7

RING, Retaining

$

$

Not available

2

Simplicity 1665814-8

SPACER

$

$

Not available

3

Simplicity 0917378-2

WASHER, Plain, 3/8

$

$

Not available

4

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

5

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

6

Simplicity 0922130-0

CAPSCREW, Hex Head, 3/8NC x 2-1/4

$

$

Not available

7

Simplicity 1664665-5

ARM SUPPORT ASSEMBLY

$

$

Not available

8

Simplicity 1664776-0

ARM ASSEMBLY

$

$

Not available

9

Simplicity 0930583-0

CAPSCREW, Hex Head, 3/8NC x 2-1/4

$

$

Not available

10

Simplicity 2029343-7

BUSHING

$

$

Not available

11

Simplicity 0921133-5

FITTING, Lube, 1/4

$

$

Not available

12

Simplicity 1664659-8

SHAFT, Idler Support

$

$

Not available

13

Simplicity 1664667-1

SUPPORT, Idler

$

$

Not available

14

Simplicity 0919387-1

WASHER, Plain

$

$

Not available

15

Simplicity 0916001-1

PIN, Spring, 3/16

$

$

Not available

16

Simplicity 1664661-4

SPRING

$

$

Not available

17

Simplicity 0920415-7

CAPSCREW, Hex Head, 3/8NC x 1-1/4, Full Thread

$

$

Not available

18

Simplicity 0930651-5

NUT, Hex, Lock, 3/8NC

$

$

Not available

19

Simplicity 2087655-3

PIVOT

$

$

Not available

20

Simplicity 0918448-2

PIN, Cotter, 3/32 x 1

$

$

Not available

21

Simplicity 0933674-4

CAPSCREW, Hex Head, 3/8NC x 4-1/4

$

$

Not available

22

Simplicity 0924356-9

WASHER, Plain, 13/32 x 1-1/2 x 11 Ga.

$

$

Not available

23

Simplicity 1664670-5

PIN

$

$

Not available

24

Simplicity 2087544-9

CLIP, Safety Pin

$

$

Not available

25

Simplicity 1664666-3

BRACKET, Hitch

$

$

Not available

26

Simplicity 1664287-8

HITCH ASSEMBLY, Mower, R.H.

$

$

Not available

27

Simplicity 1664675-4

HITCH ASSEMBLY, Mower, L.H.

$

$

Not available

28

Simplicity 0926159-5

CAPSCREW, Hex Head, 1/2NC x 5, Gr. 8

$

$

Not available

28

Simplicity 0926158-7

CAPSCREW, 1/2NC x 4, Gr. 8

$

$

Not available

29

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

30

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

31

Simplicity 1664782-8

SUPPORT, Plate Assembly

$

$

Not available

32

Simplicity 2088027-4

SPACER

$

$

Not available

33

Simplicity 0950024-0

CAPSCREW, Hex Head, M8 x 60MM

$

$

Not available

34

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

35

Simplicity 2028572-2

WASHER, Special

$

$

Not available

36

Simplicity 1664315-7

STOP, Rubber

$

$

Not available

37

Simplicity 1665829-6

PULLEY

$

$

Not available

38

Simplicity 2087690-0

GUARD, Cable

$

$

Not available

39

Simplicity 2026580-7

WASHER, Special

$

$

Not available

40

Simplicity 2028483-2

WASHER, Special

$

$

Not available

41

Simplicity 0922606-9

CAPSCREW, 3/8NC x 1-3/4, Gr. 8

$

$

Not available

42

Simplicity 1664302-5

CABLE, Mower Lift

$

$

Not available

43

Simplicity 2025499-1

PIN

$

$

Not available

44

Simplicity 9002801-0

CLIP, Hairpin

$

$

Not available

45

Simplicity 2025406-6

PIN

$

$

Not available

46

Simplicity 1664777-8

BRACKET

$

$

Not available

47

Simplicity 1664644-0

V-BELT

$

$

Not available

47

Simplicity 1669471-3

V-BELT

$

$

Not available

48

Simplicity 1666294-2

SPACER

$

$

Not available

49

STOP, Lock

$

$

Not available

50

Simplicity 0918431-8

WASHER, Plain, USS 1/2

$

$

Not available

51

Simplicity 1664808-1

DECAL, Adjustment

$

$

Not available

52

Simplicity 1667837-7

DECAL, Caution

$

$

Not available

-

Simplicity 1685180-0

BELT STOP KIT

$

$

Not available
