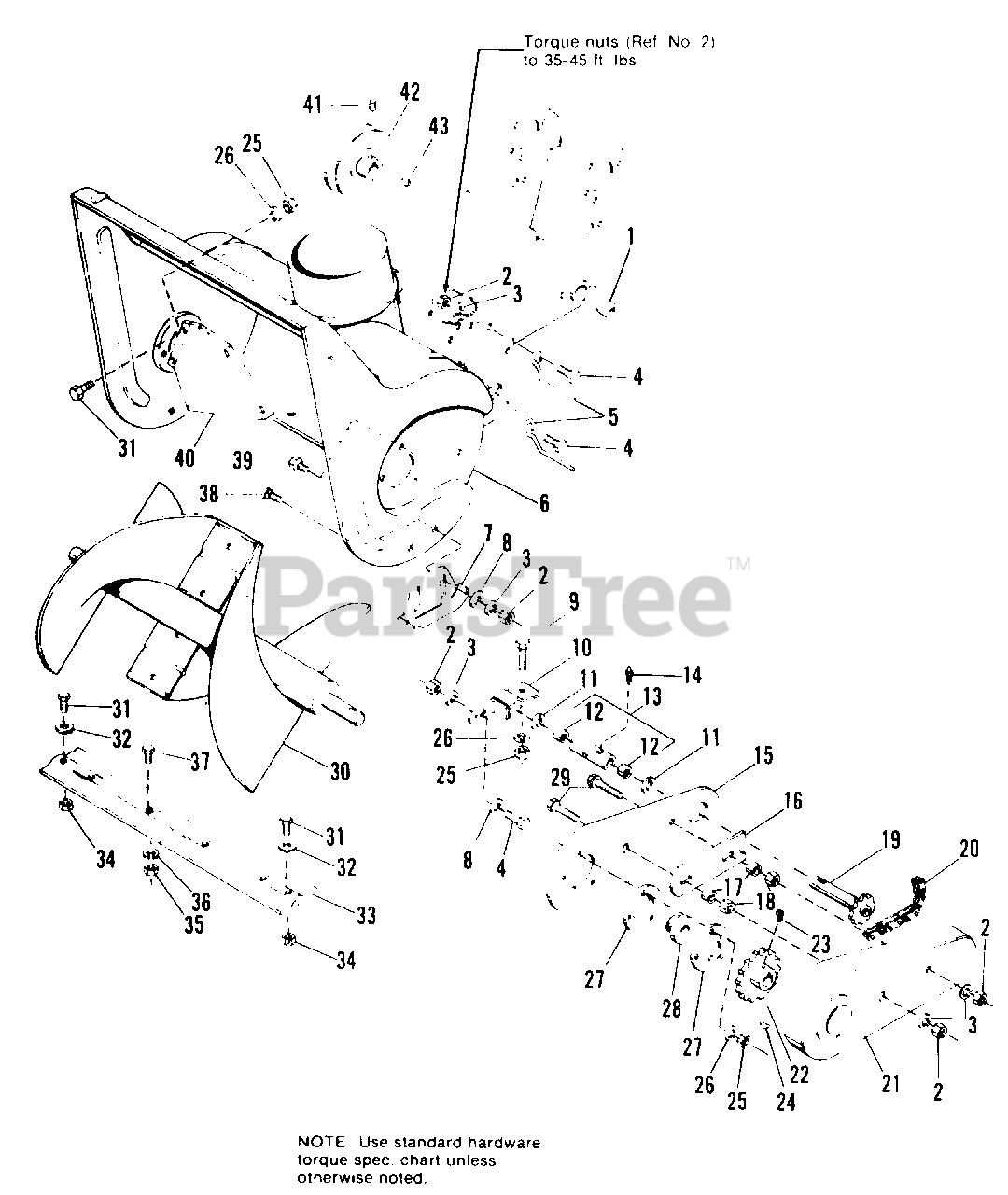

1690381 - Simplicity Snowbuster 21" Snow Thrower, 4hp Body & Rotor Group Parts Diagram

Snowbuster 21" Snow Thrower, 4hp

Body & Rotor Group Parts Diagram

  • Title

1

Simplicity 153089

BEARING

$

$

Not available

2

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

4

Simplicity 2821210

CAPSCREW, Hex 3/8-16 x 1

$

$

Not available

5

Simplicity 1606014

STOP, Belt

$

$

Not available

6

Simplicity 1657751

BODY ASSY., Frame

$

$

Not available

7

Simplicity 2177434C

SKID

$

$

Not available

8

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1922127SM

CAPSCREW, Hex, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

10

Simplicity 176161

CLAMP, Housing

$

$

Not available

11

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 11

0

12

Simplicity 2154258SM

BEARING

$26.99

$

In Stock, only 2 left!

0

13

Simplicity 1657872

HOUSING ASSY., Bearing

$

$

Not available

14

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 170754

PLATE, Side

$

$

Not available

16

Simplicity 1663108

SUPPORT

$

$

Not available

17

Simplicity 1663194

SPACER

$

$

Not available

18

Simplicity 2828352

NUT, Flange, Whizlock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

19

Simplicity 2106827SM

SHAFT ASSY.

$

$

Not available

20

Simplicity 106058

CHAIN

$

$

Not available

21

Simplicity 170865

GUARD, Chain

$

$

Not available

22

Simplicity 2106653SM

SPROCKET

$98.99

$

Usually ships in 2-12 days

0

23

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

24

Simplicity 2151040SM

KEY, Hi-Pro

$9.49

$

In Stock, only 2 left!

0

25

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 2161069

FLANGE, Bearing

$

$

Not available

28

Simplicity 1663347

BEARING, Cartridge

$

$

Not available

29

Simplicity 933254

SCREW, Flange, Whiz, 3/8-16 x 2-1/4

$

$

Not available

30

Simplicity 1663350

ROTOR ASSY.

$

$

Not available

31

Simplicity 2825205

CAPSCREW, Hex, 5/16-18 x 5/8

$

$

Not available

32

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

33

Simplicity 2106831SM

SCRAPER, Body

$

$

Not available

34

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

35

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

36

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

37

Simplicity 2821959

CAPSCREW, Hex, 1/4-20 x 5/8

$

$

Not available

38

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

39

Simplicity 2821332

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

40

Simplicity 2106774ASM

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

41

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

42

Simplicity 118470

PULLEY

$

$

Not available

43

Simplicity 2805123SM

KEY, Woodruff, #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 7

0
