1690387 - Simplicity 21" Walk-Behind Mower Model 1100 - 21" Mulching Mower Parts Diagram

21" Walk-Behind Mower

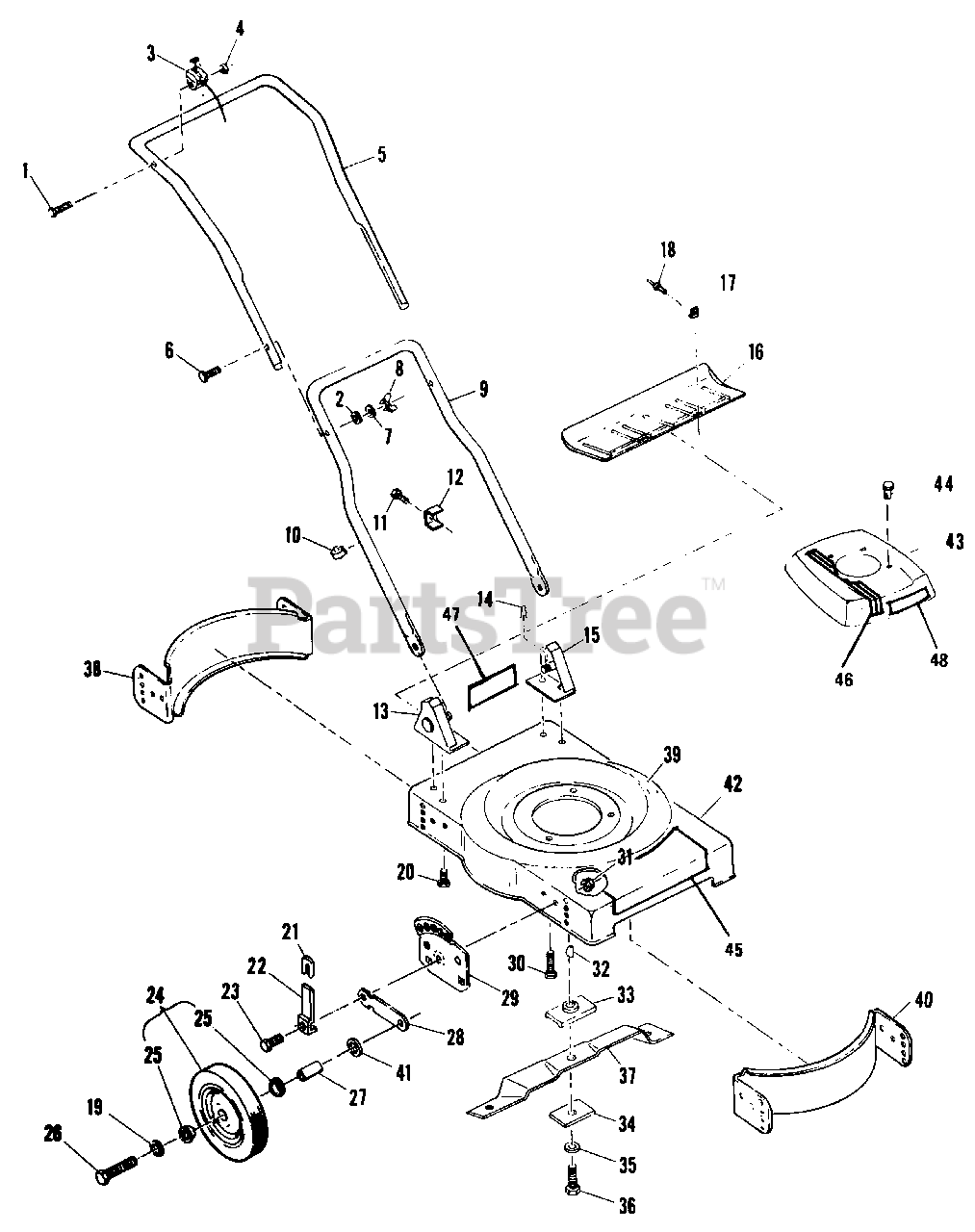

Model 1100 - 21" Mulching Mower Parts Diagram

  • Title

1

Simplicity 2822837

BOLT, Throttle

$

$

Not available

2

Simplicity 1717312SM

WASHER, Curved

$

$

Not available

3

Simplicity 1664054

CONTROL, Throttle

$

$

Not available

4

Simplicity 2823358

NUT, Throttle

$

$

Not available

5

Simplicity 1664049

HANDLE, Folding

$

$

Not available

6

Simplicity 108778

BOLT, Handle

$

$

Not available

7

Simplicity 2823300

WASHER

$

$

Not available

8

Simplicity 918468

NUT, Wing

$

$

Not available

9

Simplicity 1664051

YOKE

$

$

Not available

10

Simplicity 2108812

CLAMP, Throttle

$

$

Not available

11

Simplicity 1664068

SCREW, Casing

$

$

Not available

12

Simplicity 1664062

CLAMP, Casing

$

$

Not available

13

Simplicity 1664053

BRACKET ASSY, RH

$

$

Not available

14

Simplicity 1664063

CLIP, Hairpin

$

$

Not available

15

Simplicity 1664052

BRACKET ASSY, LH

$

$

Not available

16

Simplicity 1664056

TRAILGUARD

$

$

Not available

17

Simplicity 1664064

CLIP

$

$

Not available

18

Simplicity 924280

RIVET, Pop

$

$

Not available

19

Simplicity 2817642

WASHER, 3/8

$

$

Not available

20

Simplicity 2825391

BOLT, 1/4-20 x 5/8

$

$

Not available

21

Simplicity 1664084

TIP,

$

$

Not available

22

Simplicity 1664080

SPRING,

$

$

Not available

23

Simplicity 1664066

BOLT, Shoulder,

$

$

Not available

24

Simplicity 1677785SM

WHEEL ASSY, W/Bearing 8"

$

$

Not available

25

Simplicity 1664197

BEARING, Wheel

$

$

Not available

26

Simplicity 1922130SM

BOLT, Axle
(Superseded to 703872)

$4.99

$

In Stock, Qty 8

0

27

Simplicity 1664075

SPACER, Wheel

$

$

Not available

28

Simplicity 1664081

ARM,

$

$

Not available

29

Simplicity 1664059

PLATE, Wheel Adj.

$

$

Not available

30

Simplicity 2827187SM

SCREW, Engine
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

31

Simplicity 2823428

NUT, Baffle

$

$

Not available

32

Simplicity 2810224SM

KEY, Engine Shaft

$3.99

$

Usually ships in 2-12 days

0

33

Simplicity 1664061

ADAPTER ASSY, Blade

$

$

Not available

34

Simplicity 1664074

SPACER, Blade Adapter

$

$

Not available

35

Simplicity 1916965SM

WASHER, Blade
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

36

Simplicity 2827008SM

BOLT, Blade

$2.99

$

Usually ships in 2-12 days

0

37

Simplicity 1664062

BLADE

$

$

Not available

38

Simplicity 1664198

BAFFLE, Rear

$

$

Not available

39

Simplicity 1664078

DECAL, Instructional

$

$

Not available

40

Simplicity 1664073

BAFFLE, Front

$

$

Not available

41

Simplicity 2817642

WASHER, Cupped

$

$

Not available

42

Simplicity 1664045

HOUSING

$

$

Not available

43

Simplicity 1664082

SHROUD

$

$

Not available

44

Simplicity 928690

SCREW, Shroud

$

$

Not available

45

Simplicity 1722551SM

DECAL, Deck, Simplicity

$11.99

$

In Stock, only 2 left!

0

46

Simplicity 1663836

DECAL, Stripe

$

$

Not available

47

Simplicity 106719

DECAL, Simplicity 6"

$

$

Not available

48

Simplicity 1663833

DECAL, Mulcher 21"

$

$

Not available
