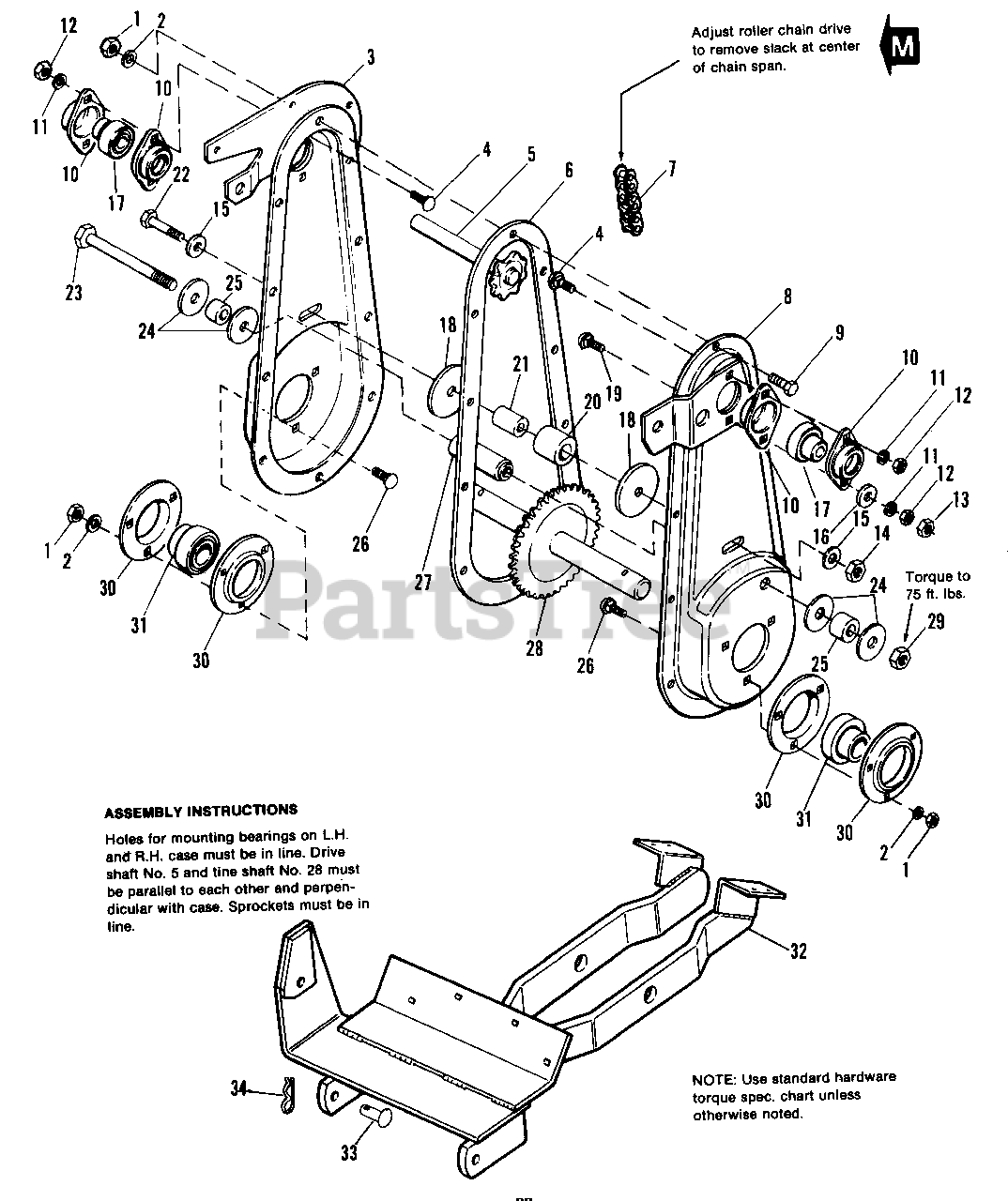

1690393 - Simplicity 30" Rotary Tiller Attachment Case Group Parts Diagram

30" Rotary Tiller Attachment

Case Group Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1655824

CASE ASSY., Half, R.H.

$

$

Not available

4

Simplicity 2831317

BOLT, Carriage, 1/4-20 x 3/4

$

$

Not available

5

Simplicity 1655827

SHAFT ASSY., Drive

$

$

Not available

6

Simplicity 2170022

GASKET, Case

$

$

Not available

7

Simplicity 170053

CHAIN, Drive

$

$

Not available

8

Simplicity 1655830

CASE ASSY., Half, L.H.

$

$

Not available

9

Simplicity 2825205

CAPSCREW, Hex, 5/16-18 x 5/8

$

$

Not available

10

Simplicity 1655814

FLANGE, Bearing

$

$

Not available

11

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

12

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

13

Simplicity 2823358

LOCKNUT, Full, Hex, 1/4-20

$

$

Not available

14

Simplicity 1930645SM

LOCKNUT, Hex, Full, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

16

Simplicity 2817377

WASHER, Flat, 1/4

$

$

Not available

17

Simplicity 1656089SM

BEARING

$56.99

$

Usually ships in 2-12 days

0

18

Snapper 2860188SM

WASHER

$45.99

$

In Stock, only 1 left!

0

19

Simplicity 2831320

BOLT, Carriage, 1/4-20 x 1-1/4

$

$

Not available

20

Simplicity 2170177SM

ROLLER

$9.49

$

Usually ships in 2-12 days

0

21

Simplicity 2170369SM

SPACER

$

$

Not available

22

Simplicity 2822130

CAPSCREW, Hex, 3/8-16 x 2-1/4

$

$

Not available

23

Simplicity 2820272

CAPSCREW, Hex, 1/2-13 x 5

$

$

Not available

24

Snapper 2860154SM

WASHER

$7.99

$

Usually ships in 2-12 days

0

25

Simplicity 2105386SM

SPACER

$31.99

$

Usually ships in 2-12 days

0

26

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

27

Simplicity 170029

SPACER, Case

$

$

Not available

28

Simplicity 170030

SHAFT ASSY., Tine

$

$

Not available

29

Simplicity 2822134

LOCKNUT, Hex, Full, 1/2-13

$

$

Not available

30

Simplicity 2172278ASM

BEARING, Flange

$11.99

$

In Stock, only 2 left!

0

31

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

32

Simplicity 1665512

FRAME & HITCH ASSY.

$

$

Not available

33

Simplicity 2155037SM

PIN

$12.99

$

In Stock, only 1 left!

0

34

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 5

0
