1690402 - Simplicity Frame-Mounted Vacuum Collector Frame Mounted Vacuum Collector Parts Diagram

Frame-Mounted Vacuum Collector

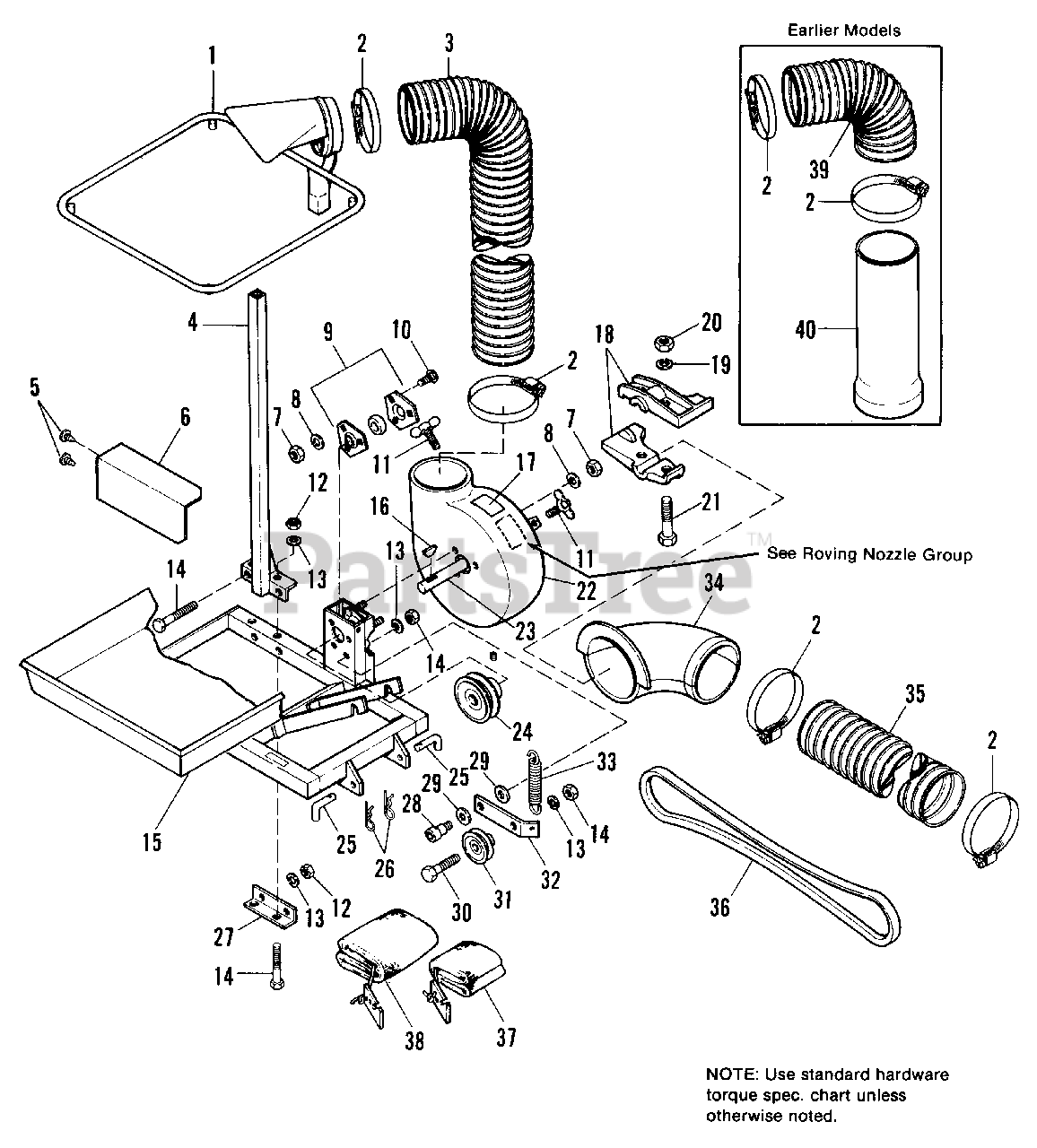

Frame Mounted Vacuum Collector Parts Diagram

  • Title

1

Simplicity 1665658

SUPPORTING RING, Bag

$

$

Not available

2

Simplicity 921919

CLAMP, Hose

$

$

Not available

3

Simplicity 1678490SM

TUBE, Exhaust

$216.99

$

Usually ships in 2-12 days

0

4

Simplicity 1665657

UPRIGHT ASSY.

$

$

Not available

5

Simplicity 1960720SM

SCREW, Self-tapping, #10 x 1/2

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 1665659

GUARD, P.T.O. Pulley

$

$

Not available

7

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 2 left!

0

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1685479SM

BEARING & FLANGE ASSY.

$

$

Not available

10

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1960318SM

SCREW, Wing, 5/16-18 x 2

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, only 4 left!

0

13

Simplicity 1924940SM

LOCKWASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1921972SM

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2
(Superseded to 84007037)

$2.99

$

In Stock, only 2 left!

0

15

Simplicity 1665656

TRAY ASSY.

$

$

Not available

16

Simplicity 911171

KEY, Woodruff, #11, 3/16 x 7/8

$

$

Not available

17

Simplicity 1665714

DECAL, Warning

$

$

Not available

18

Simplicity 1665665SM

BLADES, Blower (Pair)

$

$

Not available

19

Simplicity 1909589SM

LOCKWASHER, Internal Tooth, 1/2

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 1916951SM

NUT, Hex, Full, 1/2-13
(Superseded to 703340)

$8.49

$

In Stock, only 1 left!

0

21

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 1665660

HOUSING, blower

$

$

Not available

23

Simplicity 1665661

SHAFT, Blower

$

$

Not available

24

Simplicity 1665664SM

PULLEY, Blower

$176.99

$

Usually ships in 2-12 days

0

25

Simplicity 1665667

CLEVIS, Mount

$

$

Not available

26

Simplicity 1960033SM

CLIPS, Hairpin

$3.49

$

In Stock, Qty 17

0

27

Simplicity 1665676

ANGLE, Reinforcement

$

$

Not available

28

Simplicity 927538

SCREW, Shoulder, Hex Socket Hd., 1/2 x 1/2

$

$

Not available

29

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 9

0

31

Simplicity 1665668SM

PULLEY, Idler

$

$

Not available

32

Simplicity 1665663

ARM, Tension (Idler)

$

$

Not available

33

Simplicity 1665669

SPRING, Tension

$

$

Not available

34

Simplicity 1665670

ELBOW, Blower

$

$

Not available

35

Simplicity 1657189SM

HOSE, Lower, 7" x 45"

$376.99

$

Usually ships in 2-12 days

0

36

Simplicity 2170164SM

BELT, Drive

$53.99

$

In Stock, only 2 left!

0

37

Simplicity 1665674SM

TOP, Canvas Bag

$233.99

$

Usually ships in 2-12 days

0

38

Simplicity 1665673SM

BAG, Canvas

$

$

Not available

39

Simplicity 1678490SM

HOSE, Upper (For earlier models)

$216.99

$

Usually ships in 2-12 days

0

40

Simplicity 1665715

TUBE, Exhaust (For earlier models)

$

$

Not available
