1690404 - Simplicity Rear Lift Kit Rear Lift Kit Parts Diagram

Rear Lift Kit

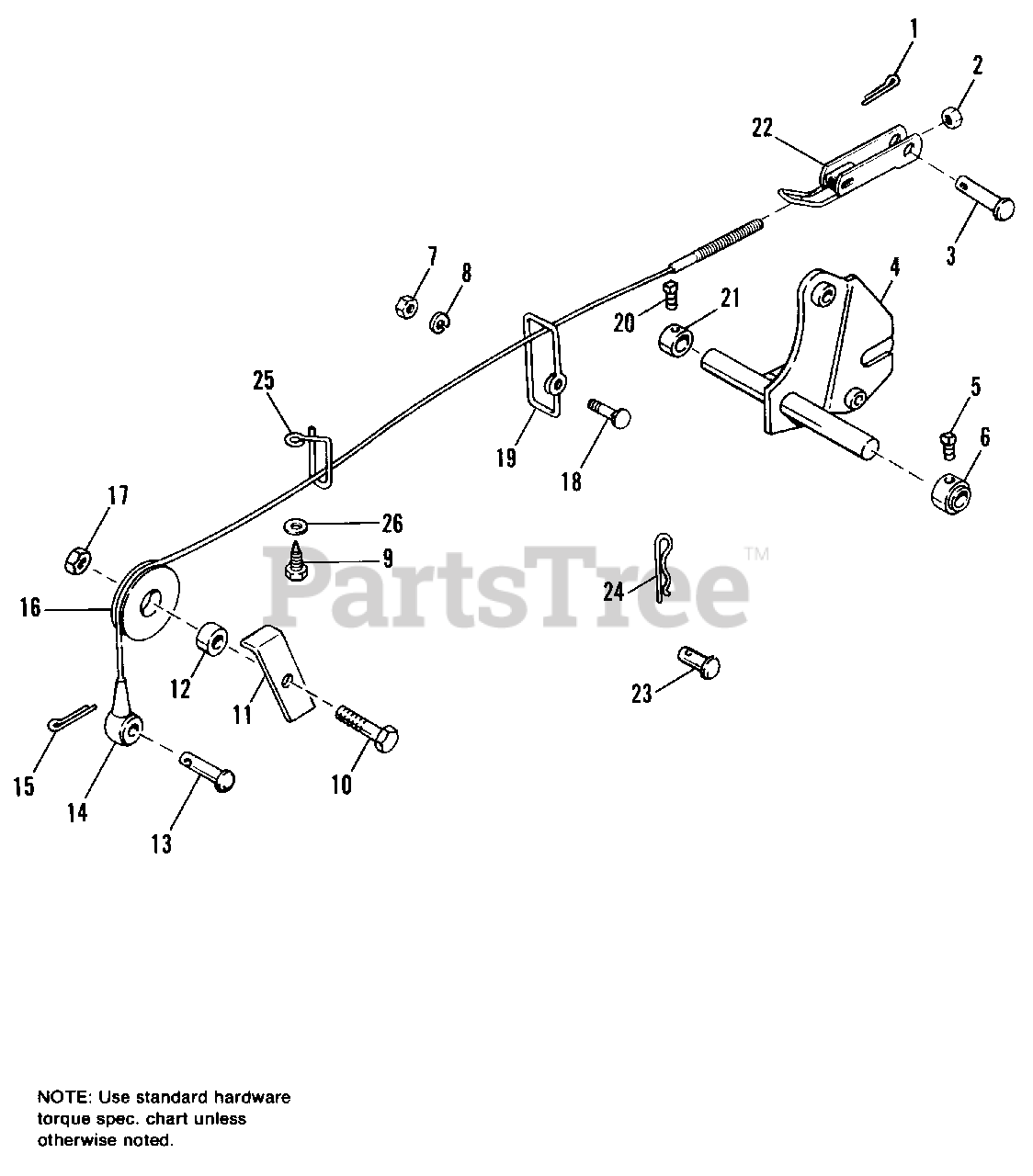

Rear Lift Kit Parts Diagram

  • Title

1

Simplicity 1918452SM

COTTER PIN, 1/8 x 1
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

2

Simplicity 1918403SM

LOCKNUT, Hex, Jam, 3/8-24
(Superseded to 7090482SM)

$4.49

$

In Stock, only 4 left!

0

3

Simplicity 2102004SM

PIN, Pivot

$9.49

$

In Stock, only 3 left!

0

4

Simplicity 1608761SM

LEVER ASSY., Lift

$

$

Not available

5

Simplicity 1930540SM

SETSCREW, Sq. Hd., 5/16-18 x 5/8

$4.49

$

In Stock, Qty 11

0

6

Simplicity 2157695SM

COLLAR, Set

$87.99

$

Usually ships in 2-12 days

0

7

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1930562SM

SCREW, Hex Hd., Thread Forming Gimlet Pt., #14 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

11

Simplicity 2174723SM

GUARD, Cable

$

$

Not available

12

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 13

0

13

Simplicity 1729019SM

PIN
(Superseded to 703982)

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 1657563SM

CABLE ASSY., Lift

$

$

Not available

15

Simplicity 1918447SM

COTTER PIN, 3/32 x 1
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 2172725SM

PULLEY

$48.99

$

Usually ships in 2-12 days

0

17

Simplicity 1928731SM

LOCKNUT, Hex, Jam, 3/8-16

$4.99

$

In Stock, only 1 left!

0

18

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

19

Simplicity 1673564SM

GUIDE, Cable

$

$

Not available

20

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, Qty 13

0

21

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

22

Simplicity 1657564ASM

CLEVIS ASSY., Lift

$44.99

$

Usually ships in 2-12 days

0

23

Simplicity 1708298SM

PIN

$

$

Not available

24

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

25

Simplicity 1671603SM

RETAINER, Cable

$

$

Not available

26

Simplicity 1921319SM

WASHER, Plain
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0
