1690413 - Simplicity 48" Mower Deck Height Adjusting & Roller Group (42" & 48" Mower) Parts Diagram

48" Mower Deck

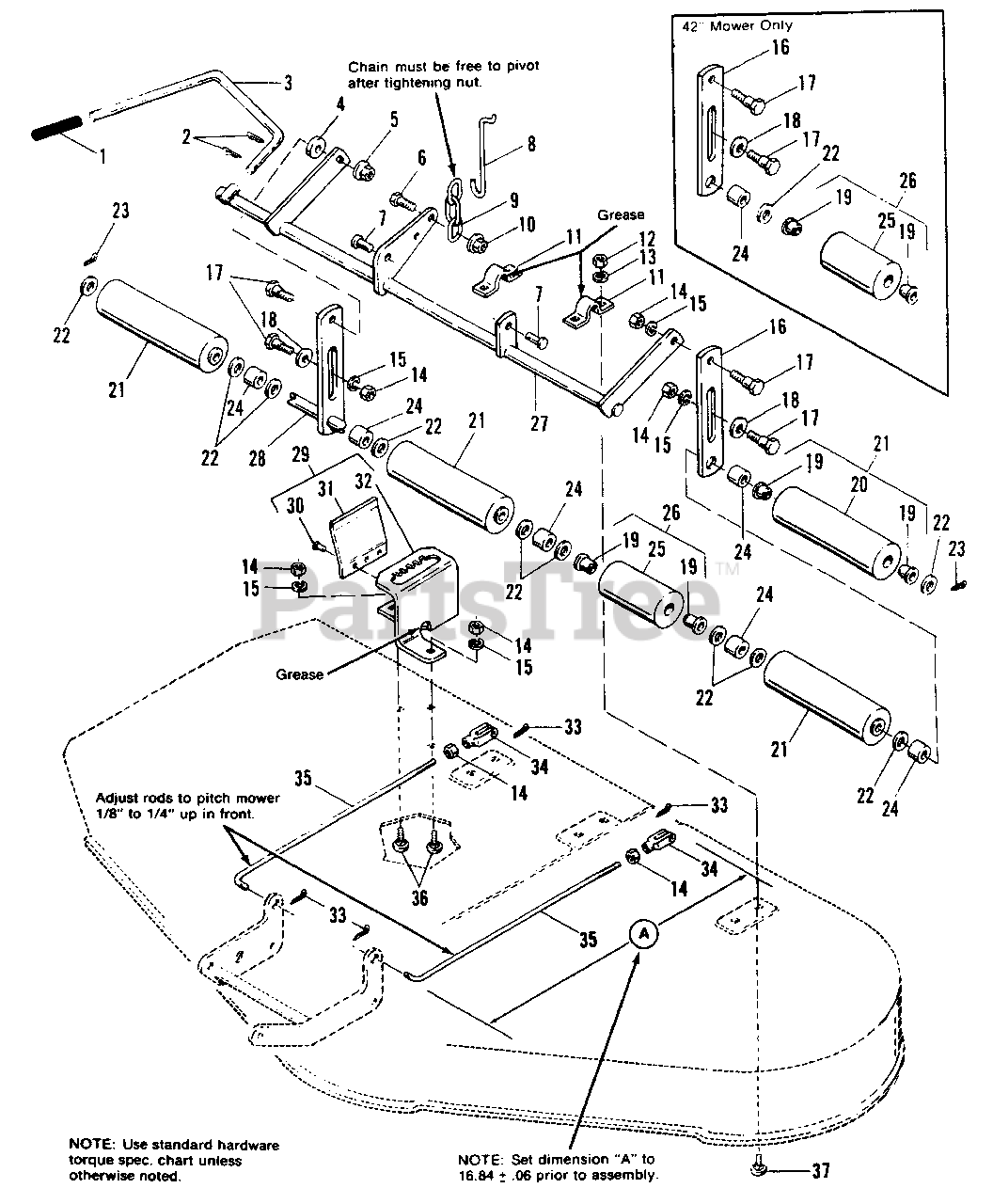

Height Adjusting & Roller Group (42" & 48" Mower) Parts Diagram

  • Title

1

Simplicity 2176933SM

GRIP

$3.49

$

In Stock, only 1 left!

0

2

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

3

Simplicity 1656412SM

LEVER, Control

$84.99

$

Usually ships in 2-12 days

0

4

Simplicity 2822755

WASHER, Plain, 13/32
(Superseded to 704128)

$4.99

$

In Stock, Qty 7

0

5

Simplicity 2828352

LOCKNUT, Hex, Flange, Whiz, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

6

Simplicity 2821333

CAPSCREW, Hex, 5/16-18 x 1

$

$

Not available

7

Simplicity 2823087

PIN, Clevis

$

$

Not available

8

Simplicity 1685247SM

ROD, Lift

$45.99

$

Usually ships in 2-12 days

0

9

Simplicity 1656835A

LIFT, Chain

$

$

Not available

10

Simplicity 2829001

LOCKNUT, Flange, 5/16-18

$

$

Not available

11

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

In Stock, Qty 6

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

16

Simplicity 1603263SM

BAR, Roller
(Superseded to 1603263ASM)

$26.99

$

Usually ships in 2-12 days

0

17

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

18

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

19

Simplicity 2108419

BUSHING

$

$

Not available

20

ROLLER, Large (Qty. 3 on 42" Mower only) (See Ref. No. 21)

$

$

Not available

21

Simplicity 1608398SM

ROLLER ASSY, Large (Qty. 3 on 42" Mower only)

Note: Reference No. 21 includes Ref. No's. 19 & 20.

$37.99

$

Usually ships in 2-12 days

0

22

Simplicity 2819387

WASHER, 25/32 x 1-1/4

$

$

Not available

23

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

24

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 11

0

25

ROLLER, Small (Qty. 1 on 48" Mower only) (See Ref. No. 26)

$

$

Not available

26

Simplicity 1668513SM

ROLLER ASSY., Small (Qty. 1 on 48" Mower only)

Note: Reference No. 26 includes Ref. No's. 19 & 25.

$10.99

$

In Stock, Qty 20+

0

27

Simplicity 1665375

ARM ASSY, Mower

$

$

Not available

28

Simplicity 1607607SM

SHAFT ASSY., Roller (48" Mower only)

$

$

Not available

28

Simplicity 1668814SM

SHAFT ASSY., Roller (42" Mower only)
(Superseded to 1668814ASM)

$113.99

$

Usually ships in 2-12 days

0

29

Simplicity 1668828SM

QUADRANT ASSY.

$79.99

$

Usually ships in 2-12 days

0

30

Simplicity 2810542SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1663222SM

SPRING

$

$

Not available

32

Simplicity 1668828SM

QUADRANT

$79.99

$

Usually ships in 2-12 days

0

33

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

34

Simplicity 2108157SM

CLEVIS, Adj.

$24.99

$

Usually ships in 2-12 days

0

35

Simplicity 1665417SM

ROD, Adj.

$23.99

$

Usually ships in 2-12 days

0

36

Simplicity 2822110

BOLT, Carriage 3/8-16 x 3/4

$

$

Not available

37

Simplicity 2820562

BOLT, Carriage 5/16-18 x 3/4

$

$

Not available
